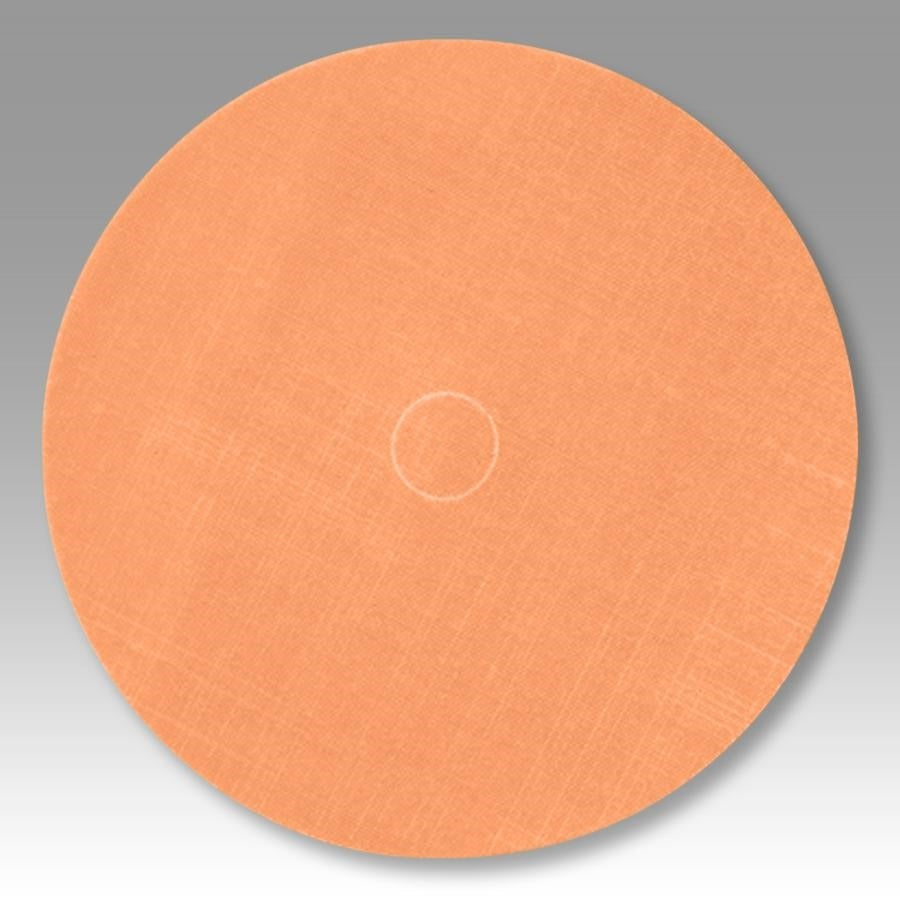

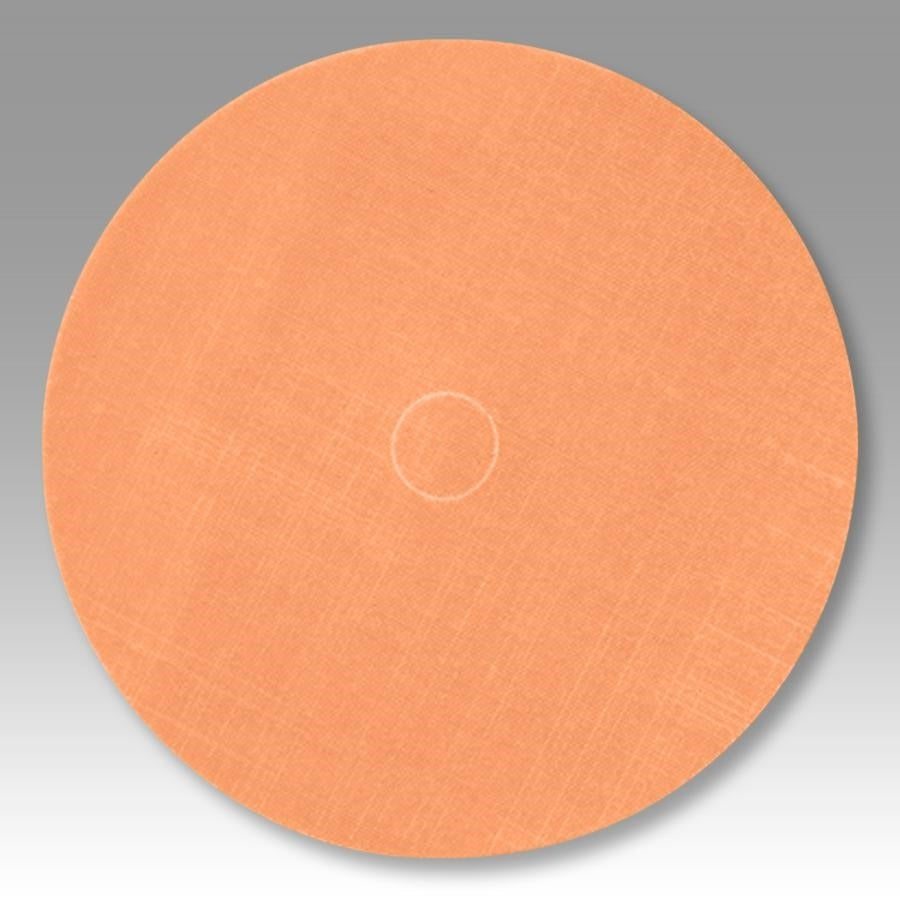

3M 7100031593 Psa Film Disc 268XA 5 Inch 12000 Rpm

Product Description

The 3M 7100031593 is a Trizact PSA Film Disc in the 268XA series, engineered for precision polishing and finishing work. It uses 3M microreplicated abrasive technology, which produces a fast, sustained cut rate and a consistent surface finish across the full life of the disc. The waterproof polyester film backing allows operation wet or dry, making it a versatile choice for multi-step finishing sequences. At a diameter of 5 inches and a maximum rated speed of 12000 RPM, it is sized for standard random orbital and disc sanders used by finishing professionals, fabricators, and skilled tradespeople.

This disc is suited for polishing and finishing applications on a range of substrates including glass, acrylic, composites, and painted surfaces. The pressure-sensitive adhesive (PSA) mount provides fast, secure attachment to PSA-compatible backing pads. It is commonly used in body shop finishing, optical component polishing, aerospace composite work, and precision surface preparation where consistent scratch patterns and controlled material removal are required. Discs in the 268XA series are color-coded by grade to simplify step identification during multi-step polishing sequences.

Key Features

• 3M microreplicated abrasive technology delivers fast, sustained cut with a consistent finish
• Waterproof polyester film backing supports wet or dry operation
• PSA mount allows quick, secure attachment and removal from compatible backing pads
• Color-coded by grade for easy step identification in multi-step finishing sequences
• Rated to 12000 RPM for use with standard disc sanders and random orbital tools
• Suitable for polishing and finishing on glass, acrylic, composites, and similar substrates

Compatibility

Designed for use with PSA-compatible backing pads accepting 5-inch coated abrasive film discs. Verify backing pad RPM rating meets or exceeds 12000 RPM before use.

Installation Notes

Installation and disc changes should be performed with the tool powered off and disconnected from its power source. Confirm the backing pad is clean and free of debris before applying the PSA disc to ensure full adhesive contact. Do not exceed the 12000 RPM maximum rated speed. Worn or glazed discs should be replaced promptly to maintain finish consistency and safe operation.

Technical Specifications

• Diameter: 5 inches
• Maximum Speed: 12000 RPM
• Abrasive Type: Aluminum Oxide (AO), Microreplicated
• Backing Material: Waterproof Polyester Film
• Attachment Type: Pressure-Sensitive Adhesive (PSA)
• Construction: Coated
• Weight: 2.026 pounds
• Package Dimensions: 8 inches x 8 inches x 9.6 inches
• Sold As: Each
• Minimum Order Quantity: 100
• UPC: 00051111500316

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100031593
