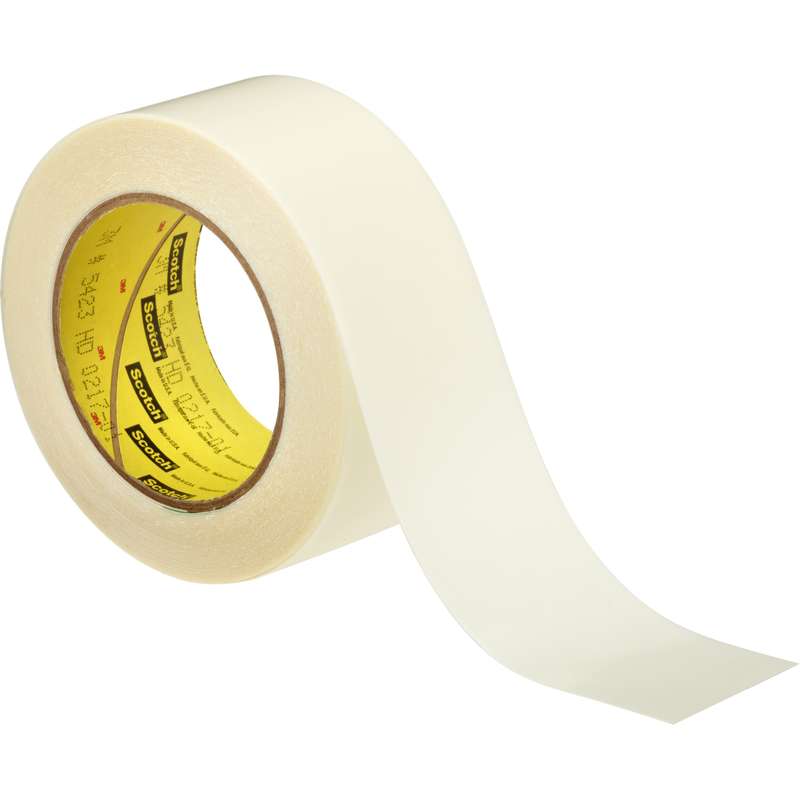

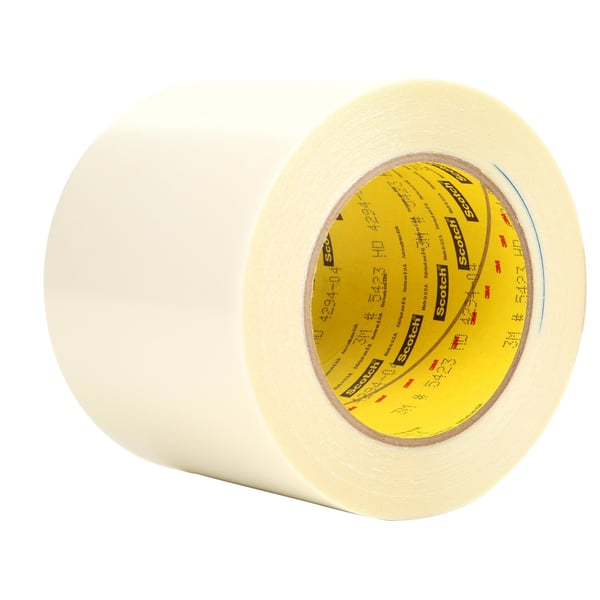

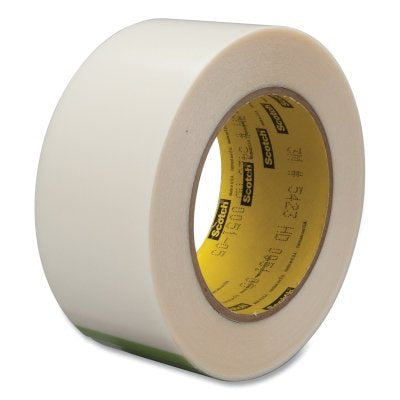

3M 7100030183 uhmw film tape 5423 6 inchesx 18yd

Product Description

The 3M 7100030183 UHMW Film Tape 5423 is transparent, measuring 6" x 18 yd. It features a translucent, 10.0 mil UHMW polyethylene backing with a rubber adhesive on a paper liner. This tape offers a low coefficient of friction combined with abrasion resistance, making it an effective solution for noise and vibration problems.

• Translucent, 10.0 mil UHMW polyethylene backing with a rubber adhesive on a paper liner.
• Thicker version of Tape 5421.
• Low coefficient of friction combined with abrasion resistance make this tape an effective solution for many noise and vibration problems.

Product Highlights

This tape is ideal for reducing wear on mechanical equipment, offering a unique combination of properties for tough impact, wear, and sliding applications.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100030183
• Country of Origin: US

Technical Specifications

• MPN: 7100030183
• ItemID: MMM2120073592
• UPCCode: 21200735929.0
• Manufacturer: 3M
• Brand: 3M
• UOM: Roll
• ProductCategory: Adhesives, Sealants & Tapes
• ProductSegment: Tapes
• ProductLine: Specialty Tapes
• Country: US
• Width: 6 in
• Length: 18yd
• Series: 5423
• Thickness: 12 mil
• Applications: Conveyor Flat Guide Rails, Spray Booth Liners, Discharge Chutes, Tank and Bin Liners, Doctor Blades, Drawer and Cabinet Slides, Former Noses, Feed and Grain Chutes, Protecting Aluminum Sheets on Stretch Forming Presses
• Product Type: Film Tape
• Primary Color: Clear
• Backing Material: Ultra-high molecular weight polyethylene
• Package Quantity: 2 RLS
• Tensile Strength: 55lb/in
• Adhesion Strength: 26oz/in
• Adhesive Material: Rubber
• Material Category: Plastic
• Elongation at Break: 300%
• Resistance Properties: Abrasion Resistant
• Maximum Operating Temperature: +225°F
• Minimum Operating Temperature: -30°F
• Elongation [Nom]: 520
• Temp. Range [Max]: 225°F
• Temp. Range [Min]: -30°F
• Temp. Range [Nom]: -30°F-225°F
• Type: Film Tape
• Thickness (mil): 11.7000
• Length Ft.: 55
• Tape Material: UHMW
• Tensile Strength (Lb./Inch): 55.00
• Application: Protecting; Lining
• Minimum Operating Temperature C: -34.44
• Maximum Operating Temperature C: 107.00
• Series Part Number: 5423
• UNSPSC Code: 31201500
• Country of Origin: UNITED STATES
• Width (Decimal Inch): 6.0000"
• Width (mm): 152.40mm
