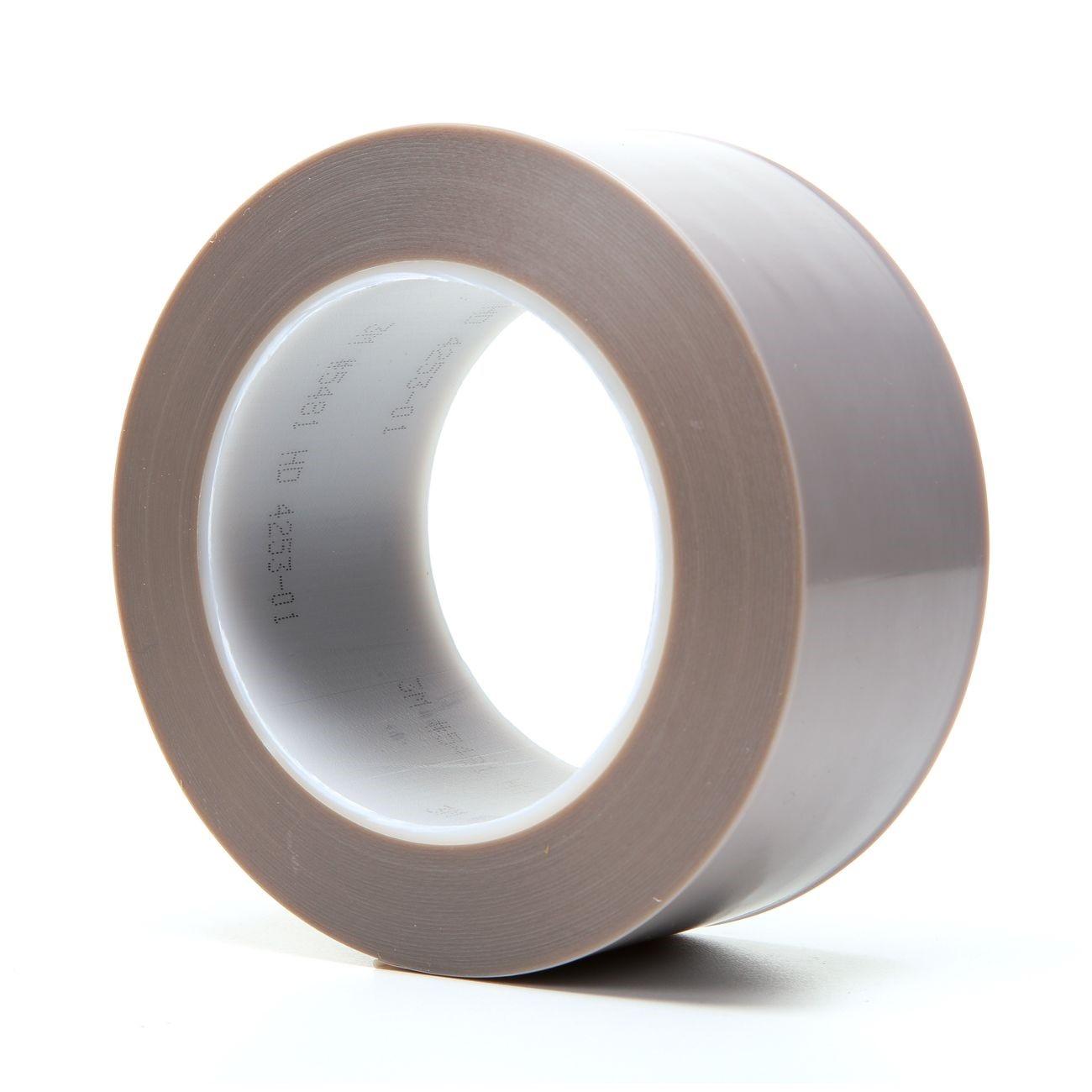

3M 7100029526 Ptfe Film Tape 5481 Gray 2in X 36yd 6.8 Mil

Product Description

The 3M 7100029526 is a heavy-duty PTFE film tape rated for high-temperature applications and bonded with a silicone adhesive backing. The tape measures 2 inches wide by 36 yards long at a total thickness of 6.8 mil. It features a skived PTFE film construction that is conformable, chemically resistant, and self-lubricating. These properties make it well suited for protecting surfaces from adhesive buildup, chemical exposure, and wear in demanding industrial environments. Maintenance technicians and manufacturing line operators are the primary installers of this tape in production settings.

This tape is primarily used in manufacturing and industrial applications where rollers, plates, and belts accumulate sticky materials or inks. Wrapping rollers with this tape reduces buildup and simplifies cleanup between production runs. It is also used for sealing or masking contoured surfaces that require protection from harsh chemicals or abrasion. Its conformable nature allows it to follow curved and irregular geometries without lifting or bunching, which is valuable in both wrap and mask applications across a wide range of industries.

Key Features

• Skived PTFE film construction provides self-lubricating and non-stick surface properties
• Silicone adhesive maintains bond integrity at elevated temperatures
• 6.8 mil total thickness delivers heavy-duty performance and durability
• Conformable film follows contoured and irregular surfaces
• Chemical resistance protects underlying surfaces from harsh industrial chemicals
• Minimizes roller and belt cleanup time in high-throughput manufacturing processes

Compatibility

Designed for use on rollers, plates, belts, and contoured surfaces in industrial and manufacturing environments where chemical resistance, non-stick properties, and high-temperature performance are required.

Installation Notes

Clean the target surface thoroughly and allow it to dry completely before application to ensure proper adhesion. When wrapping rollers or curved surfaces, apply the tape with consistent tension to avoid wrinkles or air pockets. No special tools are required, but a rubber roller or squeegee can improve contact on flat surfaces. Follow all applicable facility safety procedures when working near machinery in operation.

Technical Specifications

• Width: 2 inches
• Length: 36 yards
• Thickness: 6.8 mil
• Adhesive Type: Silicone
• Film Material: PTFE
• Color: Gray
• Unit of Measure: Roll
• Weight: 1.25 pounds
• UPC: 00021200161322

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100029526
