3M 7100026492 Ceramic Flap Wheel Type 83 80 Grit

Product Description

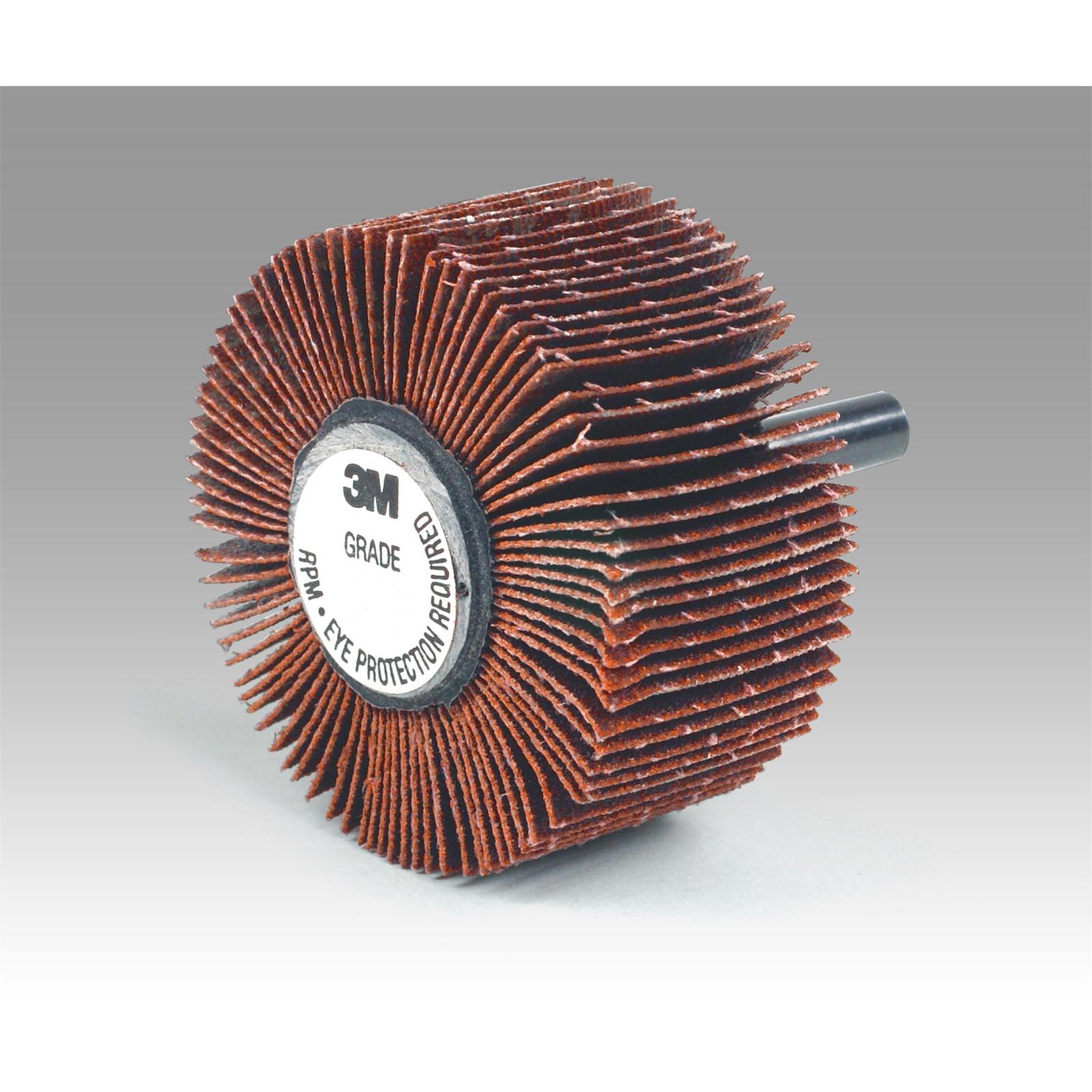

The 3M 7100026492 is a ceramic abrasive flap wheel, Type 83, from the 747D product line. It measures 1.5 inches in diameter by 1 inch in width with a 0.25-inch arbor hole. Built on an X-weight cloth backing, the wheel is resin bonded for heat resistance during aggressive material removal. A grinding aid is incorporated into the construction to promote cooler grinding temperatures and extend usable wheel life. This wheel is suited for metal fabrication, deburring, blending, and surface conditioning work performed by machinists, welders, and metal finishing professionals.

This flap wheel is used in applications requiring consistent stock removal and surface blending on ferrous and non-ferrous metals. The 80-grit ceramic grain provides a medium-aggressive cut suitable for weld blending, edge radiusing, and general grinding tasks on production and maintenance work. The compact 1.5 x 1 inch profile fits standard rotary tools and die grinders for work in confined areas or on contoured surfaces.

Key Features

• Ceramic abrasive grain for aggressive cutting and long wheel life
• X-weight cloth backing provides durability under moderate to heavy grinding pressure
• Resin bond construction resists heat buildup during extended use
• Integrated grinding aid promotes cooler grinding and reduced workpiece discoloration
• Type 83 configuration compatible with standard die grinder and rotary tool arbors
• 80-grit designation suits weld blending, deburring, and surface prep applications

Compatibility

Designed as an OEM-style replacement or direct-use abrasive flap wheel for 0.25-inch arbor rotary tools and die grinders used in metal fabrication and finishing applications.

Installation Notes

Mounting and use should be performed by qualified machinists or metal fabrication professionals familiar with abrasive wheel safety. Verify that the tool spindle speed does not exceed the maximum rated RPM marked on the wheel or packaging before mounting. Inspect the wheel for cracks or damage before each use and discard if defects are found. Eye protection and appropriate PPE are required during operation per ANSI B11 and OSHA abrasive wheel standards.

Technical Specifications

• Abrasive Type: Ceramic grain
• Wheel Type: Type 83
• Product Line: 747D
• Grit: 80
• Backing Weight: X-weight cloth
• Bond Type: Resin bonded
• Diameter: 1.5 inches
• Width: 1 inch
• Arbor Size: 0.25 inch
• Weight: 0.09 pounds
• Unit of Measure: Each
• Minimum Order Quantity: 10

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100026492
