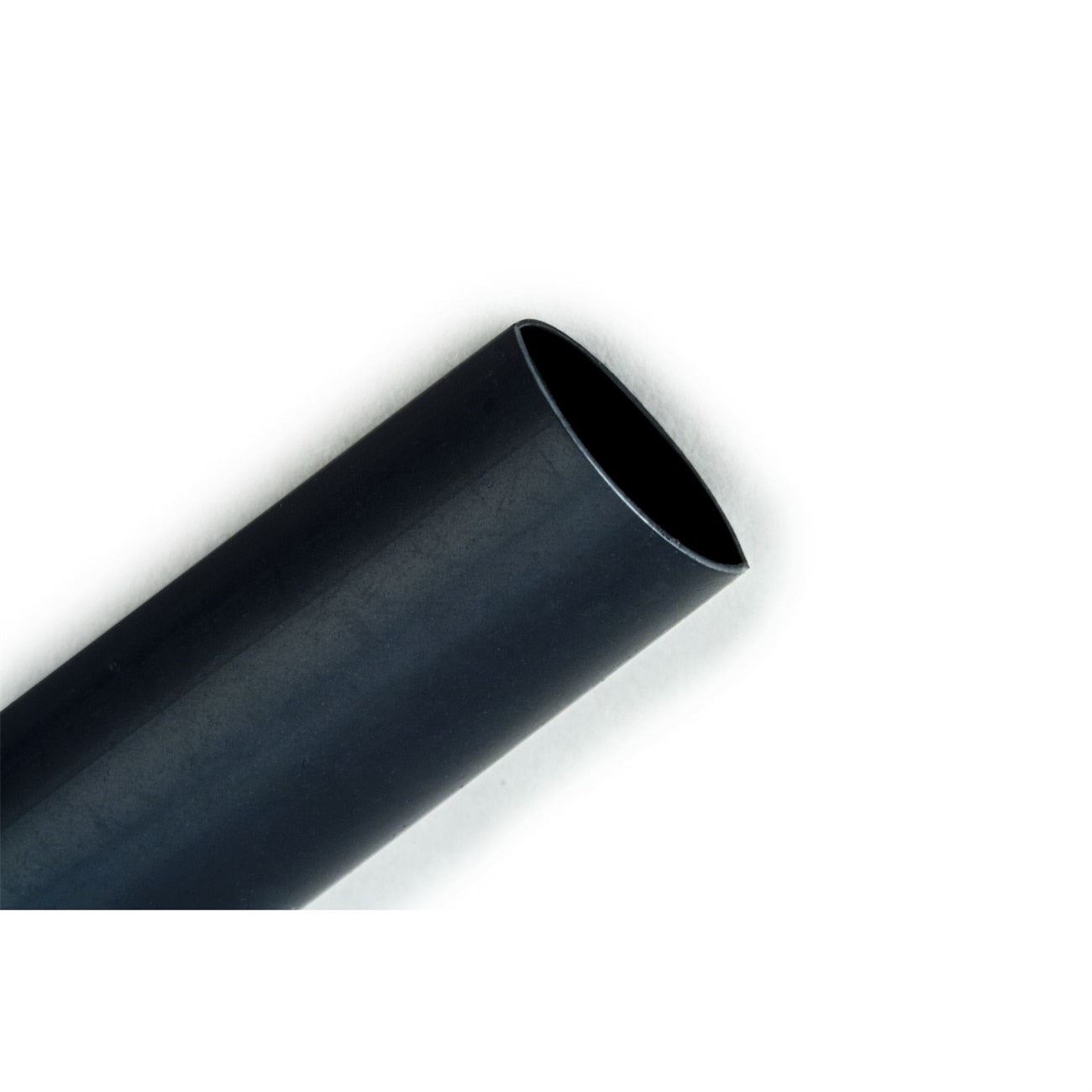

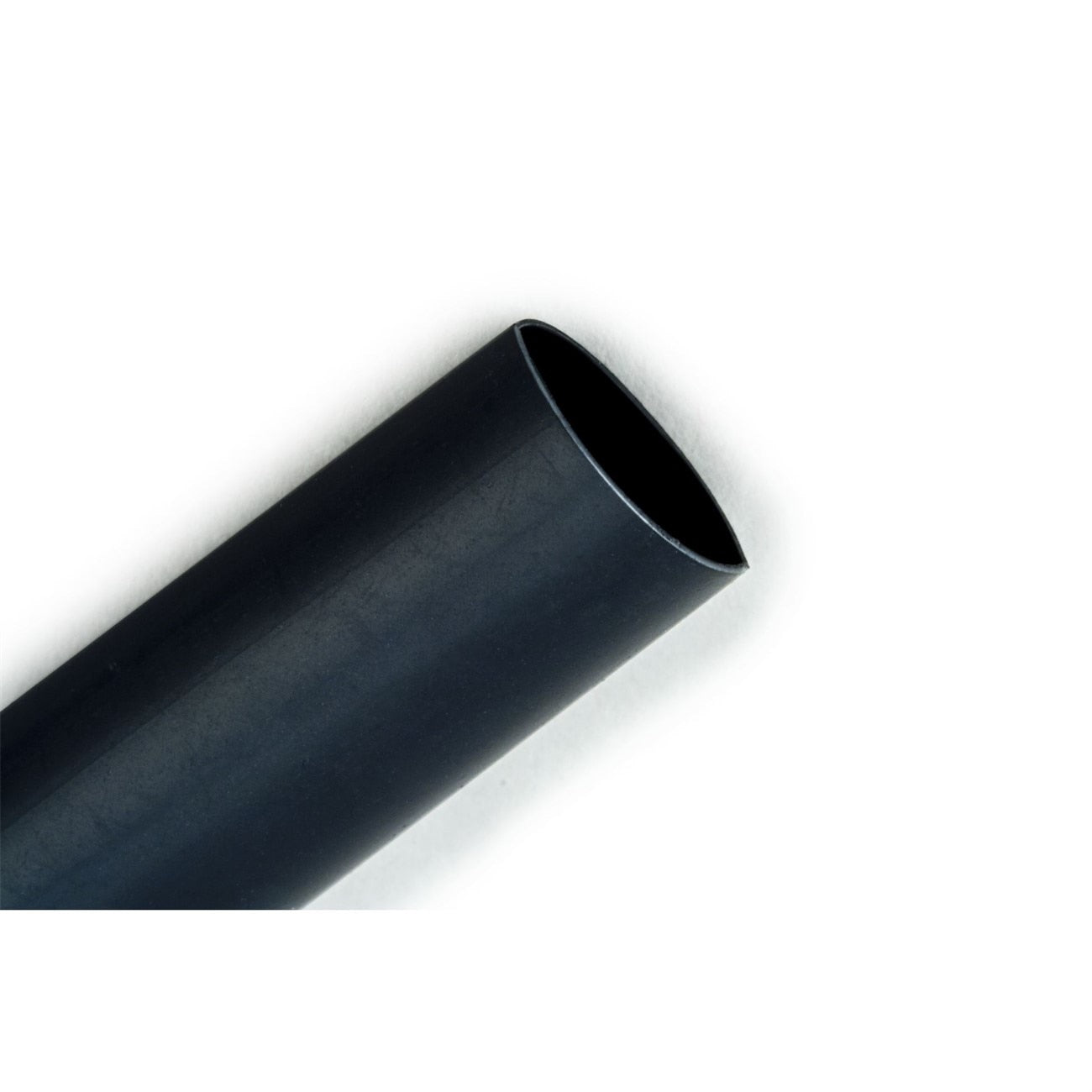

3M 7100025708 FP-301VW-3 Heat Shrink Tubing Black 50 Ft

Product Description

The 3M 7100025708 is a thin-wall heat shrink tubing sold as a 50-foot spool in black, manufactured under the FP-301VW product line. It delivers the same balanced electrical, physical, and chemical properties as standard FP-301 tubing while adding a superior flame-resistance rating engineered for demanding environments. Rated for continuous operation from -55 degrees C to 135 degrees C (-67 degrees F to 275 degrees F), it also withstands brief exposure to elevated temperatures up to 300 degrees C (572 degrees F). Minimum shrink temperature is 100 degrees C (212 degrees F). Electricians and low-voltage technicians use this tubing for wire insulation, bundling, and protection in applications where flame resistance is required.

This tubing is suited for residential and commercial electrical work, control panel wiring, and industrial applications where insulation must meet flame-resistance standards. It is commonly installed in environments exposed to heat, chemicals, or physical abrasion. The spool format makes it practical for bench work and field service, allowing technicians to cut lengths as needed for terminal insulation, wire splicing, and harness protection tasks.

Key Features

• Flame-resistant construction engineered for superior performance over standard FP-301 tubing
• Continuous operating range of -55 degrees C to 135 degrees C (-67 degrees F to 275 degrees F)
• Withstands brief elevated temperatures up to 300 degrees C (572 degrees F)
• Minimum shrink temperature of 100 degrees C (212 degrees F)
• Thin-wall profile for low-bulk insulation over terminals and wire splices
• 50-foot spool allows flexible cut-to-length use in field or shop settings

Compatibility

Designed as a general-purpose flame-resistant heat shrink tubing for electrical insulation, wire bundling, and termination protection in residential, commercial, and industrial wiring applications.

Installation Notes

Installation is performed by licensed electricians or qualified low-voltage technicians. De-energize all circuits before applying heat shrink tubing to any wiring or terminals. Apply heat evenly using a heat gun set to an appropriate temperature, working from the center of the tubing outward to prevent air pockets. Do not use an open flame as a heat source, as uneven heat can damage the tubing or underlying conductors.

Technical Specifications

• Product Line: FP-301VW
• Color: Black
• Length: 50 feet
• Wall Type: Thin-wall
• Continuous Temperature Rating: -55 degrees C to 135 degrees C (-67 degrees F to 275 degrees F)
• Elevated Temperature Resistance (brief): 300 degrees C (572 degrees F)
• Minimum Shrink Temperature: 100 degrees C (212 degrees F)
• Weight: 0.2 pounds
• UPC: 00054007388739

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100025708
