3M 7100025160 FP-301 Heat Shrink Tubing 1/2 in Green 200 Ft

Product Description

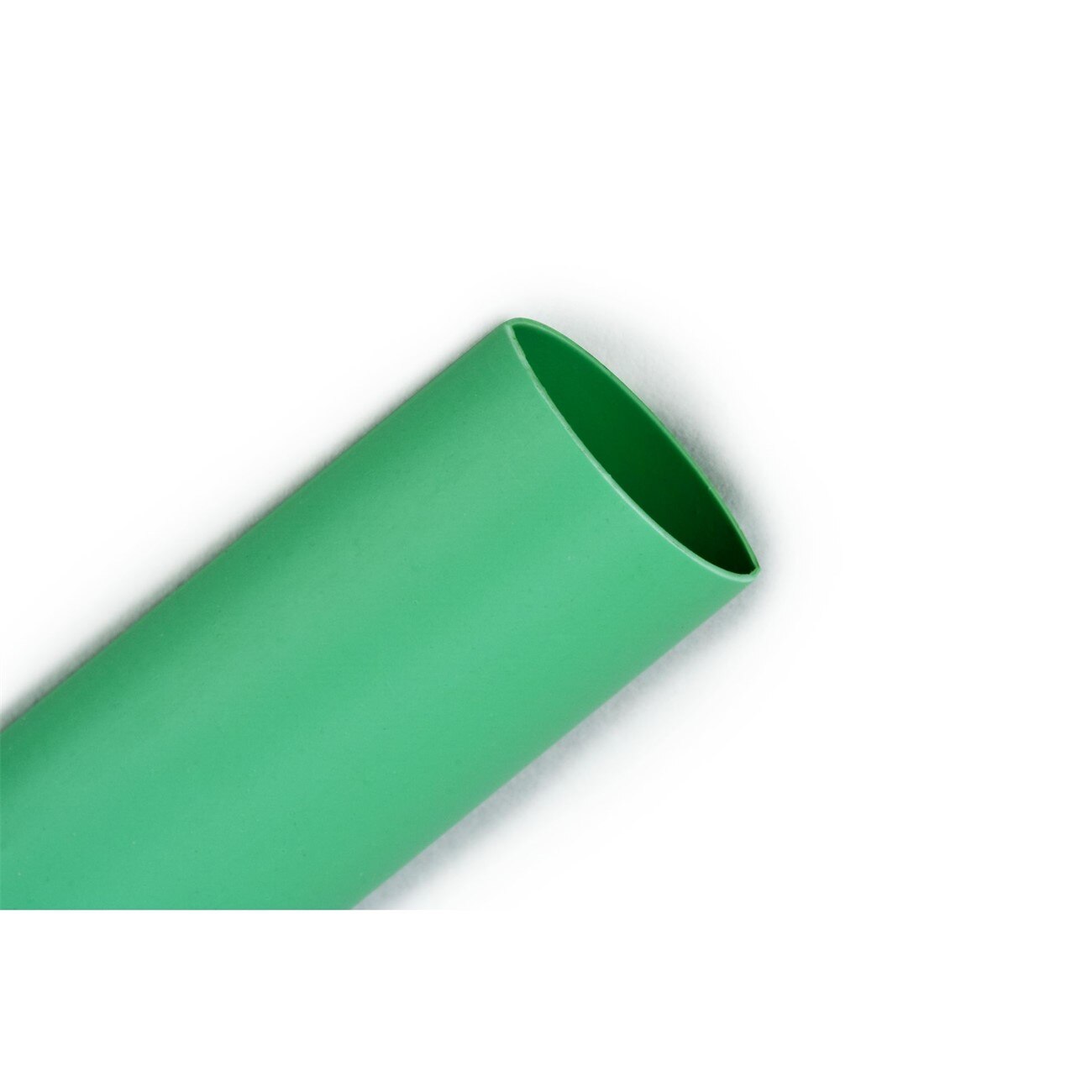

The 3M 7100025160 is a thin-wall heat shrink tubing sold on a 200-foot bulk spool in green. Part of the FP-301 series, this tubing is designed to provide reliable insulation, strain relief, and environmental protection for wire harnesses, cable bundles, solder joints, and electrical connections. The FP-301 formulation delivers a balanced combination of electrical insulating performance, physical durability, and chemical resistance. It is a standard choice for licensed electricians, military contractors, and industrial maintenance technicians working across a wide range of wiring and assembly applications.

FP-301 thin-wall heat shrink tubing is suited for both industrial and military-specification wiring applications. The 1/2-inch nominal diameter and green color coding make it appropriate for branch circuit identification, ground conductor marking, or any application where color-coded wire management is required. The bulk 200-foot spool format is intended for shops, service vehicles, or production environments where frequent tubing use justifies stocking a full spool rather than pre-cut segments.

Key Features

• Thin-wall FP-301 construction balances flexibility with electrical insulation performance
• 1/2-inch nominal diameter suits a range of wire gauges and connector bodies
• Green color supports color-coded wiring identification per installation standards
• 200-foot bulk spool reduces per-foot cost for high-volume shop or production use
• Rated for industrial and military wiring applications
• Chemical-resistant tubing wall protects against moisture, solvents, and abrasion

Compatibility

Designed as a general-purpose thin-wall heat shrink solution for industrial and military electrical assemblies where FP-301 series tubing meets the required specification.

Installation Notes

Installation is typically performed by licensed electricians or qualified wiring technicians. De-energize all circuits before applying heat shrink tubing to any conductor or connection. Use a calibrated heat gun set to the appropriate shrink temperature for the FP-301 material and apply heat evenly around the tubing circumference to achieve a uniform, wrinkle-free bond. Follow applicable NEC guidelines and any project-specific military or industrial wiring specifications when selecting tubing diameter and color coding.

Technical Specifications

• Series: FP-301
• Wall Type: Thin-Wall
• Nominal Diameter: 1/2 inch
• Color: Green
• Spool Length: 200 feet
• Unit of Measure: Foot
• Weight: 0.02 pounds
• UPC: 00054007569886

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100025160
