3M 7100023493 Scotch-brite Exl Pro Deburring Wheel 12 in

Product Description

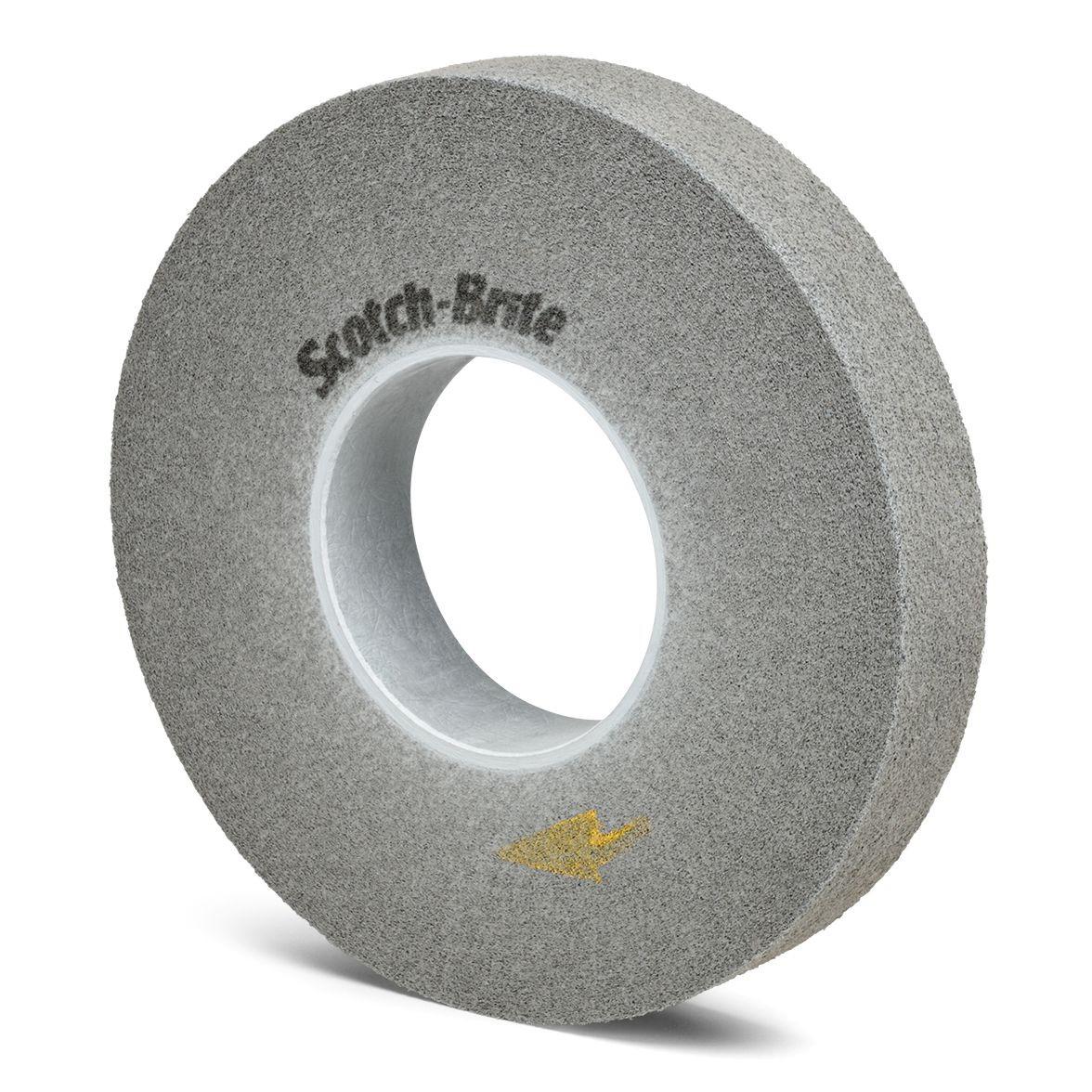

The 3M 7100023493 Scotch-Brite EXL PRO Convolute Deburring Wheel is a high-performance abrasive wheel engineered for off-hand deburring and edge-radiusing operations in metalworking environments. Built with a convolute construction and a reinforced resin system, this wheel delivers extended service life compared to standard EXL wheels while maintaining smooth, controlled cutting action. At 12 inches in diameter and 2.6 inches wide, it is sized for bench-mounted or pedestal grinder use. Machinists, fabricators, and metalworking tradespeople rely on this wheel to remove burrs, radius sharp edges, and produce consistent surface results with reduced operator fatigue.

This deburring wheel is suited for off-hand operations on a variety of metal workpieces in manufacturing, fabrication, and finishing environments. Its convolute construction allows the wheel to conform to part contours, making it effective on both flat and irregular surfaces. The unique resin system minimizes smearing on the workpiece surface, reducing post-operation cleaning time. The wheel is especially well suited for heat-sensitive materials, as its design helps limit heat buildup that can cause discoloration or warping during extended deburring runs.

Key Features

• Convolute construction maintains smooth wheel action and delivers consistent results in off-hand deburring operations
• Extended service life versus standard EXL wheels, requiring less pressure for an effective cut
• Unique resin system minimizes smearing and reduces surface cleaning time after use
• Limits heat buildup to reduce the risk of discoloration or warping on heat-sensitive workpieces
• Removes burrs and radiuses sharp edges without sacrificing surface finish quality

Compatibility

Designed for use on bench-mounted or pedestal grinders configured for convolute deburring wheels. Verify arbor size and guard clearance on the host machine before installation.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive wheel mounting procedures. Power down and lock out the grinder before mounting or removing the wheel. Inspect the wheel for cracks or damage before each use and confirm the machine RPM rating does not exceed the wheel's rated speed. Always dress the wheel in accordance with the tool manufacturer's guidelines before beginning operations.

Technical Specifications

• Wheel Diameter: 12 inches
• Wheel Width: 2.6 inches
• Construction Type: Convolute
• Weight: 5.41 pounds
• Package Dimensions: 12.4 x 12.4 x 2.6 inches
• Sold As: Each
• UPC: 00051125949149

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100023493
