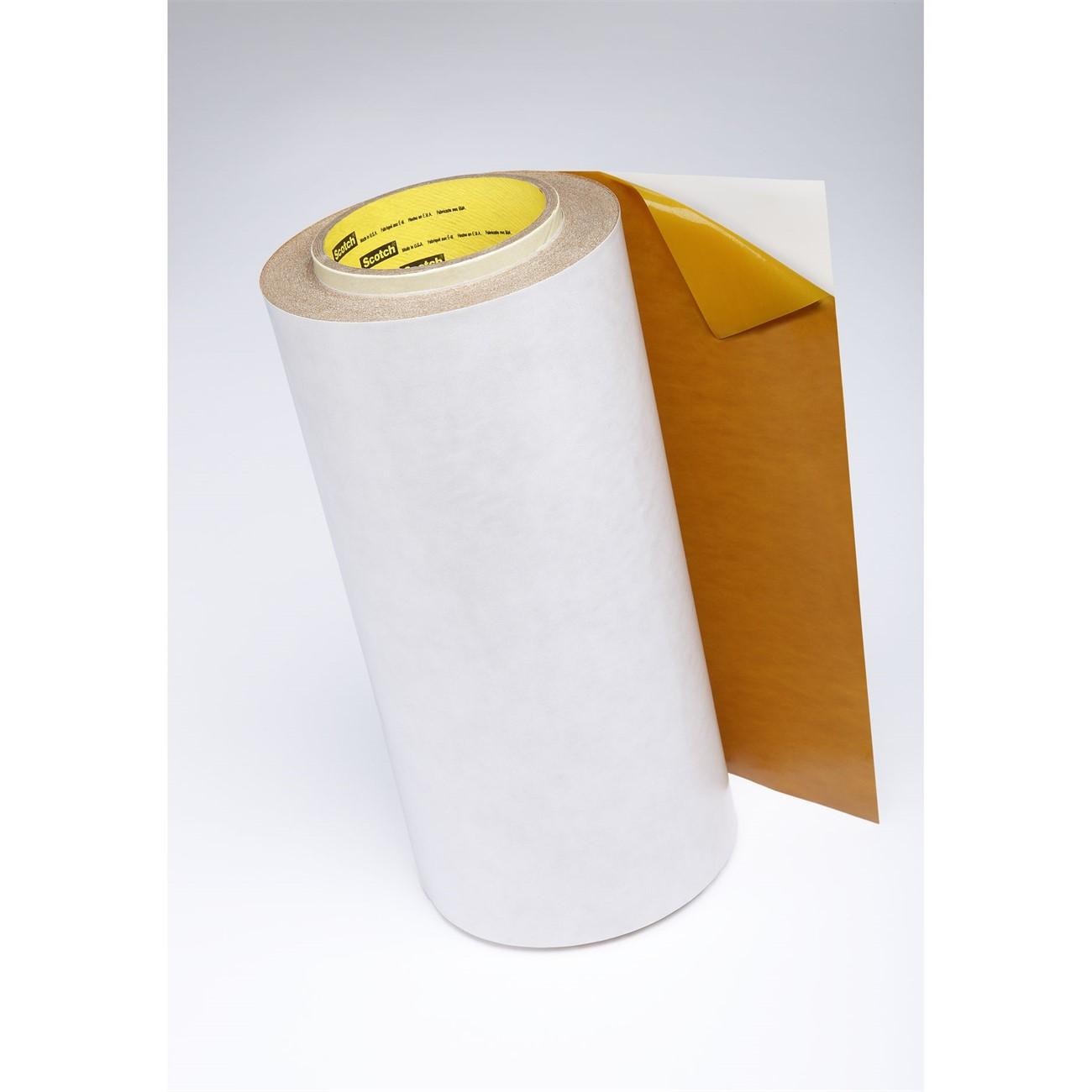

3M 7100022220 Thermal Bonding Film 48in X 60yd

Product Description

The 3M 7100022220 is a flexible, 100 percent solids thermal bonding film designed for heat or solvent activated dry adhesive applications. Composed of synthetic elastomer, thermoplastic, and thermosetting resins, the film softens and flows when heat or solvents are applied, creating a strong, permanent bond to the target surface. Supplied in roll form at 48 inches wide by 60 yards long, this film is specially formulated to meet the processing and application demands of the nameplate industry, where consistent flow and adhesion are critical to finished product quality.

This thermal bonding film is used primarily in the nameplate and industrial labeling industry, where reliable adhesion to a variety of substrates is required. Its dual activation method — heat or solvent — gives fabricators flexibility in processing environments. The roll format supports continuous feed operations, making it well suited for mid- to large-scale nameplate production shops and industrial converting operations.

Key Features

• 100 percent solids dry film adhesive with no carrier solvent system
• Activates with heat or solvent for processing flexibility
• Synthetic elastomer, thermoplastic, and thermosetting resin composition for strong, permanent bonds
• Specially formulated for nameplate industry processing and application requirements
• Large-format roll: 48 inches wide by 60 yards long for high-volume operations

Compatibility

Designed as an OEM-style bonding solution for nameplate fabrication and industrial film converting applications where heat or solvent activation is part of the production process.

Installation Notes

Application is typically performed by industrial fabricators or converting technicians familiar with film lamination and bonding processes. Follow the adhesive activation method appropriate for the substrate and production environment, whether heat press or solvent activation. Ensure surfaces are clean and free of contaminants before bonding. Consult applicable workplace safety guidelines when working with solvent activation methods in enclosed spaces.

Technical Specifications

• Width: 48 inches
• Length: 60 yards
• Form Factor: Roll
• Adhesive Type: Heat or solvent activated dry film
• Composition: Synthetic elastomer, thermoplastic, and thermosetting resins
• Solids Content: 100 percent
• Weight: 18.2 pounds
• UPC: 00021200436666

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100022220
