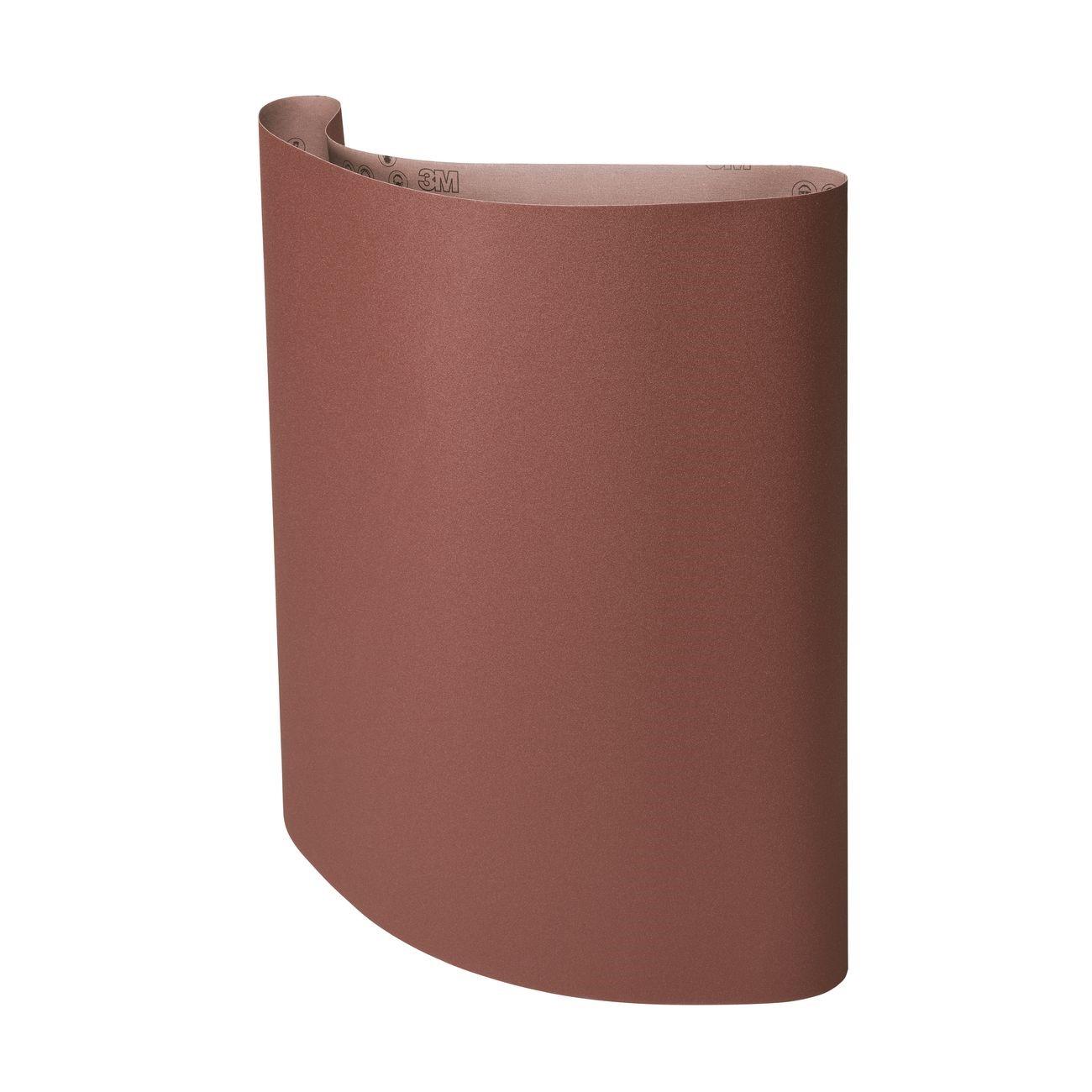

3M 7100020238 Coated Abrasive Belt 60 Grit 75x37 Inch

Product Description

The 3M 7100020238 is a coated abrasive cloth belt designed for demanding metalworking operations including grinding, blending, deburring, and surface finishing. Built on a tough polyester backing, this belt carries aluminum oxide abrasive grains bonded with a heat-resistant resin system. The 60-grit cut rating delivers aggressive stock removal while maintaining consistent surface results. At 75 inches long and 37 inches wide, this belt is sized for high-production coil and sheet finishing lines. Licensed metalworking technicians and fabrication shop operators are the primary installers and users of this product.

This belt is well suited for stainless steel coil finishing applications where flexibility, heat resistance, and extended belt life are critical. It also performs reliably in centerless grinding and backstand configurations across a broad range of ferrous and non-ferrous metals. The construction supports both wet and dry operating conditions, making it adaptable to shop environments where coolant or water is part of the process. Medium-pressure applications are the intended operating range for consistent, repeatable results.

Key Features

• Aluminum oxide abrasive grains provide fast cutting action across many metal surfaces
• Polyester backing delivers consistent performance in medium-pressure grinding and finishing
• Heat-resistant resin bond maintains abrasive adhesion under pressure, heat, and wet conditions
• Suitable for wet and dry applications including coolant-assisted grinding
• Designed for stainless steel coil finishing, centerless grinding, and backstand use
• 60-grit rating balances aggressive stock removal with controlled surface finish

Compatibility

Designed for use on all metals including stainless steel in grinding, blending, deburring, and finishing applications on coil finishing lines, backstand equipment, and centerless grinding machines.

Installation Notes

Belt installation should be performed by qualified shop personnel with the grinder or backstand fully de-energized and locked out before mounting. Verify belt tracking and tension according to the equipment manufacturer's guidelines before resuming operation. Inspect the belt for tears or edge damage prior to each use. Follow applicable ANSI and OSHA abrasive product safety standards when operating grinding equipment.

Technical Specifications

• Grit: 60
• Abrasive Material: Aluminum Oxide
• Belt Length: 75 inches
• Belt Width: 37 inches
• Backing Material: Polyester Cloth
• Bond Type: Heat-Resistant Resin
• Color: Brown
• Application: Wet and Dry
• Weight: 10.22 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100020238
