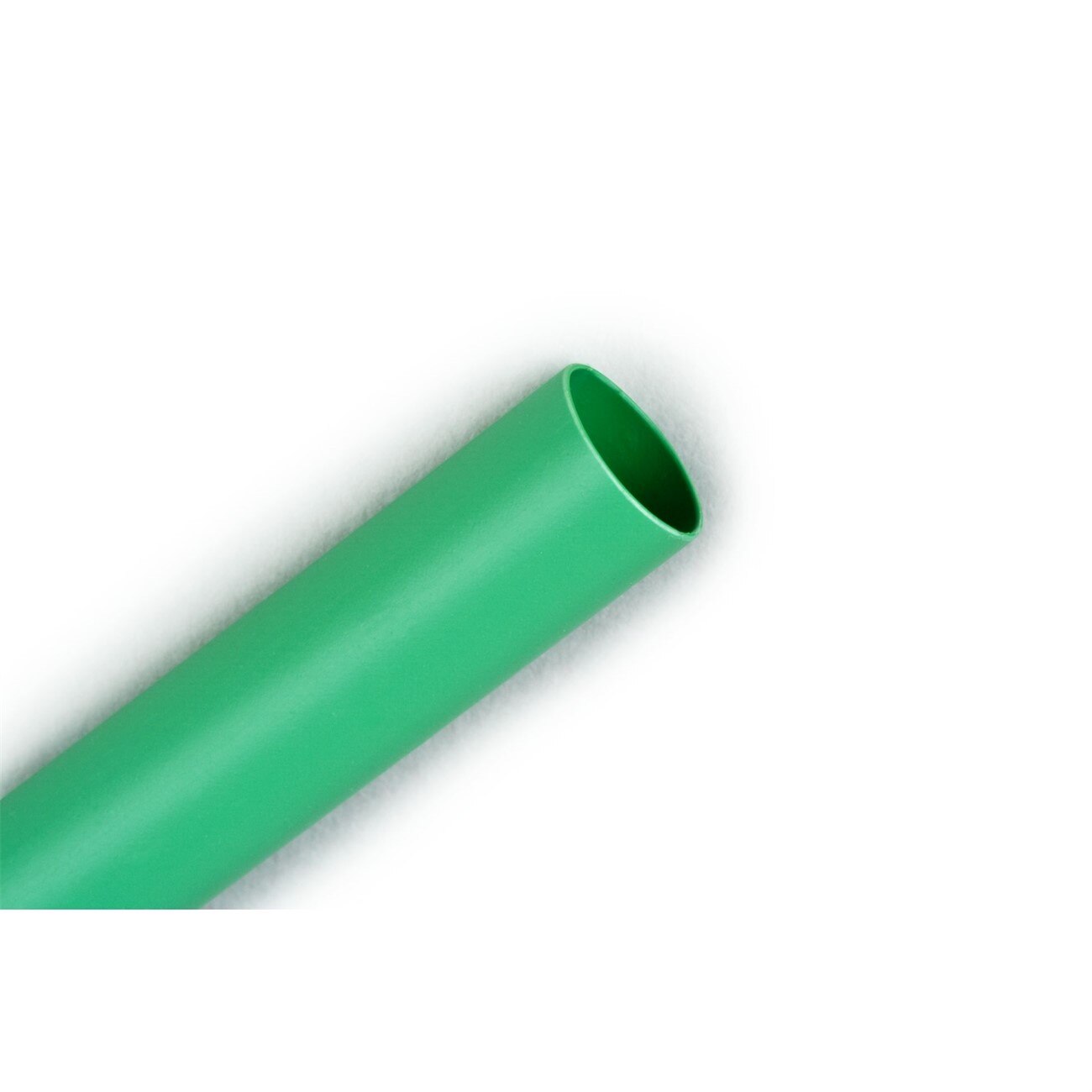

3M 7100020162 FP-301 Heat Shrink Tubing 1/8 in Green 500 Ft

Product Description

The 3M 7100020162 is a thin-wall heat shrink tubing from the FP-301 series, supplied on a 500-foot bulk spool in green. FP-301 is a general-purpose, single-wall polyolefin tubing designed to provide insulation, strain relief, and environmental protection for wire, cable, and termination points. It delivers a reliable balance of electrical insulation, physical durability, and chemical resistance. The 1/8-inch recovered diameter makes it well suited for smaller-gauge conductors and connector backshells. Licensed electricians and industrial maintenance technicians install this tubing wherever bundled or individual conductors require color-coded, heat-applied insulation protection.

FP-301 thin-wall heat shrink tubing is used across industrial, commercial, and military electrical applications. The green color supports color-coded wiring schemes for circuit identification. The bulk 500-foot spool format is practical for shops, service vans, and panel fabrication environments where frequent use justifies keeping a full spool on hand. Typical applications include wire harnessing, lead identification, solder joint protection, and general insulation repair on low-voltage wiring systems.

Key Features

• Thin-wall polyolefin construction provides electrical insulation and chemical resistance
• 1/8-inch diameter sizing fits smaller-gauge conductors and terminations
• Green color enables color-coded circuit and conductor identification
• 500-foot bulk spool reduces per-foot cost for high-volume shop use
• FP-301 series rated for a broad range of industrial and military applications

Compatibility

Designed as a general-purpose heat shrink sleeve suitable for use on wire, cable, and terminations requiring a 1/8-inch recovered diameter in industrial, commercial, and military electrical assemblies.

Installation Notes

Installation is typically performed by licensed electricians or qualified electrical technicians. De-energize all circuits before applying heat shrink tubing to any conductor or termination. Use a dedicated heat gun to apply uniform heat along the length of the tubing — open flame sources are not recommended as they can cause uneven shrink or material damage. Follow applicable NEC guidelines for insulation type and color coding when incorporating this tubing into wiring assemblies.

Technical Specifications

• Series: FP-301
• Type: Thin-Wall Heat Shrink Tubing
• Diameter: 1/8 inch
• Color: Green
• Spool Length: 500 feet
• Unit of Measure: Foot
• Weight: 0.01 pounds
• UPC: 00054007568247

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100020162
