3M 7100020132 FP-301 Heat Shrink Tubing 3/32 in Clear 500 Ft

Product Description

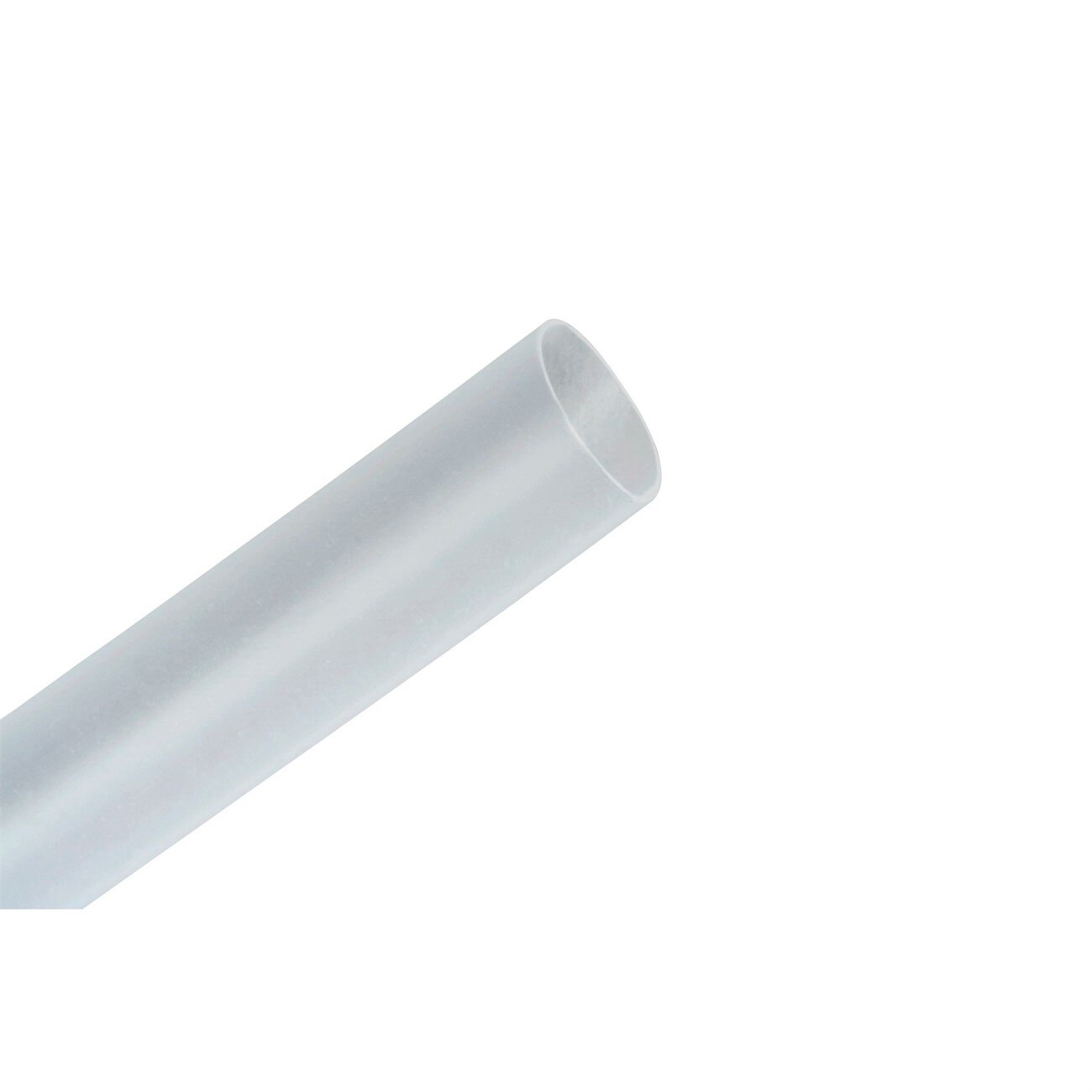

The 3M 7100020132 is a clear, thin-wall heat shrink tubing supplied on a 500-foot bulk spool. Part of the FP-301 series, this tubing delivers a reliable balance of electrical insulation, physical protection, and chemical resistance. With a nominal recovered diameter of 3/32 inch, it is sized for small-gauge wiring and connector insulation tasks common in industrial wiring harnesses, panel builds, and field service work. Licensed electricians, instrumentation techs, and military-spec assembly technicians are the primary installers. The tubing is sold by the foot with a minimum order quantity of 1,500 feet.

FP-301 thin-wall heat shrink tubing is suited for bundling, color-coding, and insulating small-diameter conductors and terminations in both industrial and military environments. The clear jacket allows visual confirmation of the underlying wire or connection after shrinking, which is useful for inspection and traceability in panel wiring and harness assembly applications.

Key Features

• Thin-wall construction for low-profile insulation on small-gauge conductors
• Clear tubing allows visual inspection of the underlying connection after installation
• Bulk 500-foot spool format reduces handling and supports high-volume assembly work
• Balanced electrical, physical, and chemical resistance properties for demanding environments
• Suitable for industrial and military-grade wiring applications

Compatibility

Designed as an OEM-style replacement and general-use heat shrink tubing for small-diameter wire insulation and termination protection in industrial and military wiring applications.

Installation Notes

Installation is performed by electricians, electronics technicians, or qualified assembly personnel. Before applying heat, ensure the conductor or termination is clean, dry, and de-energized. Use a calibrated heat gun at the manufacturer-recommended temperature range, working from the center of the tubing outward to prevent air pockets. Do not use an open flame, as uncontrolled heat can damage the tubing or the underlying conductor insulation.

Technical Specifications

• Recovered Diameter: 3/32 inch
• Spool Length: 500 feet
• Color: Clear
• Weight: 0.01 pounds
• Unit of Measure: Foot
• Minimum Order Quantity: 1,500 feet
• UPC: 00054007085256

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100020132
