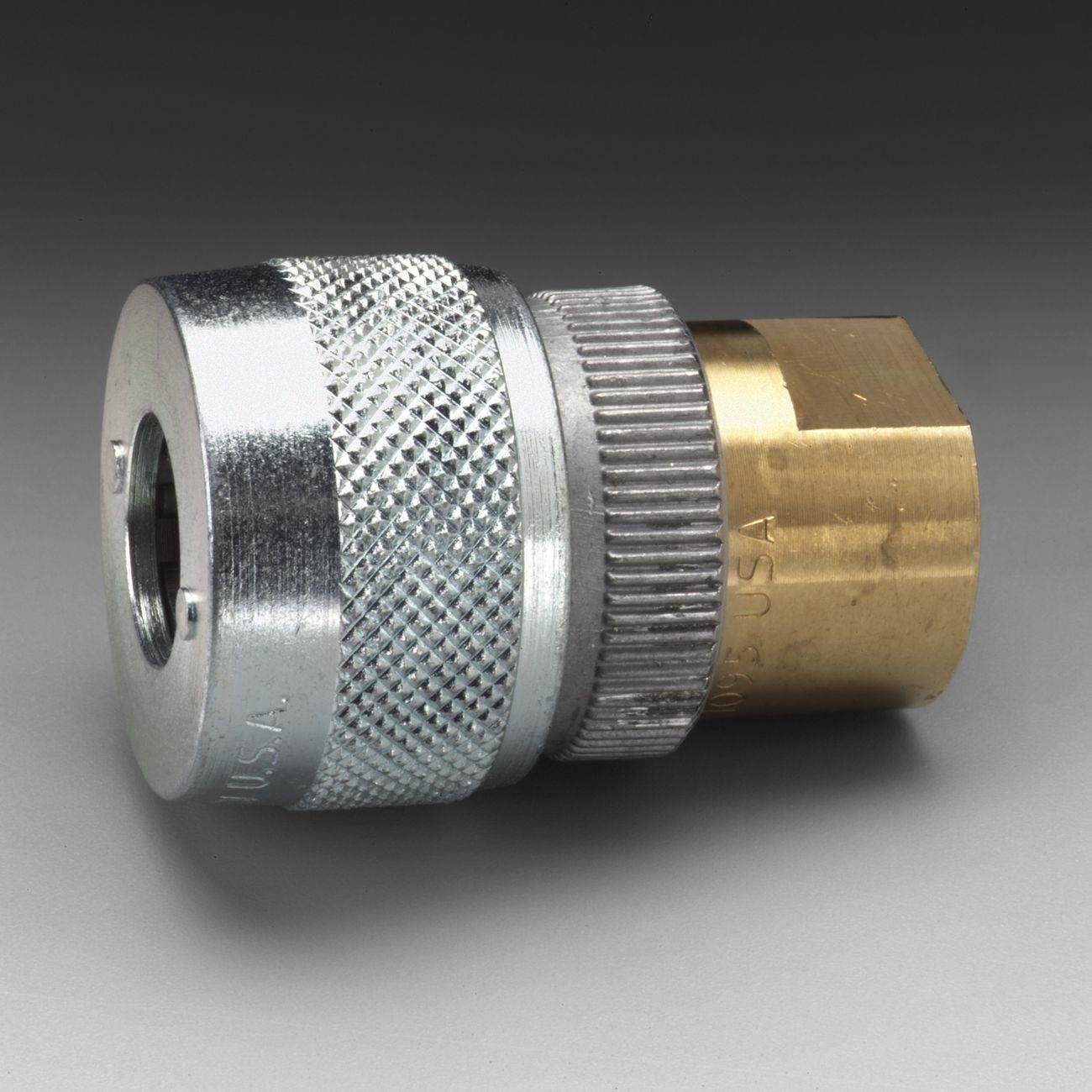

3M 7100017457 Twist Lock Socket 1/2 in 3/8 in Fpt Schrader

Product Description

The 3M 7100017457 is a twist lock socket fitting designed for low-pressure supplied air applications. Constructed with steel and brass, this fitting combines durability with reliable sealing performance. It features a 1/2-inch body size and a 3/8-inch female pipe thread (FPT) connection with a Schrader-style valve interface. The socket is used to connect supplied air hose assemblies in breathing air systems, making it a component typically handled by safety equipment technicians and industrial hygiene professionals during respiratory protection system maintenance.

This fitting is suited for low-pressure supplied air hose systems in industrial and occupational safety environments. It is designed to mate with supplied air hose assemblies where a secure twist-lock connection is required. Typical installations include fixed and mobile supplied air systems used in painting, confined space entry, and other environments requiring continuous clean air delivery.

Key Features

• Twist lock design provides a secure, tool-free connection and disconnection
• Low-pressure rating appropriate for supplied air breathing hose systems
• Steel and brass construction for corrosion resistance and mechanical durability
• 1/2-inch body size with 3/8-inch FPT inlet for standard pipe thread compatibility
• Schrader-style valve interface for controlled airflow

Compatibility

Designed for use with the 3M Supplied Air Hose W-3020.

Installation Notes

Installation is typically performed by a qualified safety equipment technician or industrial hygienist familiar with supplied air system configurations. Shut off the air supply and depressurize the line fully before removing or installing any fitting. Apply thread sealant appropriate for breathing air service on the FPT connection, and verify all connections are leak-free before returning the system to service. Follow applicable OSHA and ANSI Z88 requirements for supplied air respirator systems.

Technical Specifications

• Body Size: 1/2 inch
• Connection Type: 3/8 inch FPT (Female Pipe Thread)
• Valve Style: Schrader
• Pressure Rating: Low pressure
• Material: Steel and brass
• UPC: 50051131071570

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100017457
