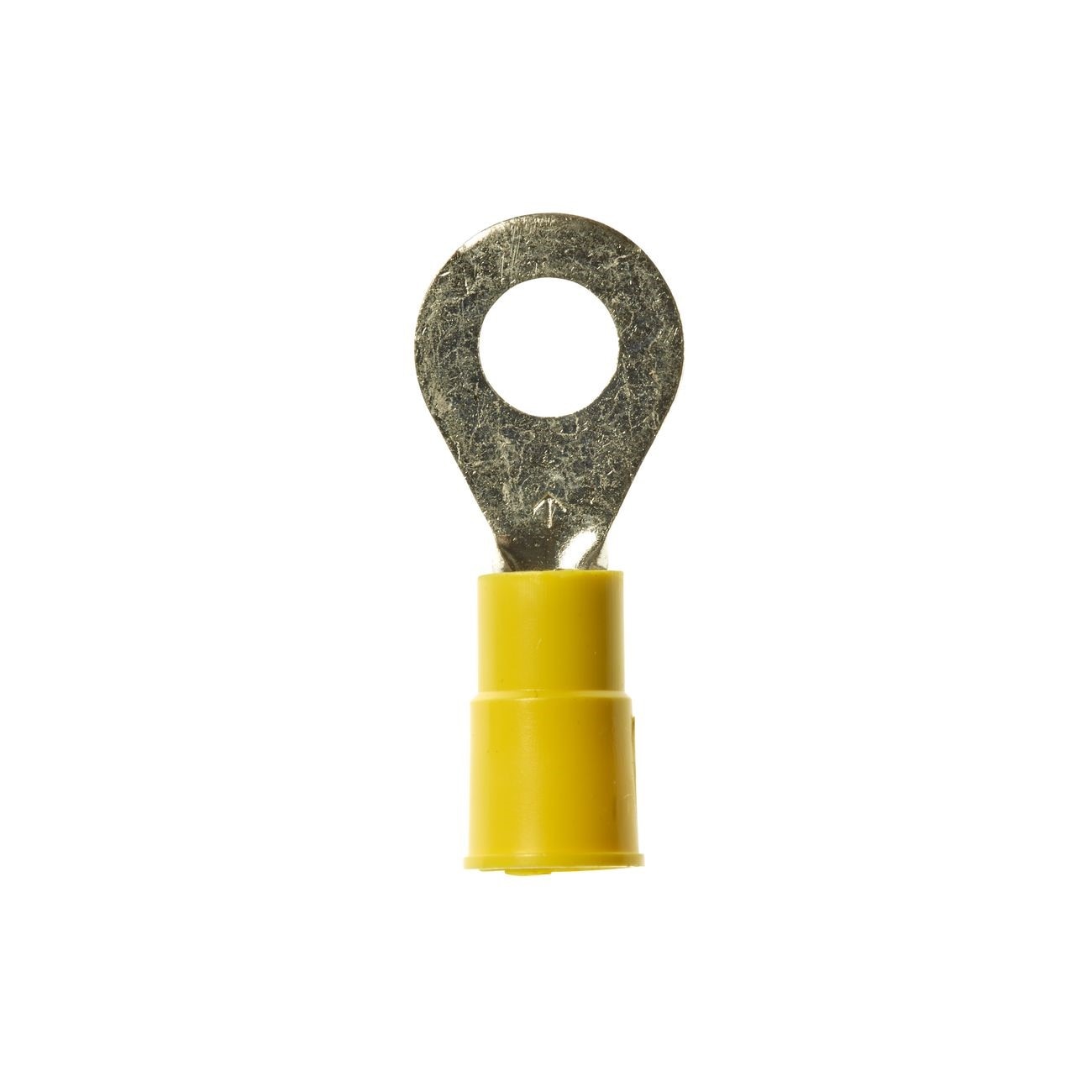

3M 7100017418 Vinyl Insulated Ring Terminal 50pk

Product Description

The 3M 7100017418 is a vinyl insulated ring terminal designed for secure, vibration-resistant wire terminations in electrical wiring applications. Sold in bottles of 50, this ring terminal provides a reliable mechanical and electrical connection between a conductor and a threaded stud or screw. The vinyl insulation sleeve protects the connection from moisture, abrasion, and incidental contact. Identified by the style designation MV10-14R/SX, this terminal is sized for use with wire gauges and stud sizes consistent with that specification. Licensed electricians and experienced wiring technicians install these as part of panel work, equipment grounding, and general-purpose circuit termination.

Ring terminals in this category are used across residential and commercial electrical wiring, control panel assembly, HVAC equipment wiring, and light industrial applications. The ring-style tongue ensures a full 360-degree contact around a terminal stud, making it well suited for installations where connections must remain secure under vibration or thermal cycling. The vinyl insulation sleeve is applied over a brazed or seamless barrel, supporting clean, consistent crimps with standard insulated terminal crimping tools.

Key Features

• Vinyl insulation sleeve for protection against moisture and abrasion
• Ring-style tongue provides full stud contact for reliable electrical connection
• Sold in bottles of 50 for bench stock and field use
• Style designation MV10-14R/SX for consistent specification-based procurement
• Compatible with standard insulated terminal crimping tools

Compatibility

Designed as an OEM-style ring terminal for general electrical wiring and termination applications where a vinyl insulated ring tongue connector is specified.

Installation Notes

Installation should be performed by a qualified electrician or trained wiring technician in accordance with NEC guidelines. De-energize all circuits completely before installing or replacing terminals. Use a calibrated insulated terminal crimping tool matched to the wire gauge and terminal barrel size — do not use pliers or uncalibrated tools, as an improper crimp can result in high resistance or pull-out failure. Inspect the insulation sleeve after crimping to confirm it has not cracked or split.

Technical Specifications

• Style: MV10-14R/SX
• Insulation Type: Vinyl
• Terminal Type: Ring
• Quantity per Bottle: 50
• Weight: 0.01 pounds
• UPC: 10051128587598

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100017418
