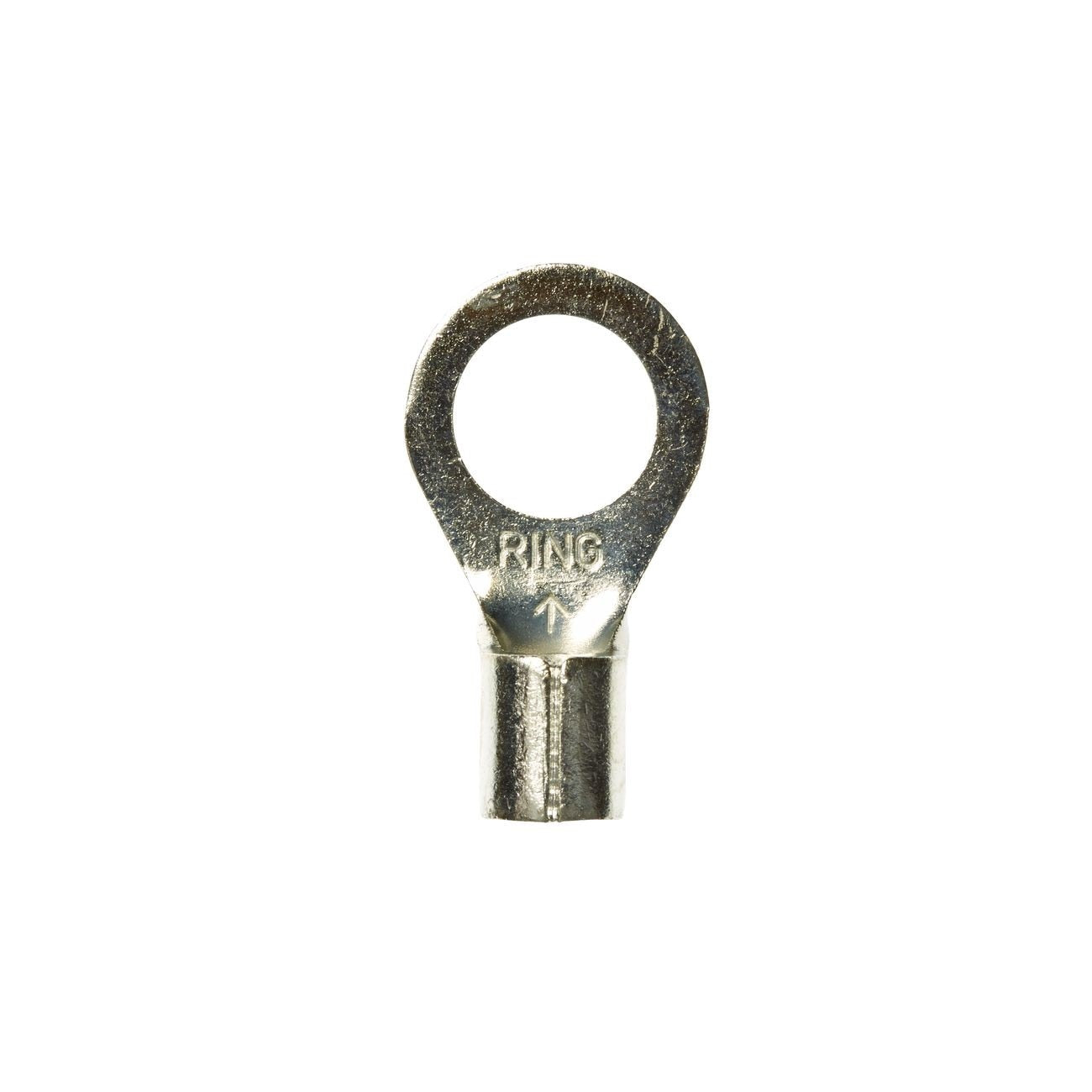

3M 7100017349 Non-insulated Ring Terminal M8 10 Pack

Product Description

The 3M 7100017349 is a non-insulated ring terminal designed for bare-wire electrical terminations where insulation is not required or will be applied separately after crimping. This terminal accepts an M8 stud size and is sold in a bottle of 10 pieces, making it well suited for small jobs and service kit restocking. Electricians and panel technicians use non-insulated ring terminals in control panels, grounding applications, and equipment wiring where a clean, low-profile lug is needed. The bare copper or steel construction allows for direct visual inspection of the crimp after installation.

This terminal is used in residential and light commercial electrical work, control panel assembly, and industrial equipment wiring. The M8 stud size fits a wide range of terminal blocks, ground bars, and equipment lugs. The 10-piece bottle packaging is practical for service vehicles and shop stock where small quantities are consumed regularly by electricians and instrumentation technicians.

Key Features

• Non-insulated design for applications requiring post-crimp insulation or bare termination
• M8 stud size fits standard M8 terminal blocks and ground points
• Packaged 10 pieces per bottle for convenient jobsite and bench use
• Compact and lightweight at 0.02 pounds per unit
• Minimum order quantity of 10 aligns with bottle pack count

Compatibility

Designed as an OEM-style non-insulated ring terminal for use with M8 stud connections in electrical panel, grounding, and equipment wiring applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize and lock out the circuit before terminating any wiring. Use a ratcheting crimp tool sized for the wire gauge and terminal series to ensure a proper mechanical and electrical connection. Do not use pliers or non-rated tools as a substitute for a proper crimping tool, as an improper crimp can result in a high-resistance connection or terminal pullout.

Technical Specifications

• Stud Size: M8
• Insulation: Non-insulated
• Quantity per Package: 10 pieces
• Weight: 0.02 pounds
• UPC: 10051128586966

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100017349
