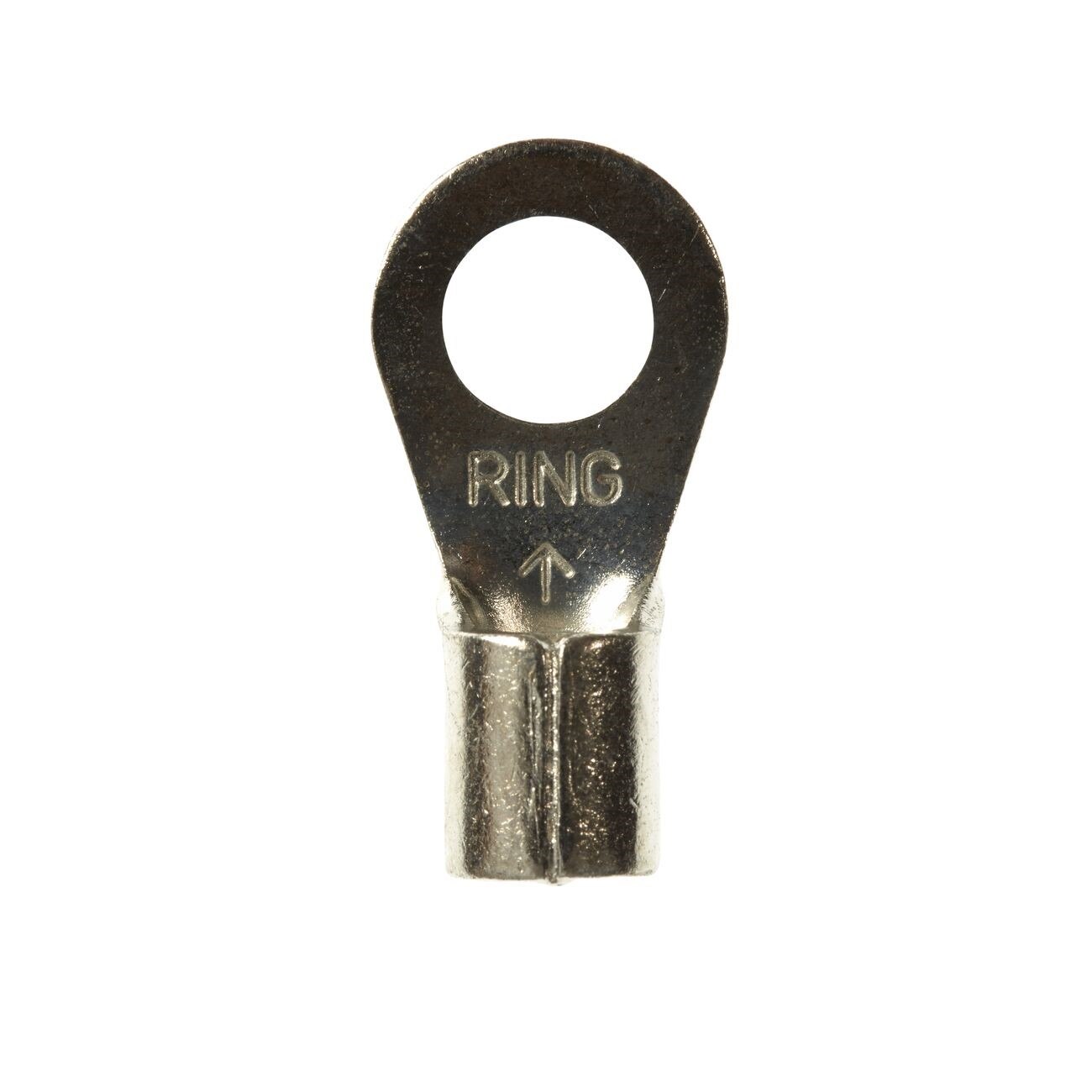

3M 7100017348 Non-insulated Ring Terminal M8 10 Pack

Product Description

The 3M 7100017348 is a non-insulated ring terminal designed for making secure, bare-metal electrical connections at M8 stud sizes. Ring terminals in this style are crimped onto stripped wire ends and fastened under a screw or bolt head to create a solid, low-resistance electrical bond. These terminals are sold in a bottle of 10 and are part of 3M's line of non-insulated connectors used by electricians and equipment technicians working on control panels, grounding circuits, motor connections, and industrial wiring harnesses where sleeved insulation is not required or where heat-shrink is applied separately.

Non-insulated ring terminals like the 7100017348 are used in residential, commercial, and industrial electrical work wherever a reliable ring-style lug connection is needed at an M8 stud. They are well suited for panel wiring, grounding applications, automotive and equipment harnesses, and any installation where the installer provides insulation through separate means such as heat-shrink tubing. The 10-piece bottle format suits field service kits and bench stock.

Key Features

• Non-insulated barrel accepts crimped wire terminations for a clean, low-profile connection
• M8 stud size fits standard M8 screws and bolts common in electrical panels and equipment
• 10 terminals per bottle for convenient field or shop stocking
• Bare-metal construction allows post-crimp insulation with heat-shrink or other sleeving

Compatibility

Designed as an OEM-style non-insulated ring terminal for use with M8 stud connections in residential, commercial, and industrial electrical wiring applications.

Installation Notes

Installation is performed by licensed electricians or qualified technicians following applicable NEC guidelines. De-energize the circuit completely before terminating any conductors. Use a calibrated ratcheting crimp tool sized for the wire gauge and terminal barrel to ensure a gas-tight crimp. Inspect the crimped connection for deformation or pull-out before fastening the ring to the stud.

Technical Specifications

• Stud Size: M8
• Package Quantity: 10 per bottle
• Insulation Type: Non-insulated
• Weight: 0.02 pounds
• UPC: 10051128586942

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100017348
