3M 7100017255 Vhb F9473PC Adhesive Transfer Tape 0.25 in

Product Description

The 3M 7100017255 is a VHB F9473PC adhesive transfer tape designed for bonding applications that demand a thin profile and long-lasting hold. This double-sided, transparent tape measures 10 mil thick and is built around 3M High Performance Acrylic Adhesive 100MP. The acrylic construction delivers strong initial tack and durable adhesion across a wide range of surfaces. The tape is chemical resistant, UV resistant, and solvent resistant, making it well suited for both indoor and outdoor service environments. Trade professionals in HVAC, electrical, and general industrial assembly use this tape where a permanent, high-strength bond is required without adding visible bulk.

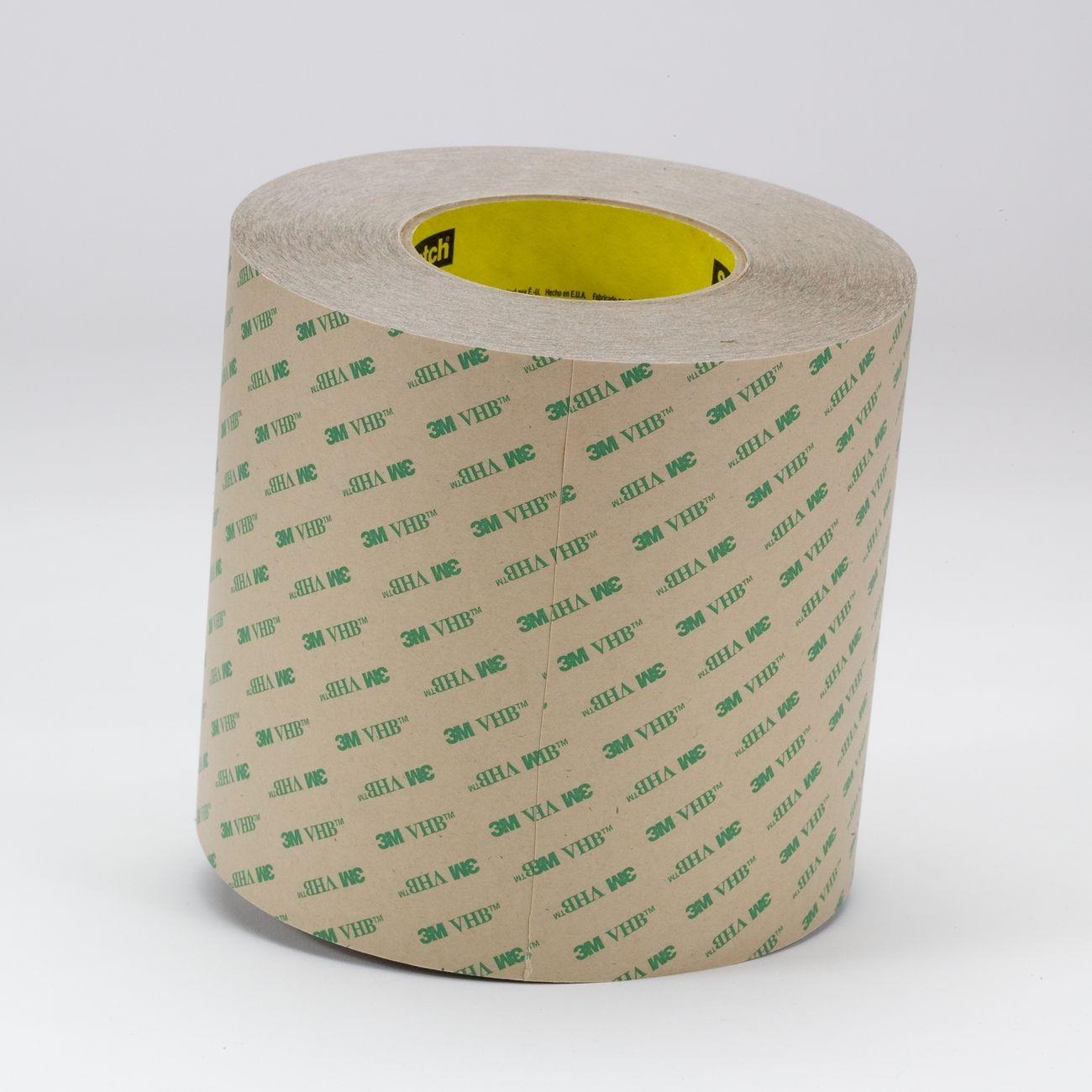

The F9473PC transfer tape is appropriate for residential and commercial applications where conformability to irregular or curved surfaces is needed. It performs reliably in environments with elevated ambient temperatures and handles exposure to UV and common solvents. The tape ships on a 58 polycoated kraft paper liner printed with VHB branding, which aids in controlled application and consistent liner removal. It is sold in roll form and is well suited for production environments or service technicians who require repeatable bonding results across multiple installs.

Key Features

• 10 mil (0.26 mm) transparent double-sided VHB transfer tape with a thin, low-profile build
• Built with High Performance Acrylic Adhesive 100MP for strong, long-lasting adhesion
• Short-term temperature tolerance up to 500 degrees F (260 degrees C)
• Continuous operating temperature tolerance up to 300 degrees F (149 degrees C)
• Resistant to chemicals, UV exposure, and solvents
• Conforms to irregular surfaces for indoor and outdoor use
• 58 polycoated kraft paper liner supports clean, controlled application

Compatibility

Designed as a general-purpose high-bond adhesive transfer tape suitable for bonding applications across metal, plastic, glass, and painted surfaces in industrial, commercial, and residential settings.

Installation Notes

Surface preparation is critical before applying any pressure-sensitive adhesive tape — clean bonding surfaces with an appropriate solvent to remove oils, dust, and contaminants. Apply firm, even pressure across the tape length to activate full adhesive contact. Allow adequate dwell time before subjecting the bond to load or thermal stress. Liner removal should be performed carefully to avoid stretching or folding the tape prior to placement.

Technical Specifications

• Tape Thickness: 10 mil (0.26 mm)
• Width: 0.25 inches
• Adhesive Type: High Performance Acrylic Adhesive 100MP
• Short-Term Temperature Tolerance: 500 degrees F (260 degrees C)
• Operating Temperature Tolerance: 300 degrees F (149 degrees C)
• Transparency: Transparent
• Liner: 58 polycoated kraft paper
• Unit of Measure: Roll
• Package Weight: 0.36 pounds
• Package Length: 8.3 inches
• Package Width: 8.3 inches
• Package Height: 13.6 inches
• UPC: 00021200396144

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100017255
