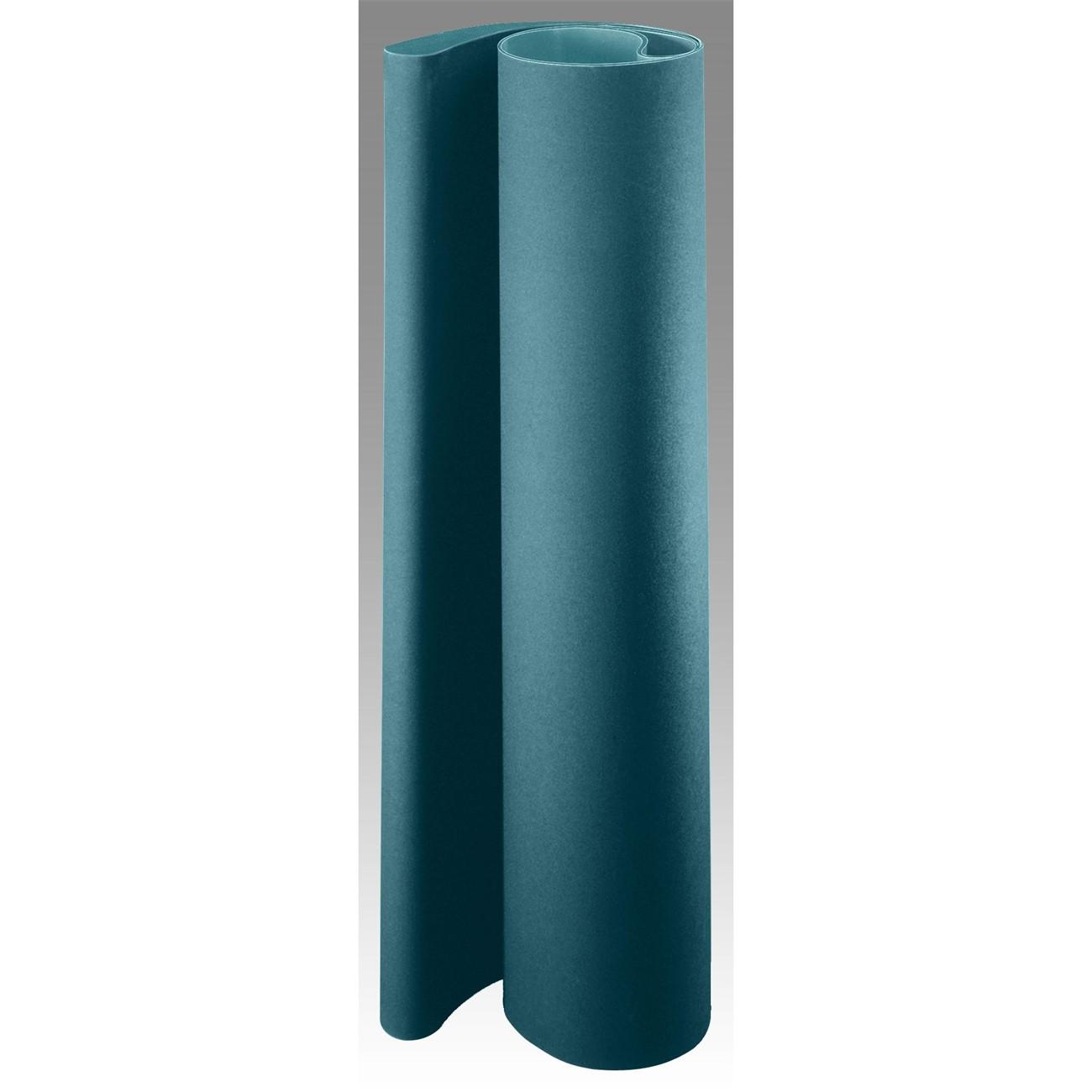

3M 7100014009 Scotch-brite Surface Conditioning Belt 75x25 in

Product Description

The 3M 7100014009 is a Scotch-Brite Surface Conditioning Film Backed Belt designed for cleaning, finishing, blending, and deburring applications across metal fabrication, woodworking, and industrial maintenance tasks. The belt features a smooth, tough, stretch-resistant nylon film backing that pairs well with platens and stroke sanders where reduced friction on the back of the belt is required. The non-woven construction uses aluminum oxide mineral bonded with resin, and the open fiber structure helps debris escape during use, reducing loading and extending belt life. Measuring 75 inches in length and 25 inches in width, this belt suits wide-format sanding and surface conditioning equipment. Licensed tradespeople and maintenance technicians in metal finishing and fabrication shops are the primary installers and users.

This belt is suited for industrial and commercial environments where consistent surface conditioning results are needed across multiple passes. Typical applications include weld blending, part deburring, scale removal, and general surface preparation on metal, wood, or composite substrates. The gradual fiber breakdown characteristic of the non-woven construction exposes fresh mineral continuously, maintaining a consistent cut rate throughout the belt's service life. It is well matched for use on stroke sanders and wide belt sanding machines that operate with platens or contact drums.

Key Features

• Non-woven nylon fiber construction reduces loading by allowing debris to escape between fibers
• Stretch-resistant nylon film backing maintains close, ongoing cutting action under tension
• Film backing reduces friction on the back of the belt, making it effective on stroke sanders
• Gradual fiber breakdown reveals fresh aluminum oxide mineral for consistent cut performance across the belt's life
• Resin bond construction suits multi-purpose use including cleaning, finishing, blending, and deburring
• Large 75 inch by 25 inch format fits wide-format industrial sanding equipment

Compatibility

Designed for use on wide-belt stroke sanders and platen-style sanding machines that accept belts measuring 75 inches in length by 25 inches in width. Confirm machine belt size specifications before installation.

Installation Notes

Installation of wide-format abrasive belts should be performed by qualified maintenance technicians or machine operators following the equipment manufacturer's belt-change procedures. Power down and lock out the sanding machine before removing or installing any belt. Verify belt tracking tension and direction-of-travel arrow alignment prior to restarting the machine. Inspect the platen and contact drum surfaces for wear or contamination before mounting a new belt.

Technical Specifications

• Belt Length: 75 inches
• Belt Width: 25 inches
• Backing Material: Nylon film
• Construction: Non-woven
• Mineral: Aluminum oxide
• Bond Type: Resin
• Weight: 10 pounds
• UOM: Each
• UPC: 00048011180120

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100014009
