3M 7100011690 Electrical Grounding Braid 25

Product Description

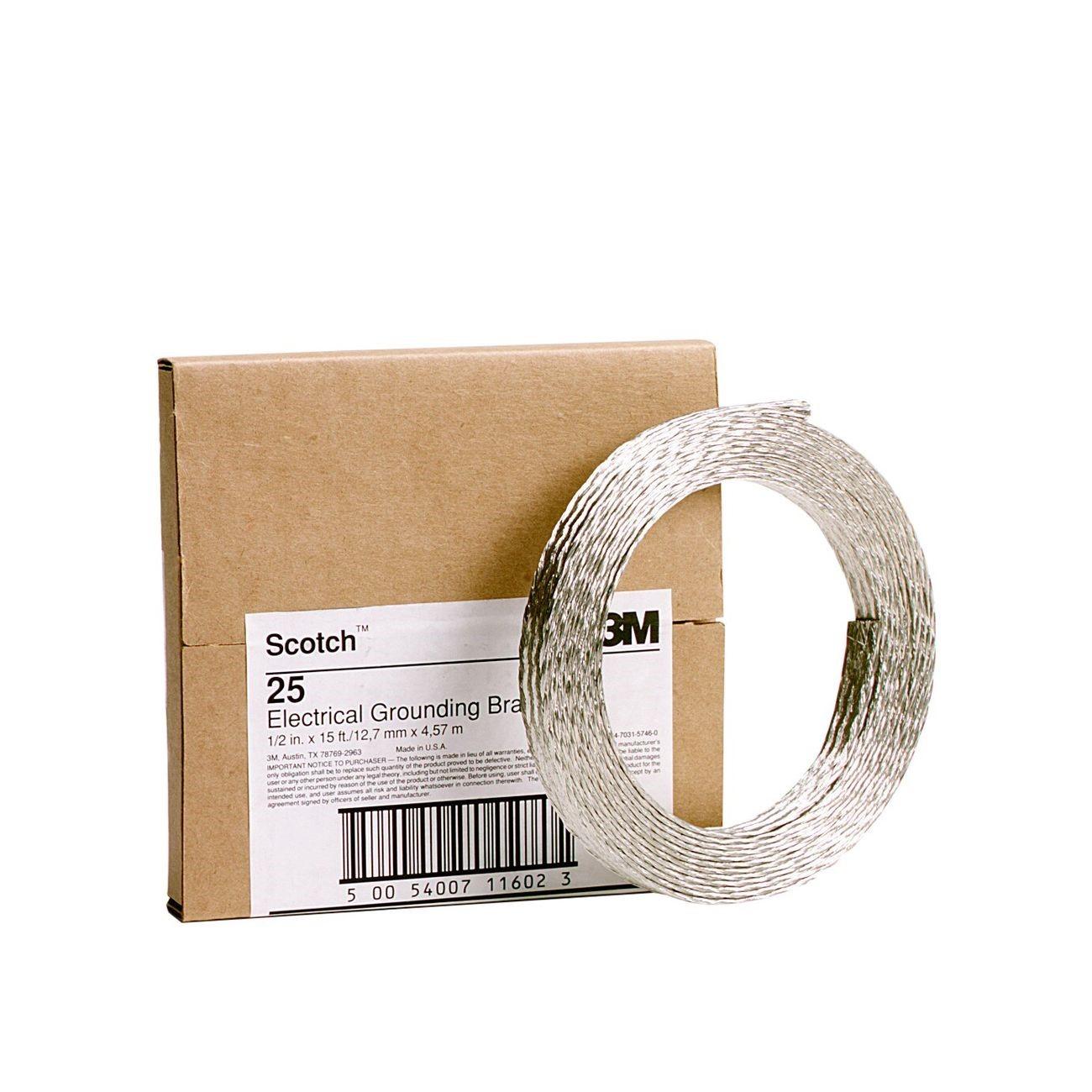

The 3M 7100011690 is a flat, all-metal woven electrical grounding braid sold as a single roll. Marketed under the Scotch Electrical line, this grounding braid is constructed entirely of metal strands woven into a flat, flexible profile that maintains reliable electrical continuity along its full length. It is designed for use in high-voltage cable splicing and terminating applications where a secure, low-resistance ground path is required. Licensed electricians and high-voltage cable splicers install this product as part of cable termination assemblies in utility, industrial, and commercial electrical systems.

This grounding braid is suited for environments where cables must be properly bonded and grounded during splicing or terminating procedures. Its all-metal construction makes it compatible with all common power cable insulation types as well as high-voltage splicing and terminating materials. It is a practical component for medium- and high-voltage cable work in both new construction and maintenance contexts.

Key Features

• Flat, all-metal woven construction for consistent electrical contact and flexibility
• Compatible with all power cable insulation types
• Suitable for use with high-voltage splicing and terminating materials
• Sold by the roll for use across multiple terminations or splices
• Low-profile flat braid conforms to cable geometry during installation

Compatibility

Compatible with all power cable insulations and high-voltage splicing and terminating materials as stated by the manufacturer.

Installation Notes

Installation should be performed by a qualified electrician or certified cable splicer following applicable NEC requirements and local electrical codes. De-energize and verify the absence of voltage on all conductors before beginning any splicing or terminating work. Ensure the braid makes full metal-to-metal contact with the grounding conductor or shield to maintain a proper ground path. Do not substitute this braid for components with different current-carrying ratings than required by the cable assembly design.

Technical Specifications

• Weight: 1 pound
• Unit of Measure: Roll
• Minimum Order Quantity: 1
• UPC: 00054007116028

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100011690
