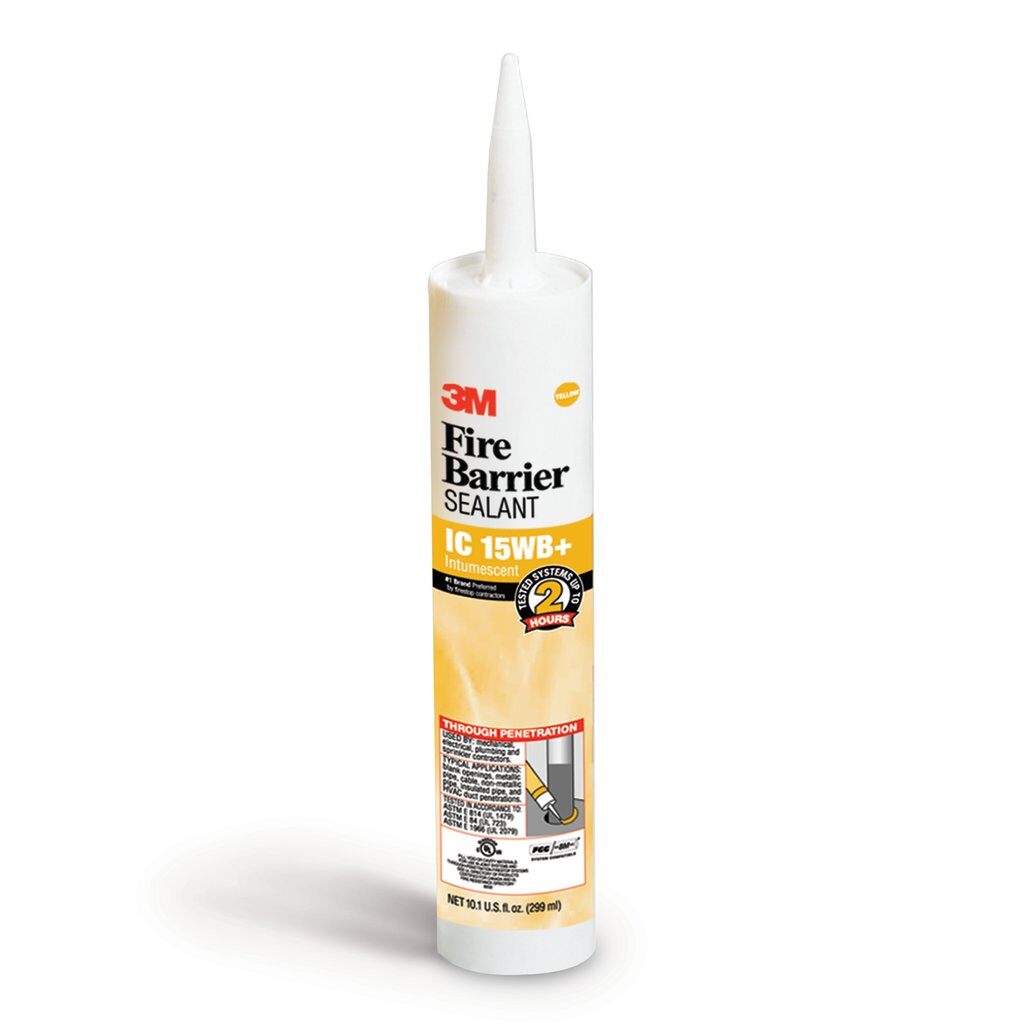

3M 7100011413 Fire Barrier Caulk Ic15wb+ 10.1 Oz

Product Description

The 3M 7100011413 Fire Barrier Caulk IC15WB+ is a one-part, gun-grade, intumescent firestop sealant that provides up to 3-hour fire protection in tested and listed systems. This sealant helps prevent the spread of fire, smoke, and noxious gas, while also acting as an acoustic barrier to minimize noise transfer. It is water-based, paintable, and offers exceptional adhesion.

• Provides up to 3-hour fire protection
• Helps prevent the spread of fire, smoke and noxious gas
• Acts as an acoustic barrier to help minimize noise transfer

Product Highlights

This fire barrier caulk is firestop tested, easy to apply, and clean up. It is sag-resistant and offers excellent adhesion for long-term performance.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100011413
• Country of Origin: USA

Technical Specifications

• Brand: 3M
• MPN: 7100011413
• Category 1: ADHESIVES SEALANTS & TAPES
• Category 2: SEALING PRODUCTS
• Application: HVAC Ducts and Vents, Metallic and Non-Metallic Pipes, Blank Openings, Single and Bundled Cables, Insulated Pipe, Pipe and Cable Through Penetrations, Busways, Combos, Rated Wall, Floor and Floor-Ceiling Assemblies and Static Construction Joints Applications
• Base: Latex
• Coverage: 29 linear ft
• Curing Time: 72 hr
• Drying Time: 30 to 60 min
• Fire Rating: 3 hr
• Flammability Rating: 1
• Flash Point: 93 deg C
• Odor Scent: Mild
• Specific Gravity: 1.4
• Standards/Approvals: ASTM E814|UL 1479|ASTM E1966|UL 2079|CAN/ULC S115|IBC Certified|IRC Certified|IFC Certified|IPC Certified|IMC Certified|NFPA 5000|NEC Certified|NFPA 70|NFPA 101|UL Listed
• Temperature Rating: 4 to 50 deg C
• VOC Content: <=4 g/L
• pH Range: 8 to 9
• Tensile Strength: 85 lb/in
• Material: latex
• Container Size: 10.1 oz
• Product Type: Sealant
• Used With: Fire-Rated Floors, Floor/Ceilings or Walls, Metallic Pipe, Plastic Pipe, Conduit, Power and Communication Cable, Cable Trays, Busways, Combos
• 3M Number: IC 15WB+
• Maximum Operating Temperature: 180 °F
• Intumescent: Intumescent
• Product Form: Paste
• Package Type: Cartridge
• Application Temperature Range: 40 to 122 °F
• Shore Hardness: 70 Shore A
• Required Applicator: Caulk Gun
• Hazardous Shipping: NOT REGULATED

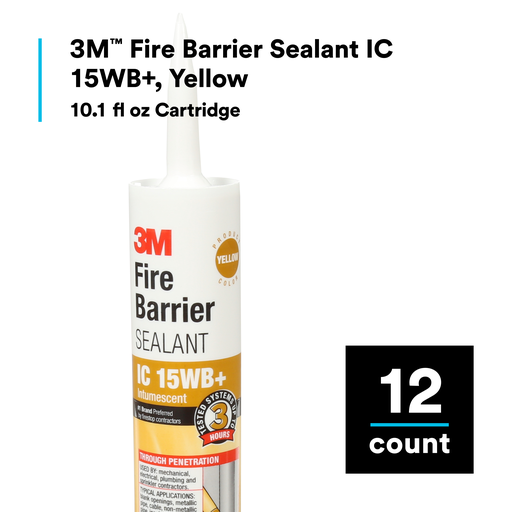

• Package Quantity: 10.1 fl oz per inner, 12 per case
