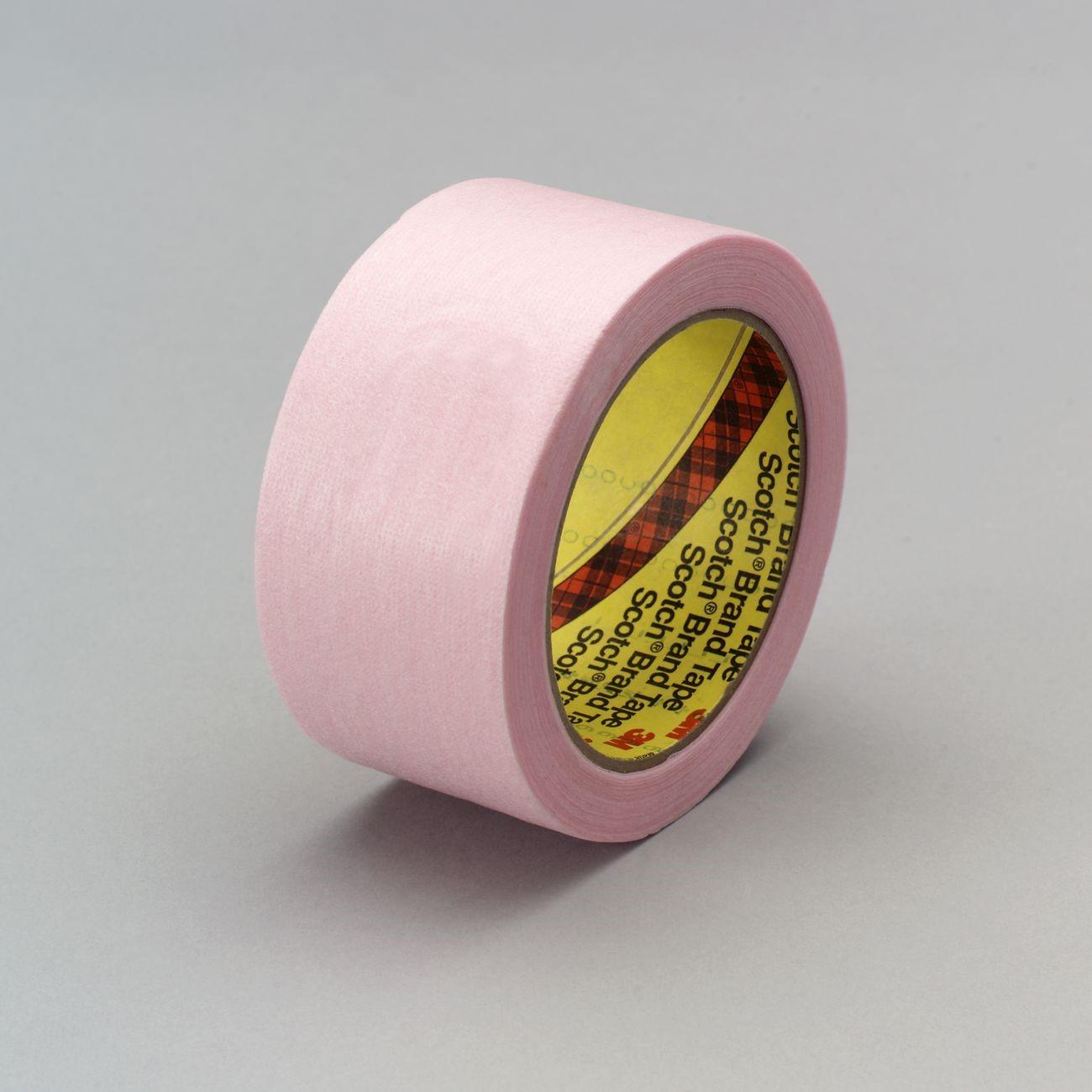

3M 7100008182 Venting Tape Pink 3/4 in X 36 Yd 4.0 Mil

Product Description

The 3M 7100008182 is a pink venting tape designed for applications that require controlled outgassing during foam insulation processes. The non-woven backing is air permeable, allowing trapped gases to escape while the tape remains in place. The acrylic adhesive is strip-coated, meaning uncoated areas on the adhesive layer provide elevated permeability to help minimize foaming voids. The tape measures 3/4 inches wide by 36 yards long and is built to a 4.0 mil thickness. Installers working with foam insulation systems and enclosure venting applications will find this tape suited to high outgassing-rate requirements.

This tape is used in venting applications where foam insulation must be confined while gas is allowed to escape during the curing or expansion process. It is appropriate for HVAC insulation work, electronic component potting, and other industrial or construction scenarios where outgassing control is critical. The pink color aids in visual identification during installation.

Key Features

• Air-permeable non-woven backing allows controlled outgassing
• Strip-coated acrylic adhesive provides higher permeability in uncoated zones to reduce foaming voids
• 4.0 mil total tape thickness for handling durability
• 3/4 inch width suitable for tight or detailed venting layouts
• Pink color for easy visual identification on the job
• 36-yard roll length reduces changeover frequency on larger jobs

Compatibility

Designed for venting applications requiring high outgassing rates, including foam insulation confinement in HVAC, construction, and industrial assembly contexts.

Installation Notes

This tape is installed by hand and requires no special tools beyond a tape dispenser or knife for cutting. Surfaces should be clean, dry, and free of dust or oils before application to ensure proper adhesion. Because the product is intended for outgassing applications, avoid applying additional layers of non-permeable tape over it, as doing so will defeat its venting function. Follow the foam manufacturer guidelines for compatible taping materials and coverage requirements.

Technical Specifications

• Tape Thickness: 4.0 mil
• Width: 3/4 inches
• Length: 36 yards
• Backing Type: Air-permeable non-woven
• Adhesive Type: Strip-coated acrylic
• Color: Pink
• Package Form: Roll
• Weight: 0.13 pounds

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100008182
