Product Description

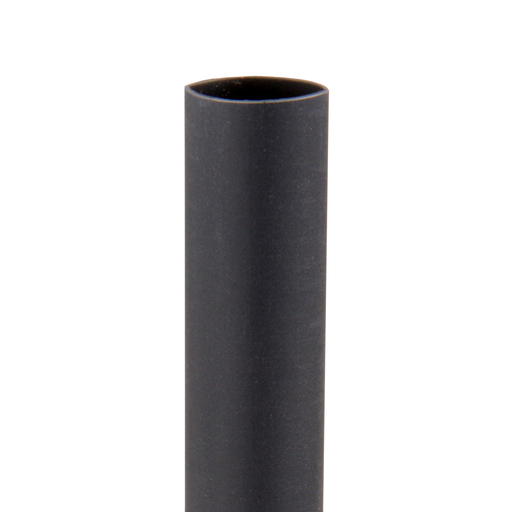

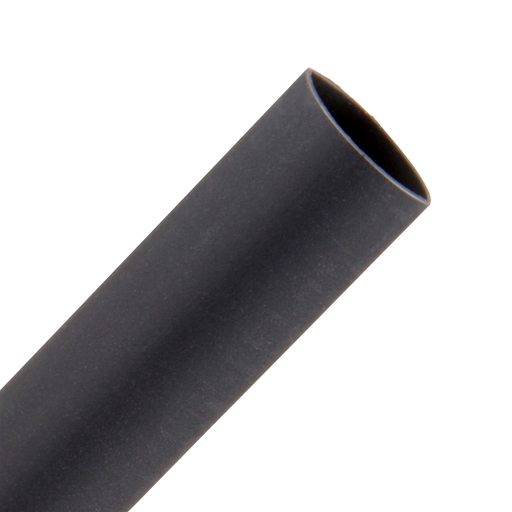

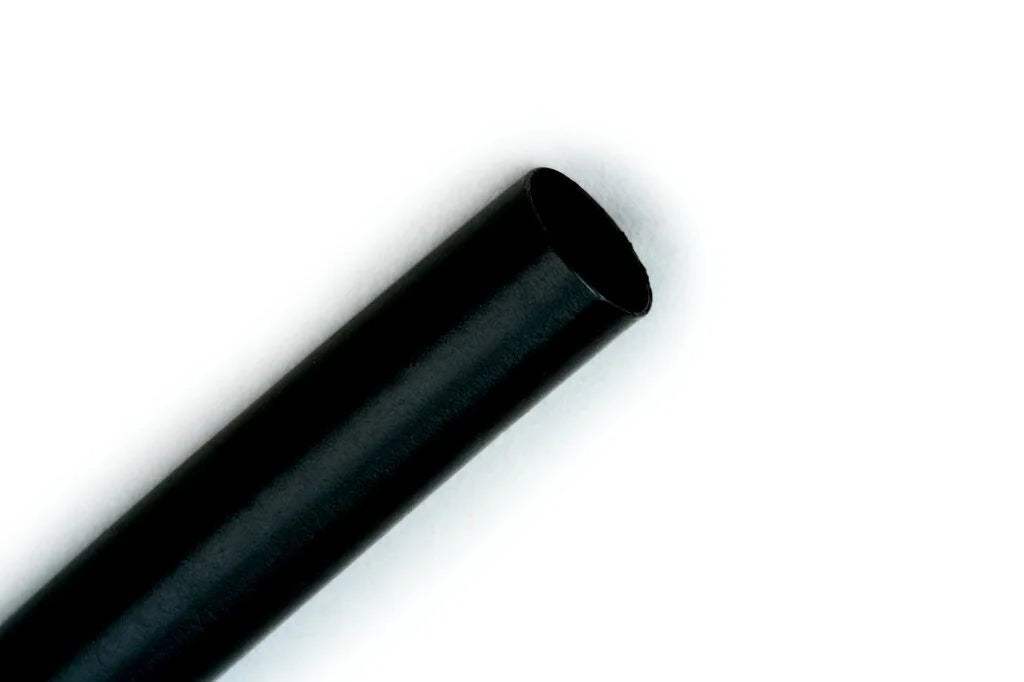

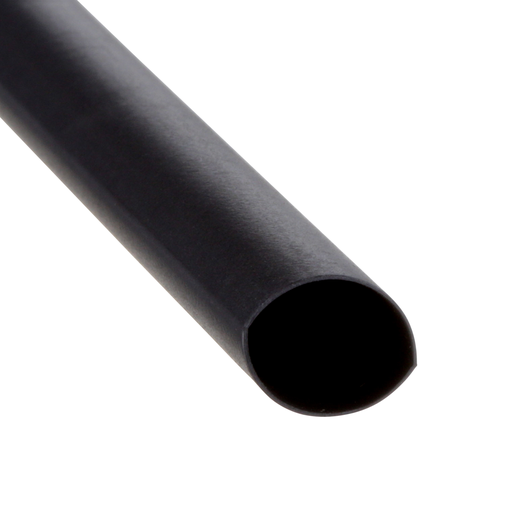

The 3M 7100007365 Heat Shrink Tubing FP-301 offers a balance of electrical, physical, and chemical properties suitable for industrial and military uses. This thin-wall tubing provides flame retardant insulation for 600V applications and has a 2:1 shrink ratio. Constructed from flexible polyolefin, it offers moisture seal protection and is ideal for wire harnessing and component packaging.
- Balances electrical, physical, and chemical properties
- Offers shrink-fit protection and strain relief
- Suitable for wire-harness covering, wire marking, and component packaging
Product Highlights
This flame-retardant tubing is rated for 600V applications and withstands temperatures from -67 to 275 degrees F.
Product Information
Standard Information
-
Brand: 3M
-
Manufacturer Part Number: 7100007365
-
Country of Origin: US
Technical Specifications
-
MPN: 7100007365
-
Manufacturer: 3M
-
Brand: 3M
-
UOM: Each
-
ProductCategory: Electrical Products
-
Application: Lightweight Wire Harness Covering, Fire-Resistant Covering, Wire Marking, Wire Bundling and Component Packaging Applications
-
Inner Diameter Expanded: 3/8 in
-
Inner Diameter Recovered: 0.187 in
-
Material: Polyolefin
-
Series: FP-301
-
Shrink Ratio: 2:1
-
Shrink Temperature: 212 deg F
-
Temperature Rating: -67 to 275 deg F
-
Type: Corrosion-Resistant Flame-Retardant Flexible General Purpose
-
Voltage Rating: 600 VAC
-
Wall Thickness Recovered: 0.025 in
-
Wall Type: Thin
-
Dielectric Strength: 900 V/mil
-
Max Operating Temperature: 135.0 degrees C
-
Operating Temperature: -55 degrees C
-
Size: 0.375 in
-
Tensile Strength: 2400 lb/in
-
Voltage: 600 Volt
-
Inside Diameter: 0.187
-
Length: 48 Inch
-
Outside Diameter: 0.375 in
-
Overall Length: 48.0 in
-
Thickness: 0.025
-
Flame Retardant: Yes
