3M 7100006702 Copper One Hole Lug 2 Awg 35 Kv Brown

Product Description

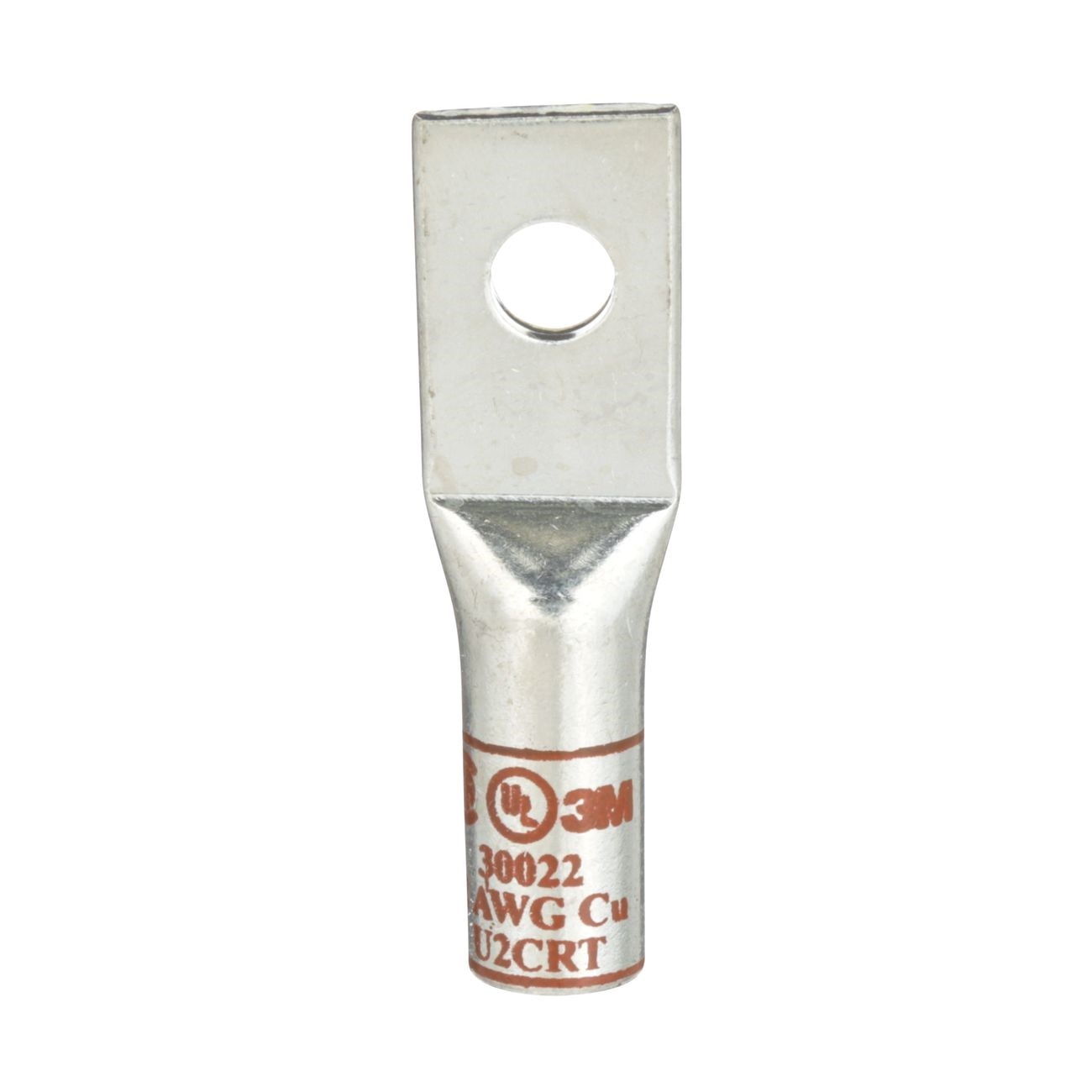

The 3M 7100006702 is a copper one-hole lug rated for use on copper conductors up to 35 kV. Manufactured as a single-piece, seamless, high-conductivity copper body, this lug delivers reliable mechanical and electrical termination without the weak points associated with multi-piece construction. It accepts 2 AWG copper conductors and features a 1/4 inch stud size, a 0.307 inch inner diameter, and an overall length of 1.970 inches. Electricians and high-voltage cable termination specialists use this lug in medium-voltage power distribution applications where long-term conductivity and mechanical integrity are critical.

This lug is suited for medium-voltage electrical installations up to 35 kV. Its brown color coding aids identification during installation and inspection. The single-hole mounting design simplifies connection to bus bars, switchgear, transformers, and similar termination points. It is intended for use with copper conductors only and is sold individually, with a minimum order quantity of 25 units per purchase.

Key Features

• One-piece seamless copper construction for high conductivity and mechanical strength
• Rated for medium-voltage applications up to 35 kV
• Accepts 2 AWG copper conductors
• 1/4 inch stud size for standard single-hole mounting
• 0.307 inch inner diameter and 1.970 inch body length
• Brown color coding for quick field identification

Compatibility

Designed for use with copper conductors only in medium-voltage termination applications up to 35 kV. Consult system specifications to confirm stud size and conductor gauge compatibility before installation.

Installation Notes

Installation should be performed by a licensed electrician familiar with medium-voltage termination practices and applicable NEC requirements. De-energize and lock out the circuit before beginning any termination work. Use a calibrated compression tool sized for the conductor gauge and lug barrel to ensure a proper crimp. Do not use this lug with aluminum conductors.

Technical Specifications

• Conductor Type: Copper only
• Conductor Size: 2 AWG
• Voltage Rating: Up to 35 kV
• Stud Size: 1/4 inch
• Inner Diameter: 0.307 inches
• Body Length: 1.970 inches
• Material: Seamless high-conductivity copper
• Color: Brown
• Weight: 0.04 pounds
• Sold As: Each
• Minimum Order Quantity: 25

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100006702
