3M 7100003296 Conductive Cushioning Gasket Tape 500mm X 50m

Product Description

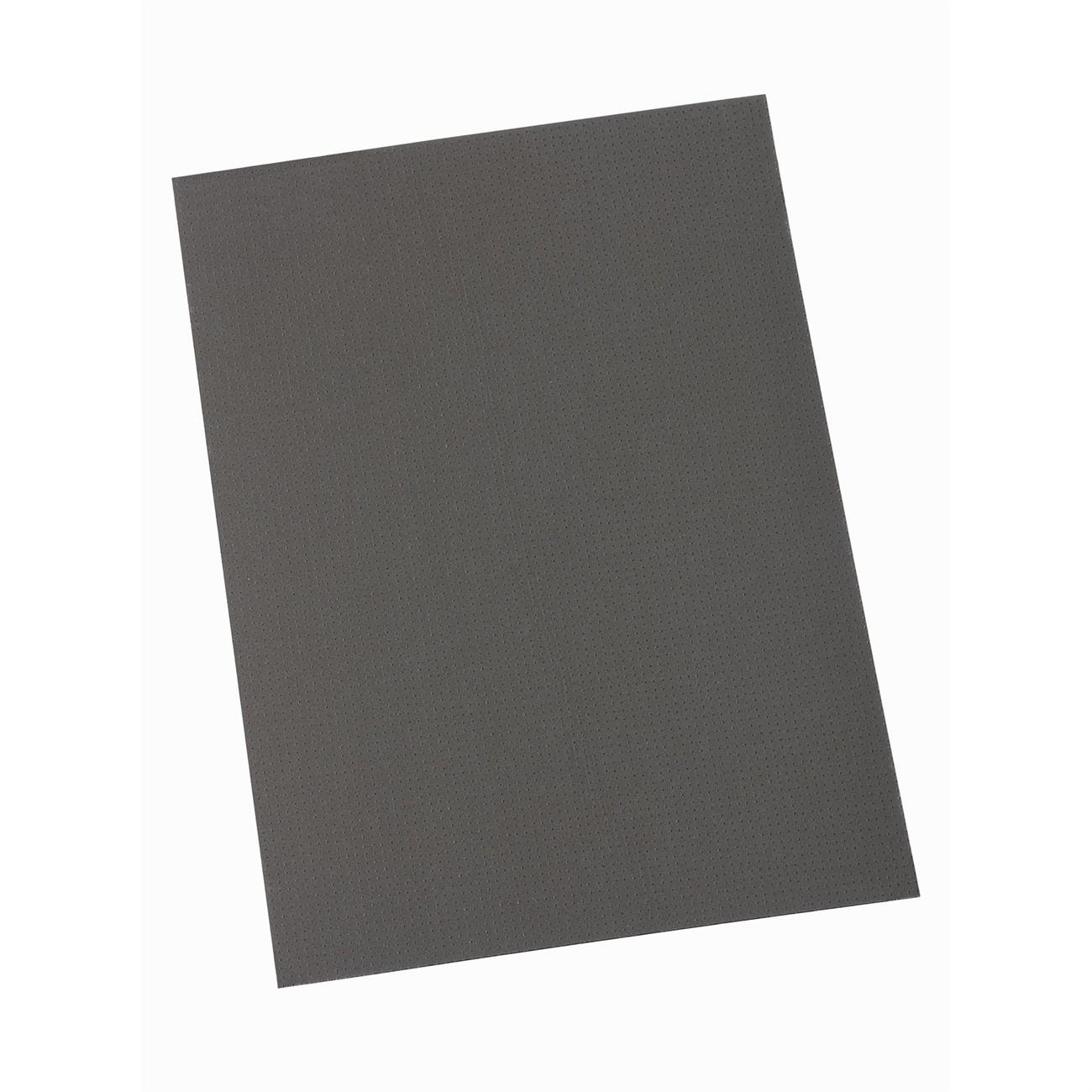

The 3M 7100003296 is an electrically conductive compressible gasket tape designed for applications requiring both reliable electrical grounding and effective gap filling. Supplied in a single-coated tape format, it measures 500 millimeters wide, 50 meters long, and 0.52 millimeters thick per roll. The construction delivers good electrical conductivity alongside excellent cushion and recovery properties, making it a practical solution for EMI shielding assemblies, enclosure sealing, and grounding interfaces where compression and conformability are critical to performance.

This gasket tape is suited for use in electronic enclosures, control panels, and shielded equipment housings where maintaining a continuous conductive path across a gasketed joint is essential. Installers working on EMI-sensitive assemblies, industrial controls, or telecommunications enclosures will find it applicable wherever a compressible, conductive interface is required. The roll format supports efficient application across long seams or multiple cutouts on a single assembly run.

Key Features

• Electrically conductive single-coated tape format provides reliable grounding potential across gasketed joints
• Excellent cushion and recovery properties maintain contact pressure over compression cycles
• Good gap filling performance accommodates surface irregularities in mating flanges or enclosure edges
• 0.52 millimeter thickness suits tight-tolerance assemblies requiring a thin conductive interface
• Large-format roll — 500 millimeters wide by 50 meters long — reduces changeovers on high-volume fabrication runs

Compatibility

Designed as an OEM-style conductive gasket tape for use in EMI shielding, grounding, and gap-sealing applications in electronic enclosures and shielded assemblies.

Installation Notes

Application is typically performed by electronics assembly technicians or industrial electricians familiar with EMI shielding practices. Ensure mating surfaces are clean, dry, and free of oils or oxidation before applying the tape to achieve proper adhesion and conductivity. Cut to length using a sharp blade and straight edge to maintain clean, consistent gasket edges. Follow applicable enclosure and equipment grounding requirements per NEC guidelines when integrating into electrical assemblies.

Technical Specifications

• Width: 500 millimeters
• Length: 50 meters per roll
• Thickness: 0.52 millimeters
• Format: Single-coated tape roll
• Unit of Measure: Roll
• UPC: 00051115529115

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100003296
