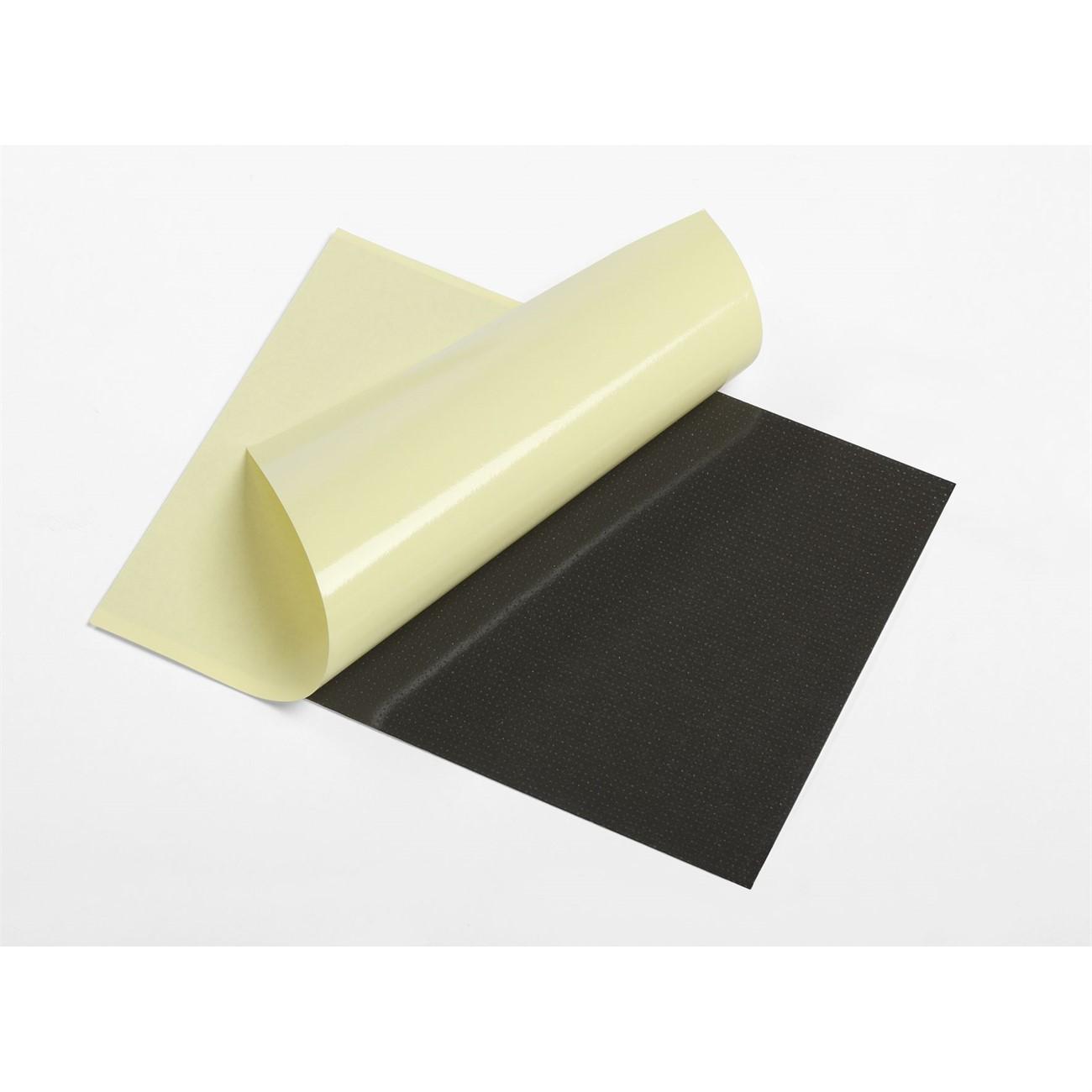

3M 7100003295 Conductive Cushioning Gasket Tape ECG-8035H

Product Description

The 3M 7100003295 is an electrically conductive cushioning gasket tape, sold in a double-coated roll format. It combines reliable electrical conductivity with strong cushion and recovery properties, making it suitable for EMI shielding, grounding, and gasketing applications in electronic assemblies and enclosures. The roll measures 500mm wide by 50 meters long with a thickness of 0.35mm. Electrical and electronics technicians use this tape where both compliance under compression and a continuous conductive path are required across mating surfaces or panel joints.

This gasket tape is used in applications that require simultaneous mechanical cushioning and electrical continuity. Typical install scenarios include EMI shielding gaskets in enclosure panels, grounding strips in electronic cabinets, and conductive seals between dissimilar metal surfaces. It is well suited for both prototype assembly work and production-line installation in commercial electronics, telecommunications equipment, and industrial control enclosures. The roll format allows field-cut segments to match varied joint lengths and geometries.

Key Features

• Double-coated tape format for bonding to mating surfaces on both faces
• Electrically conductive construction supports EMI shielding and grounding continuity
• Cushion and recovery properties maintain contact pressure under repeated compression
• 0.35mm thickness suits tight-tolerance gaps in electronic enclosures
• 500mm x 50m roll format allows field cutting to required length and width

Compatibility

Designed as an OEM-style electrically conductive gasket tape for use in electronic assemblies, enclosure panels, and shielding applications requiring both cushion compliance and electrical conductivity.

Installation Notes

Installation is typically performed by electronics technicians or electricians working on shielded enclosures and control panels. Always de-energize and lockout equipment before applying or replacing conductive gasket materials on live assemblies. Surfaces should be clean, dry, and free of oils or oxides before application to ensure consistent adhesion and electrical contact. Cut tape to length using a straight edge and sharp blade to maintain clean edges at joint terminations.

Technical Specifications

• Roll Width: 500mm
• Roll Length: 50 meters
• Thickness: 0.35mm
• Format: Double-coated roll
• Unit of Measure: Roll
• Weight: 68.92 pounds
• UPC: 00051115529399

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7100003295
