3M 7012819231 Personal S-R Lifeline 3500285 (8 ft)

Product Description

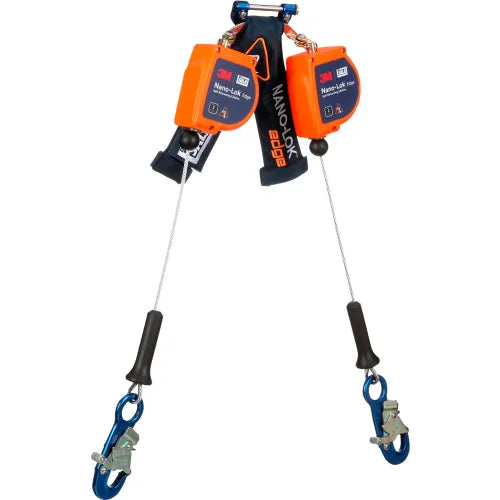

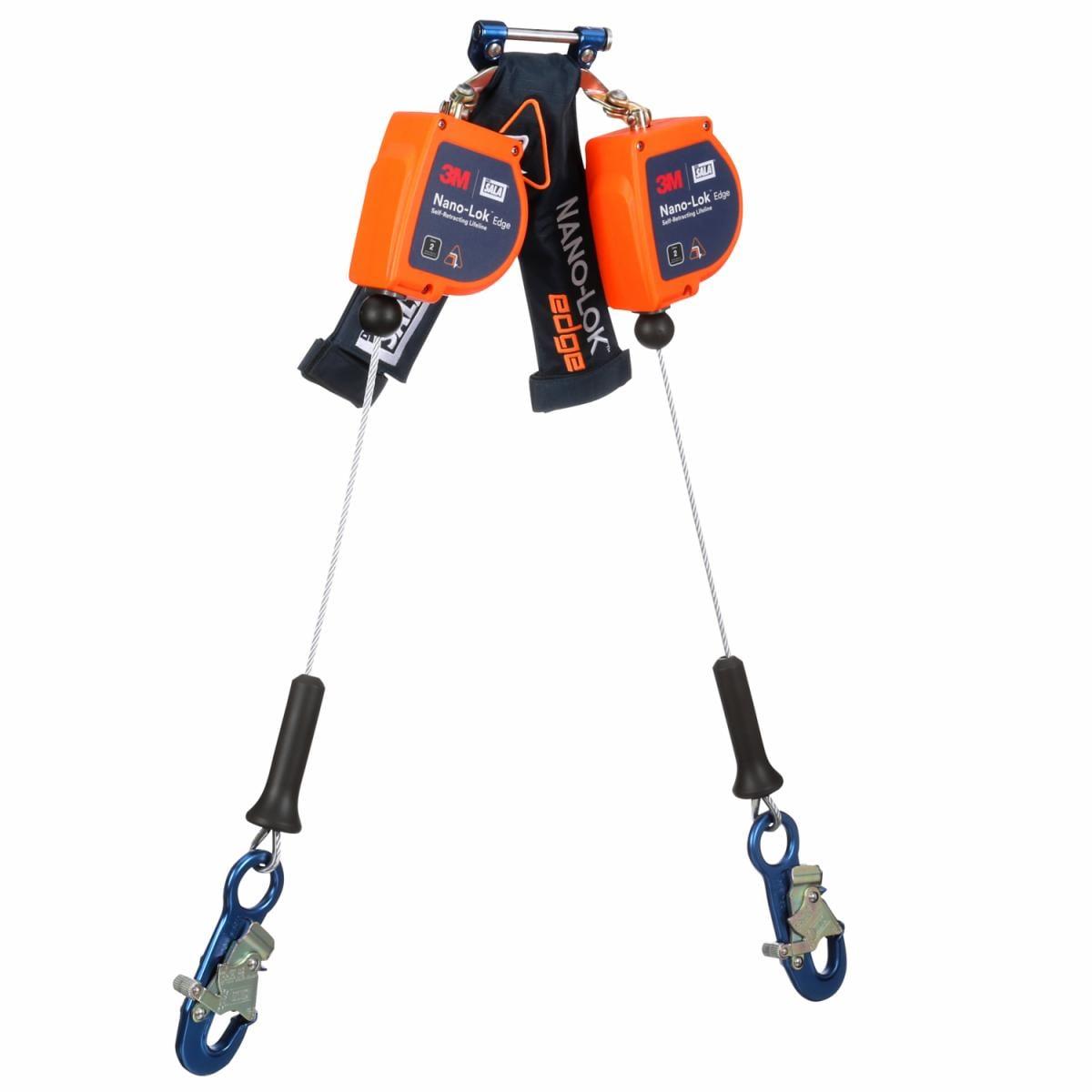

The 3M 7012819231 is a personal S-R lifeline (Nano-Lok Edge model 3500285) with an 8 ft galvanized lifeline designed for personal fall protection. The device functions as a self-retracting lifeline (SRL) with a quick-activating speed-sensing brake, built-in connector for direct harness attachment, and a high-capacity external energy absorber with impact indicator. It is intended for single-user leading-edge and foot-level tie-off applications and meets applicable OSHA and ANSI standards.

• 420 lb (190 kg) maximum capacity; ANSI Class 2 SRL rated for leading-edge applications
• 8 ft (2.44 m) galvanized cable lifeline with aluminum snap hook and single-pin harness connector
• Quick-activating speed-sensing brake, external energy absorber with impact indicator, and RFID equipped

Product Highlights

Nano-Lok Edge twin-leg personal SRL, direct-to-harness mounting, 8 ft galvanized cable, ANSI/OSHA compliant

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7012819231
• Country of Origin: United States

Technical Specifications

• Brand: 3M
• Manufacturer Part Number: 7012819231
• Model / Product ID: 3500285
• Series: Nano-Lok Edge
• Product Type: Self-Retracting Lifeline (SRL)
• Capacity / Load: 420 lb (190 kg)
• Length: 8 ft (2.44 m)
• Lifeline Material: Galvanized cable / galvanized steel
• Hardware Material: Aluminum; stainless steel components
• Housing Material: Nylon thermoplastic
• Number of Legs: Twin-leg (2)
• Mounting Type: Direct to harness back
• Harness Connection Type: Single-pin connector
• Lifeline Connection Type: Snap hook
• ANSI / OSHA Standards: ANSI/ASSP Z359.14-2021; 29 CFR OSHA 1910.140; 29 CFR OSHA 1926.502
• ANSI SRL Class Level: Class 2
• Average Arrest Force: 4 kN (ANSI) / 900 lbf
• Maximum Arrest Force: 6.3 kN (ANSI) / 1425 lbf
• Maximum Number of Users: One
• Net Weight: 7.94 lb (3.60 kg)
• Country of Origin: United States
• Features: Quick-activating speed-sensing brake; high-capacity external energy absorber with impact indicator; RFID equipped; portable and removable
• Recommended Application: Leading edge; foot-level tie-off
• Install Type: Portable and removable
