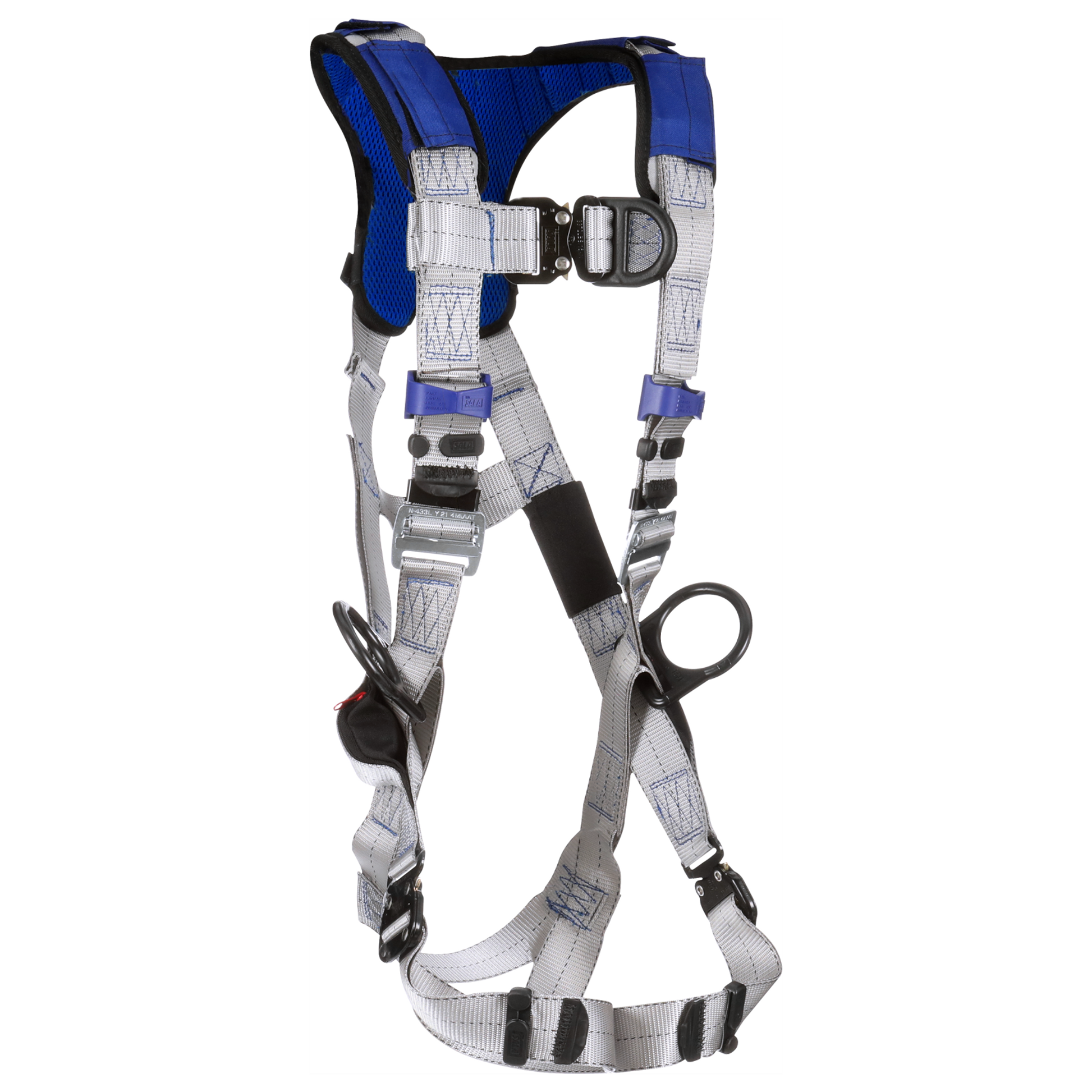

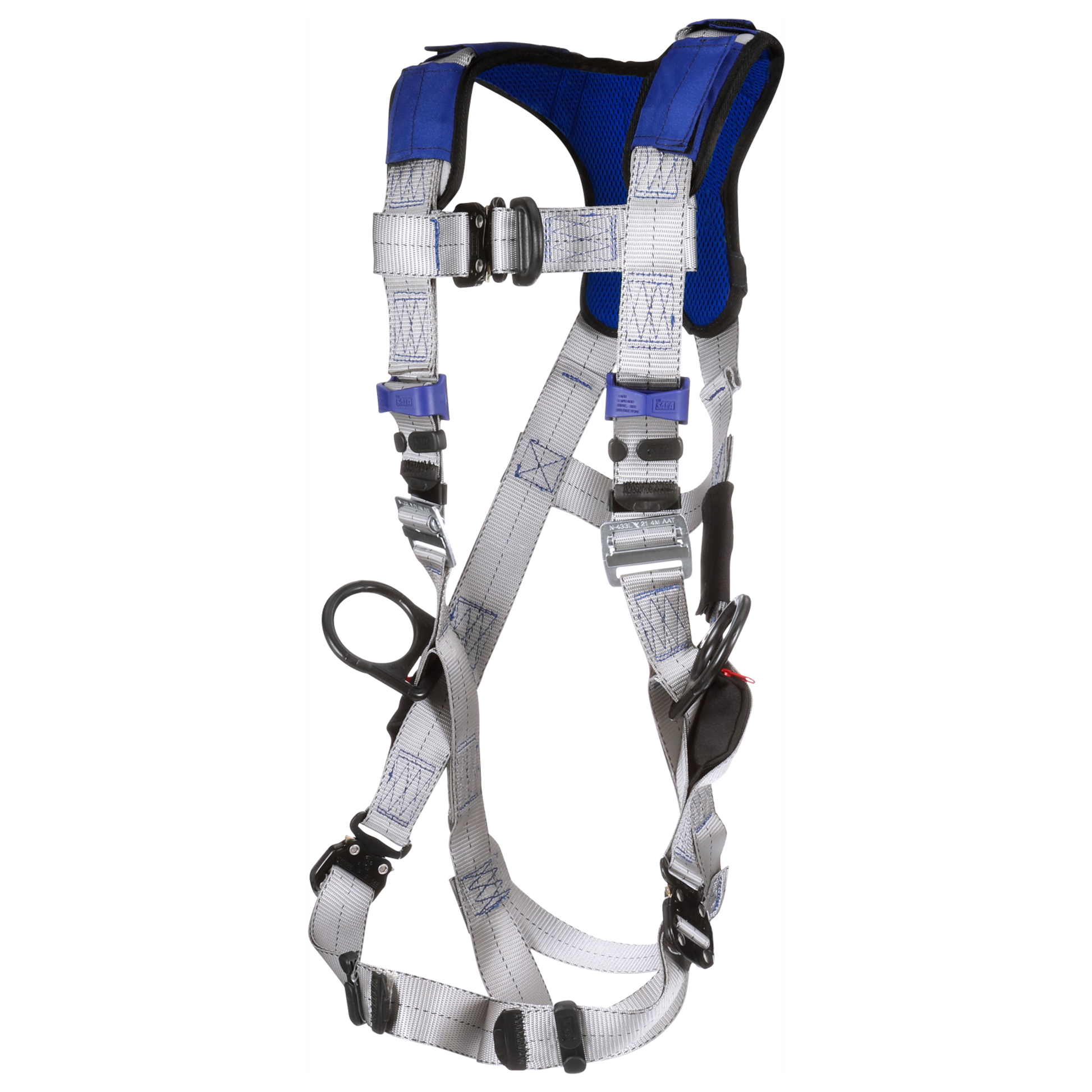

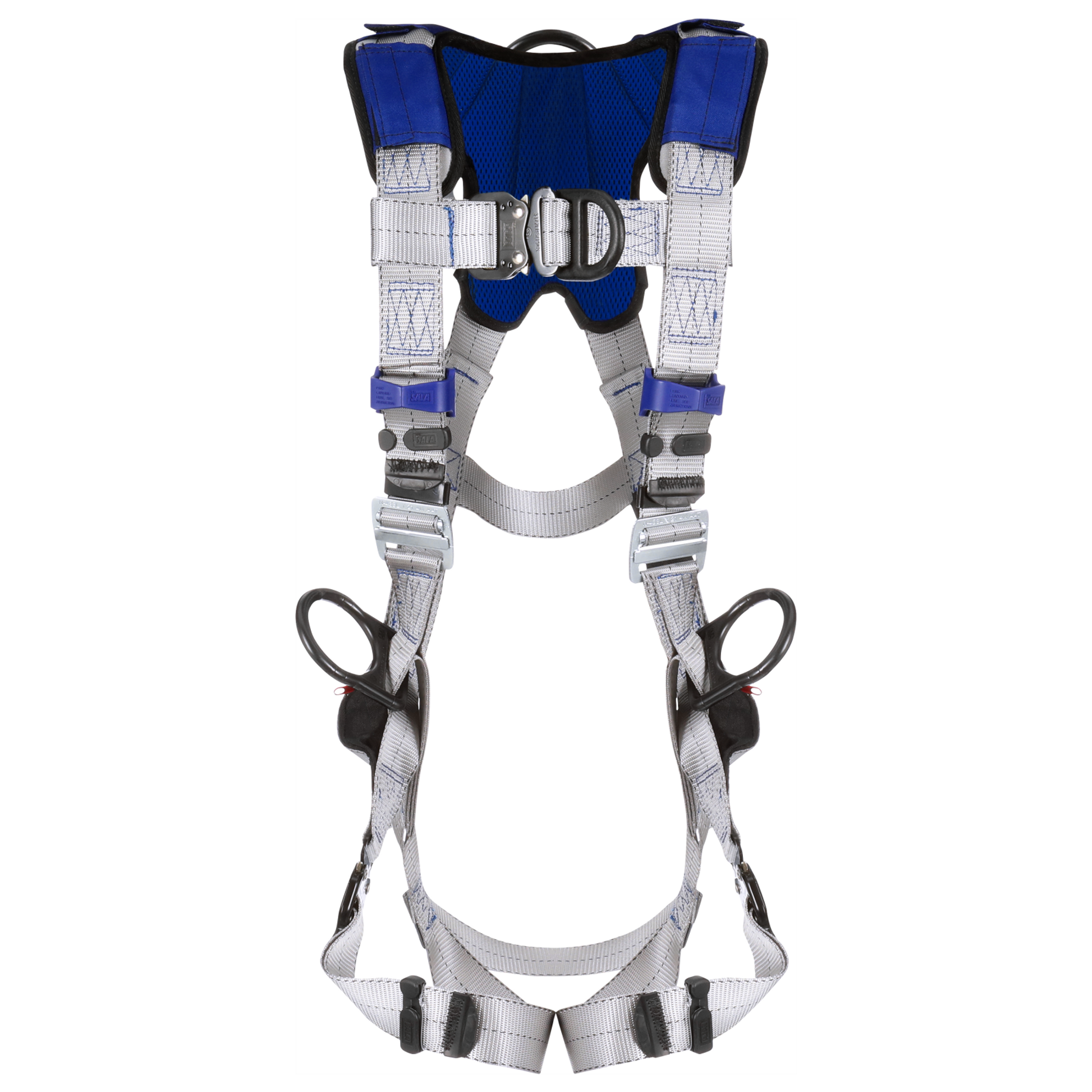

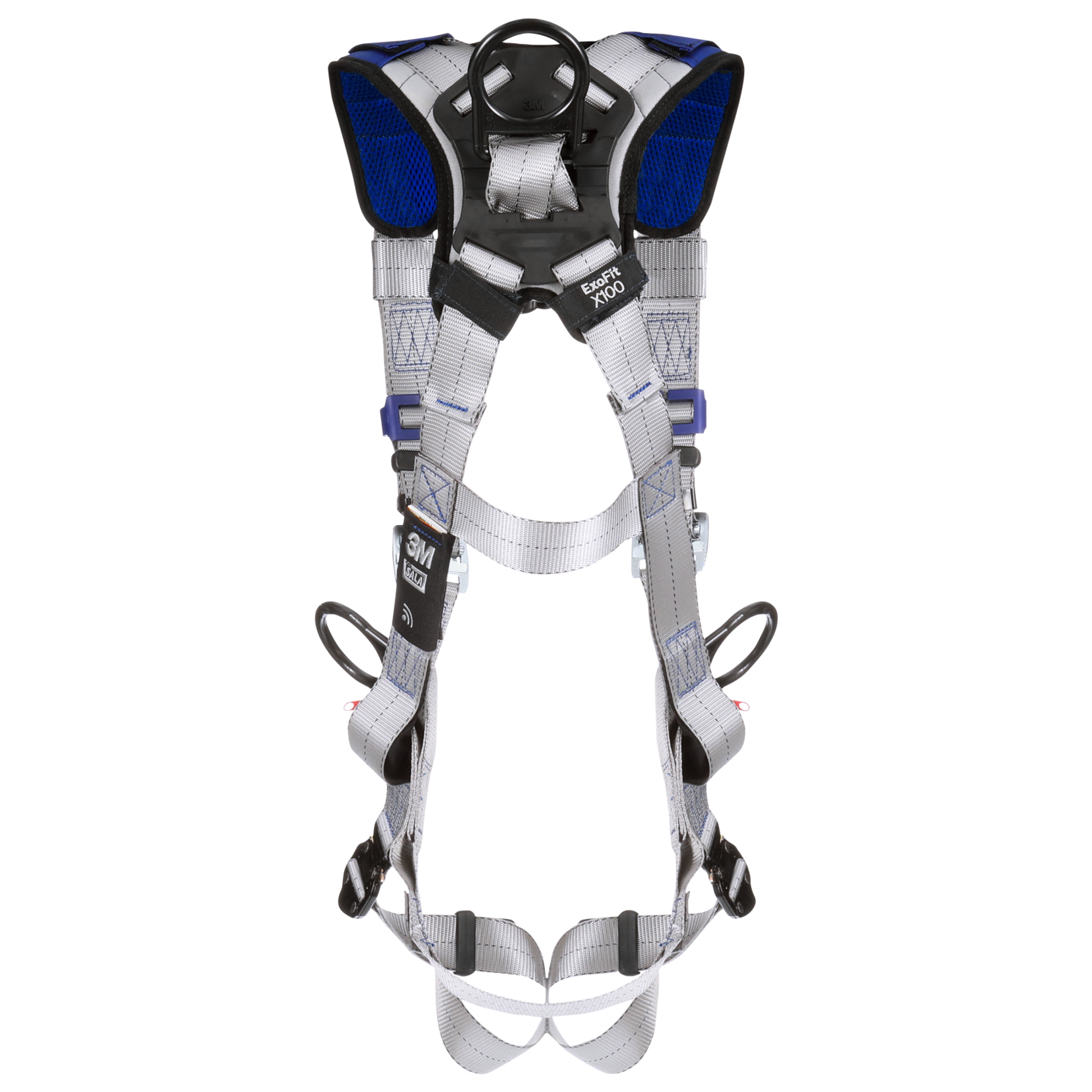

3M 7012817710 Climbing/Positioning Safety Harness MD 1401229

Product Description

The 3M 7012817710 is a Climbing/Positioning Safety Harness, model 1401229 MD, designed for work at height. This harness features 6,000lb polyester webbing and robust alloy steel hardware, supporting a 420 lb load capacity. It is equipped with quick-connect leg strap buckles and D-ring shoulder strap buckles for secure fastening. The design includes an anti-slide back D-ring plate, which helps reduce dorsal D-ring slide and facilitates connecting personal SRLs, making it suitable for climbing and positioning applications.

• Equipped with anti-sliding dorsal D-ring pad to help greatly reduce dorsal D-ring slide.
• Integrated SRL adapter lets you quickly and easily connect and disconnect personal SRLs.
• Suspension trauma relief straps with low-profile design included.

Product Highlights

Safety harness with 6,000lb polyester webbing, 420 lb load capacity, and quick-connect buckles for climbing and positioning.

Product Information

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7012817710
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: 7012817710
• Height: 4.60
• Length: 20.25
• Width: 15.50
• Country of Origin: United States
• Brand: 3M DBI-SALA
• Manufacturer: 3M
• Series: 1401229
• Size: M
• Load Capacity: 420 lb
• Leg Strap Buckle Type: Quick-Connect
• Shoulder Strap Buckle Type: D-Ring
• Strap Material: Polyester
• Part Number: 3MABR-1401229
• Weight Capacity (kg): 190
• Belly Pad: No
• Body Belt: No
• Chest Buckle Material: Steel, zinc-plated black electro-deposition paint
• Chest Connection Type: Quick Connect
• Connected Safety ID Equipped: Yes
• D-ring Material: PVC Coated Steel
• D-ring Placement: Back, Front, Hip
• Harness Application: Positioning, Climbing
• Hip Pad: No
• Leg Buckle Material: Steel, zinc-plated black electro-deposition paint
• Leg Connection Type: Quick Connect
• Number of Connection Points: 4
• Padding Location Type: Back
• Product Series: X100
• Product Type: Comfort Wind Energy Climbing/Positioning Safety Harness
• Recommended Application: Electrical, Cleaning
• Recommended Industry: Wind Energy
• Standards Met: OSHA 1926.502, ANSI Z359.11, OSHA 1910.140
• Subpelvic Strap: Yes
• Torso Buckle Material: Zinc Plated Steel
• Torso Buckle Type: Parachute
• Color: Gray
• Product Number: 1401229
