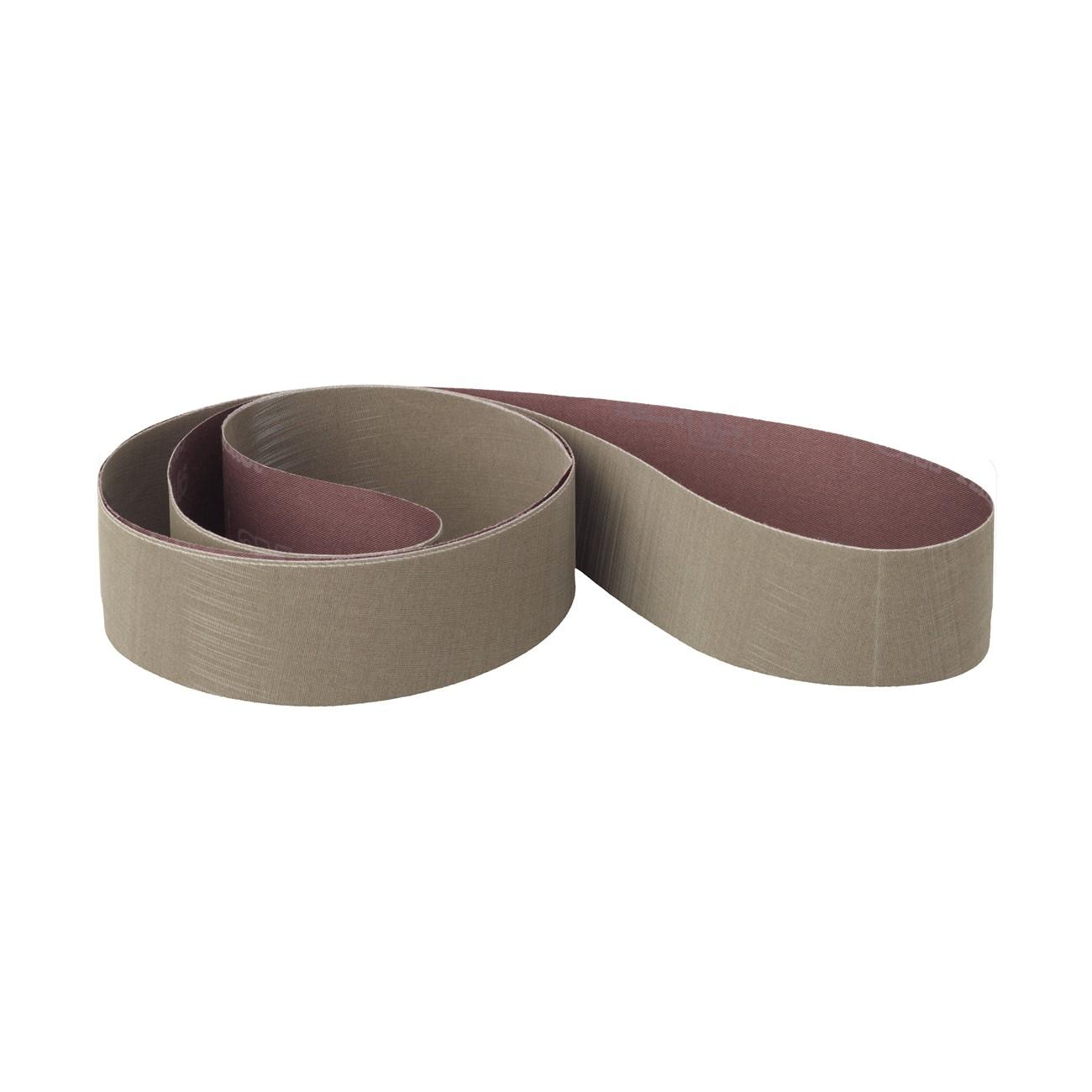

3M 7010514946 Trizact Cloth Belt 307EA A16 2.5x60 in

Product Description

The 3M 7010514946 is a Trizact abrasive cloth belt designed for intermediate finishing and fine polishing operations on metal and other hard surfaces. It uses proprietary microreplication technology in which micron-graded aluminum oxide particles are formed into three-dimensional pyramids and bonded to a flexible JE-weight rayon backing. As the abrasive pyramids wear during use, fresh sharp mineral is continuously exposed, producing a consistent cut rate and a predictable fine finish. The belt measures 2.5 inches wide by 60 inches long and carries an A16 grade designation. It is used in automated and manual grinding applications where repeatable surface finish quality is required before plating or buffing.

This belt is suited for robotic and fixture-mounted belt grinding setups as well as hand-held belt sanders in fabrication and finishing environments. The flexible rayon backing conforms to contoured and irregular surfaces, making it appropriate for cylindrical parts, tubes, and profiled workpieces. It is particularly effective as a final intermediate step prior to electroplating, buffing, or surface coating, where a consistent scratch pattern and fine finish are critical to the outcome.

Key Features

• Microreplication technology forms aluminum oxide into self-sharpening pyramids that expose fresh cutting mineral as they wear
• Runs cooler than conventional abrasives, reducing heat buildup on the workpiece
• JE-weight flexible rayon backing conforms to contoured and irregular surfaces
• Three-dimensional abrasive design delivers consistent finishes throughout belt life, ideal for robotic applications
• Produces finer finishes than conventionally electrostatically coated abrasive belts
• Suited for intermediate finishing and fine polishing prior to plating or buffing

Compatibility

Designed for use on standard belt grinding and finishing machines that accept 2.5-inch by 60-inch abrasive cloth belts.

Installation Notes

Installation should be performed by a qualified operator familiar with abrasive belt equipment. Confirm the machine is powered down and the drive wheel has come to a complete stop before changing belts. Verify belt tracking and tension according to the equipment manufacturer specifications before resuming operation. Inspect the belt for tears or edge damage prior to use.

Technical Specifications

• Grade: A16
• Backing Weight: JE-weight
• Backing Material: Rayon
• Abrasive Mineral: Aluminum Oxide (Microreplication)
• Belt Width: 2.5 inches
• Belt Length: 60 inches
• Weight: 0.1 pounds
• UPC: 00051119185201

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010514946
