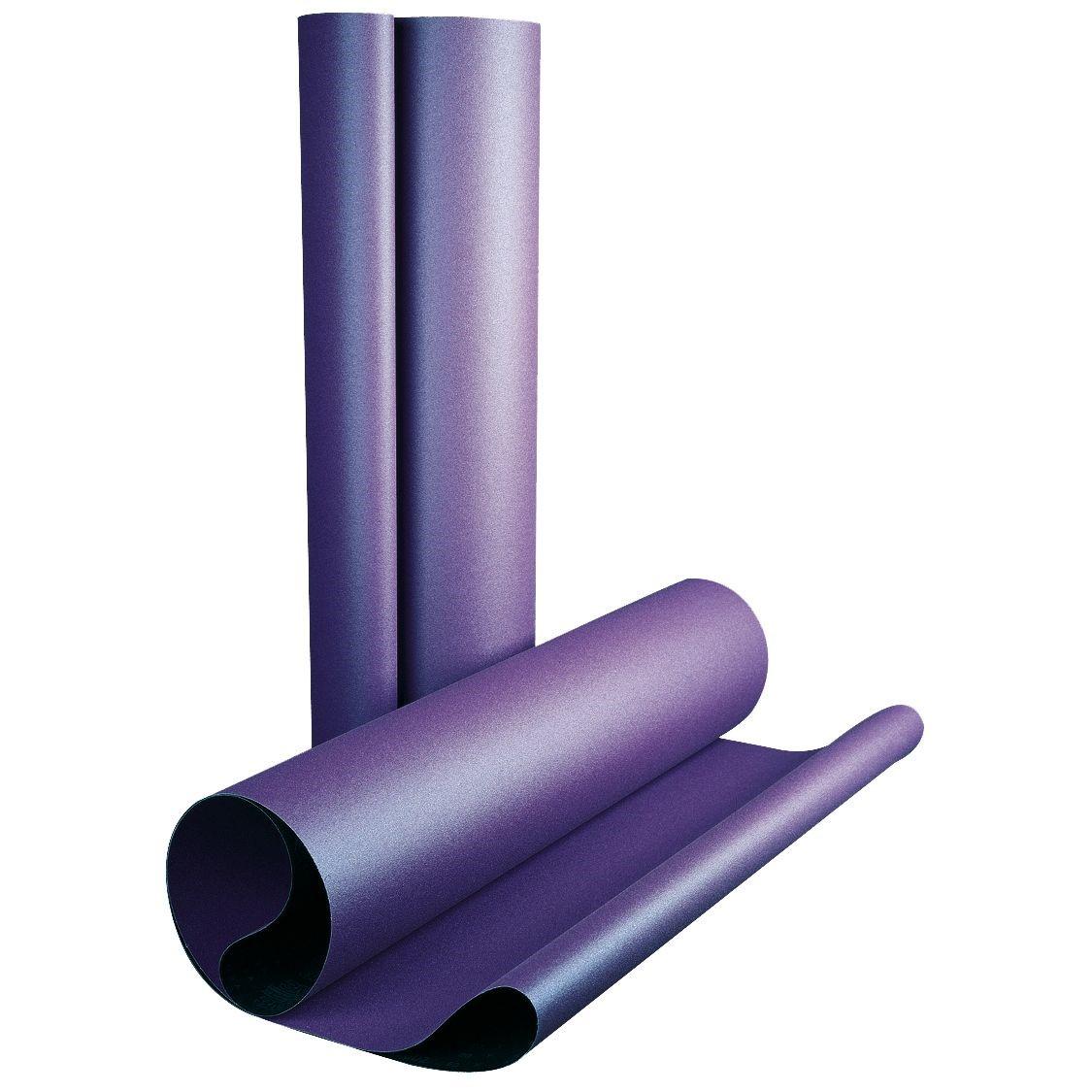

3M 7010514845 Ceramic Abrasive Belt 36 Grit 103x51 Inch

Product Description

The 3M 7010514845 is a large-format ceramic abrasive belt built on the Cubitron II 991FZ platform. It uses 3M Precision Shaped Grain technology — triangular ceramic abrasive particles engineered to fracture into fresh cutting points as they wear — delivering faster stock removal with less applied pressure than conventional abrasive belts. The belt is constructed on a durable polyester cloth backing with a closed-coat configuration and an anti-static treatment that resists loading during use. It measures 103 inches long by 51 inches wide at 36 grit, placing it in the heavy material removal category. Suitable for wet or dry operation, the resin bond is formulated to resist heat-induced deterioration, extending usable belt life.

This belt is designed for wide-belt industrial sanding applications where high throughput and consistent surface quality are the priorities. Common scenarios include solid wood panel sanding, engineered wood products, composite boards, and similar flat-surface operations in cabinet shops, millwork facilities, and furniture manufacturing environments. The 36-grit designation makes it appropriate for aggressive stock removal and dimensioning passes rather than finish sanding. A licensed or experienced machine operator familiar with wide-belt sanders would typically run this belt.

Key Features

• Precision Shaped Grain ceramic abrasive cuts fast and self-sharpens during use, reducing the pressure needed to maintain cut rate
• Polyester cloth backing resists tearing and deformation under aggressive sanding loads
• Durable resin bond withstands heat buildup, extending belt service life
• Closed-coat construction with anti-static treatment minimizes loading on wood surfaces
• Water-resistant belt construction supports both wet and dry sanding applications
• 103 inch by 51 inch format sized for large industrial wide-belt sanding machines

Compatibility

Designed for use on industrial wide-belt sanding machines that accept a 103-inch by 51-inch abrasive belt in wet or dry sanding configurations.

Installation Notes

Belt installation and tensioning should be performed by a qualified machine operator following the equipment manufacturer's guidelines. Confirm the sander is fully de-energized and locked out before mounting or removing the belt. Inspect the contact drum, platens, and tracking components for wear before running a new belt. Do not exceed the machine's rated speed for the belt width and grit being used.

Technical Specifications

• Abrasive Type: Ceramic (Precision Shaped Grain)
• Grit: 36
• Belt Length: 103 inches
• Belt Width: 51 inches
• Backing Material: Polyester Cloth
• Coat Type: Closed Coat
• Bond Type: Resin
• Application: Wet or Dry
• UPC: 051119121414
• Unit of Measure: Each
• Minimum Order Quantity: 2

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010514845
