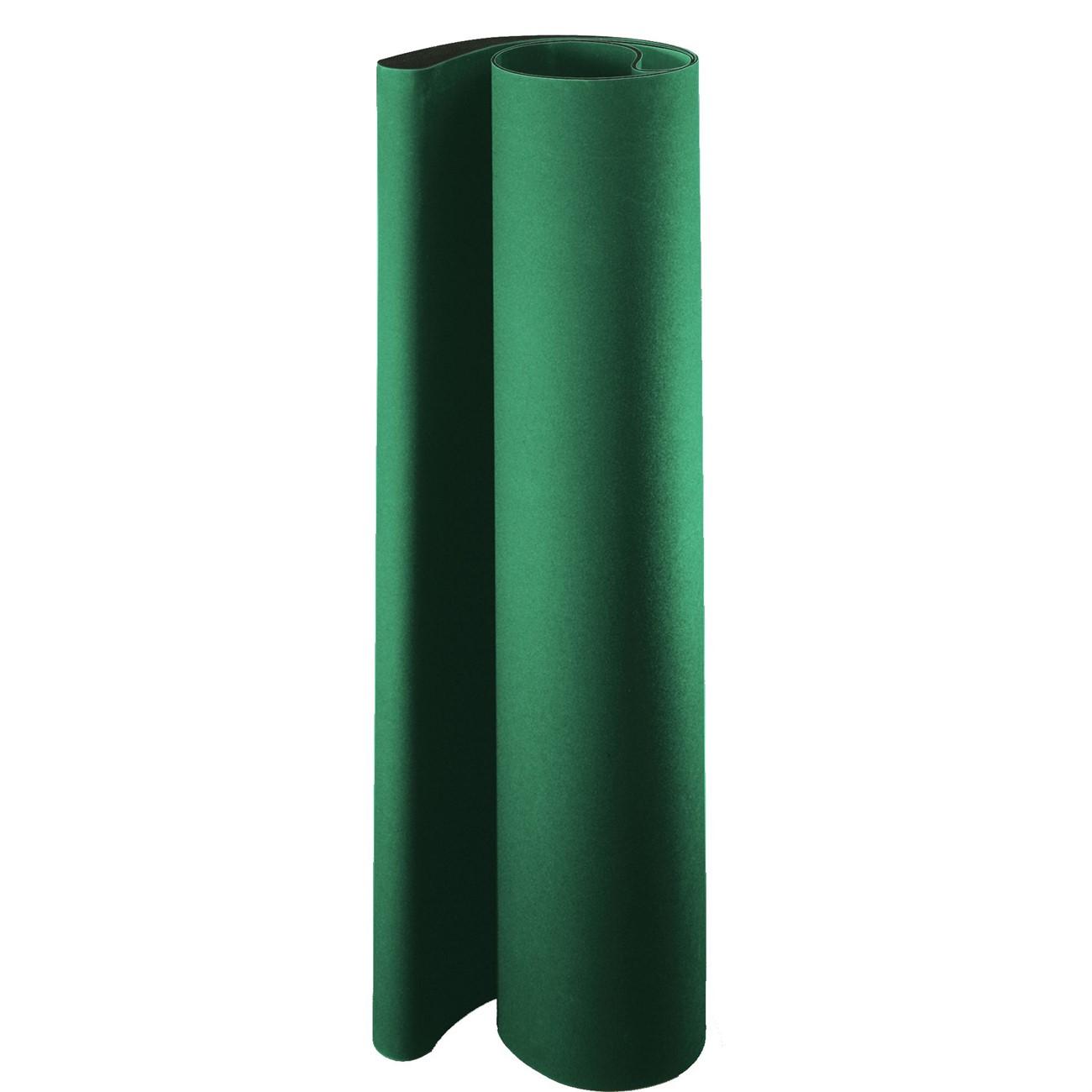

3M 7010514483 Abrasive Belt 103x52 Inch 36 Grit Alumina Zirconia

Product Description

The 3M 7010514483 is a heavy-duty abrasive belt designed for high-production grinding, blending, and finishing operations where aluminum oxide belts fall short. Built on a heavyweight, water-resistant polyester cloth backing, this belt handles high-pressure applications and edge work without breaking down. The alumina zirconia abrasive grain, combined with a grinding aid, delivers faster cut rates and cooler operating temperatures compared to conventional aluminum oxide. At 103 inches long and 52 inches wide with a 36-grit rating, it is sized for large-format belt grinders and wide-platen machines used in metal fabrication and surface preparation.

This belt is well suited for metalworking applications including grinding and blending on stainless steel, aluminum, carbon steel, and other heat-sensitive alloys. The cooler cut makes it particularly effective on metals that are prone to heat discoloration or warping under aggressive stock removal. It is typically installed and used by metal fabricators, weld finishing technicians, and industrial maintenance professionals in production and job-shop environments.

Key Features

• Alumina zirconia grain with grinding aid cuts faster and cooler than aluminum oxide
• Heavyweight water-resistant polyester cloth backing resists breakdown under high pressure and edge work
• 36-grit rating provides aggressive stock removal for grinding and weld blending
• Runs cool, reducing heat buildup on aluminum, stainless steel, and other heat-sensitive metals
• Large format at 103 inches long by 52 inches wide for wide-platen and large-frame belt grinders

Compatibility

Designed for use on large-format belt grinding machines that accept 103-inch by 52-inch abrasive belts in industrial and production metalworking applications.

Installation Notes

Installation should be performed by qualified personnel following the machine manufacturer's belt-tensioning and tracking procedures. Power down and lock out the grinder before mounting or removing the belt. Inspect the belt for tears or delamination before each use, and never exceed the maximum operating speed rated for the belt and machine combination.

Technical Specifications

• Belt Length: 103 inches
• Belt Width: 52 inches
• Grit: 36
• Abrasive Mineral: Alumina Zirconia
• Backing Material: Heavyweight Water-Resistant Polyester Cloth
• UPC: 051119232486
• Unit of Measure: Each
• Minimum Order Quantity: 2

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010514483
