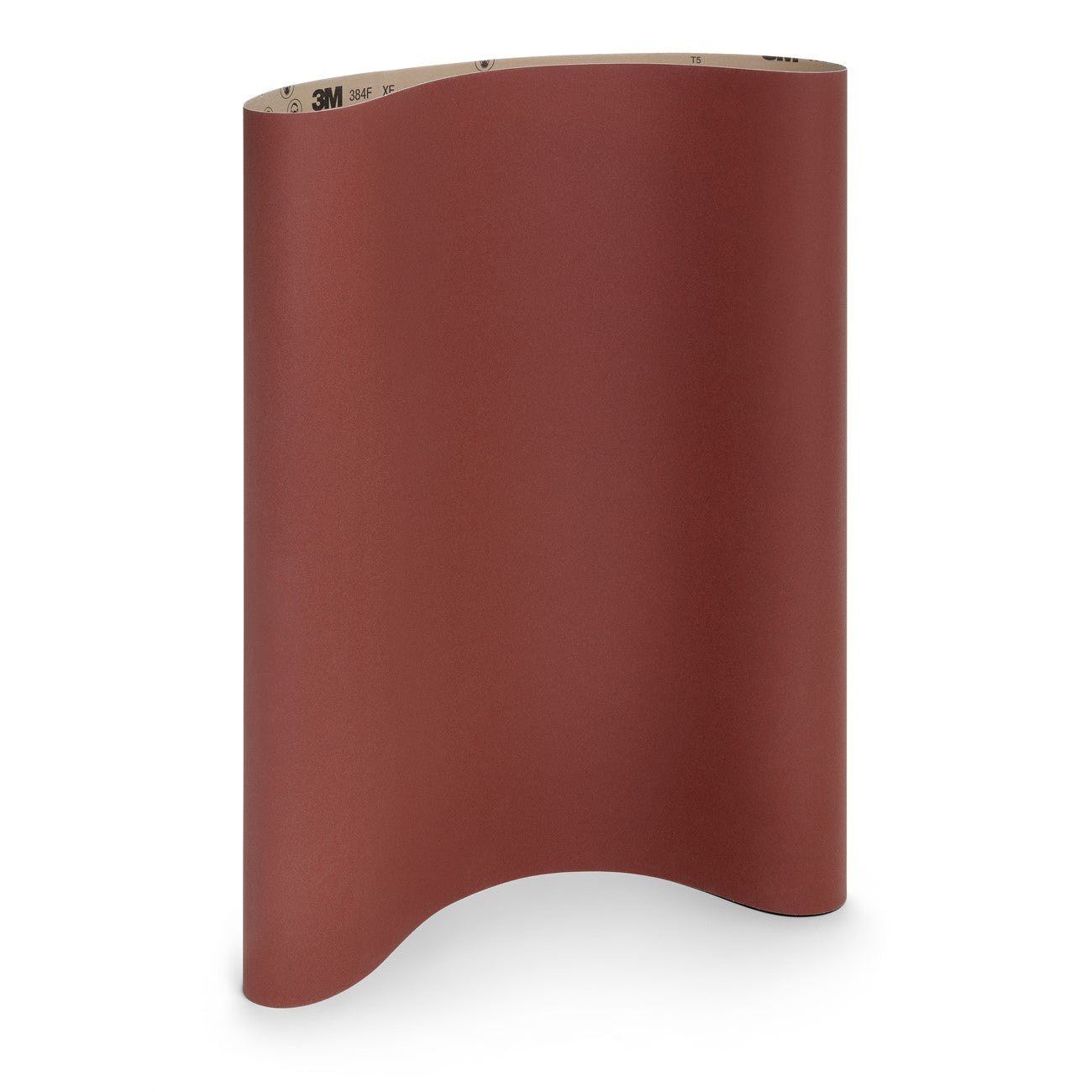

3M 7010512270 Cloth Belt 384F 36+ Xf 37x60 in Film-lok

Product Description

The 3M 7010512270 is an aluminum oxide cloth-backed abrasive belt in the 384F series, designed for general-purpose metalworking and woodworking operations. Running at 36 Plus (36+) grit with an XF-weight polyester cloth backing, this belt is built to handle the heat and pressure generated during aggressive stock removal. The Film-Lok construction and Single-Flex designation make it suitable for contoured surfaces and tight contact applications. It measures 37 inches wide by 60 inches long and weighs 7.7 pounds. Licensed tradespeople and industrial grinding technicians in metal fabrication, tool rooms, and millwork shops reach for this belt when consistent cut rate and backing durability are the priority.

This belt is engineered for use on mild steel and carbon steel as the primary substrates, and it also performs reliably on softer metals including aluminum, bronze, and brass. It is appropriate for both wet and dry applications thanks to the waterproof polyester backing. Typical use cases include metal deburring, weld blending, and surface conditioning on backstand sanders, benchtop belt sanders, stroke sanding machines, portable belt grinders, and wide belt grinding and finishing equipment. The resin bond system resists heat buildup and pressure peaks common in high-contact grinding scenarios.

Key Features

• Aluminum oxide abrasive mineral delivers consistent cut on a wide range of metal and wood substrates
• XF-weight polyester cloth backing withstands heavy grinding loads and resists tearing under pressure
• Film-Lok construction bonds abrasive grain securely to the backing for extended belt life
• Single-Flex design allows the belt to conform to moderate contours and curved workpieces
• Waterproof backing supports both wet and dry sanding or grinding operations
• Resin bond system tolerates elevated heat and contact pressure during aggressive stock removal

Compatibility

Designed for use on backstand sanders, benchtop belt sanders, stroke sanding machines, portable belt grinders, and wide belt grinding and finishing equipment that accept a 37-inch by 60-inch belt.

Installation Notes

Belt installation and tensioning should be performed by a qualified operator following the machine manufacturer's guidelines. Confirm the sander or grinder is fully de-energized and locked out before mounting or removing the belt. Inspect the belt for cuts, folds, or edge damage before installing, and never exceed the maximum operating speed rated for the belt or machine. Wear appropriate PPE including eye protection and gloves when handling and operating abrasive belts.

Technical Specifications

• Series: 384F
• Abrasive Mineral: Aluminum Oxide
• Grit Grade: 36 Plus (36+)
• Backing Weight: XF-Weight
• Backing Material: Polyester Cloth
• Bond Type: Resin
• Construction: Film-Lok, Single-Flex
• Belt Width: 37 inches
• Belt Length: 60 inches
• Application: Wet or Dry
• Weight: 7.7 pounds
• UPC: 00051119178609

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010512270
