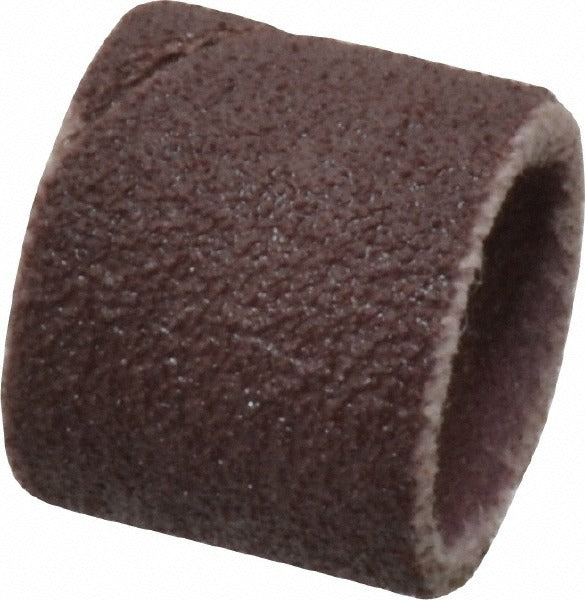

3M 7010508166 Spiral Band 100 Grit Fine 1/2 Inch

Product Description

The 3M 7010508166 is a coated abrasive spiral band designed for use with mandrel-mounted drum sanders and rotary tools. It uses aluminum oxide abrasive on an X-weight cloth backing, delivering consistent stock removal and surface finishing in tight bores, holes, and contoured surfaces. At 100 grit, this band falls in the fine grade range, making it suited to intermediate finishing passes where light material removal and surface refinement are both required. The heavy-duty cloth backing resists tearing under load, and the spiral construction allows the band to conform to the workpiece while maintaining abrasive contact throughout the cut.

This spiral band is used in metalworking, fabrication, and maintenance applications where internal or contoured surfaces need to be deburred, blended, or finished. Typical use cases include cleaning up drilled or reamed bores, smoothing weld areas inside pipe or tubing, and finishing curved profiles that flat abrasives cannot reach. It is commonly specified by machinists, pipefitters, maintenance technicians, and metal fabricators working with ferrous and non-ferrous metals. The 1/2 inch diameter and 1/2 inch width make it appropriate for smaller bore work.

Key Features

• Aluminum oxide abrasive for reliable performance on ferrous and non-ferrous metals
• 100 grit fine grade for intermediate finishing and light stock removal
• X-weight cloth backing resists tearing and flexing under rotary load
• Spiral band construction conforms to contoured and internal surfaces
• 1/2 inch diameter by 1/2 inch wide for use in smaller bore applications

Compatibility

Designed for use with mandrel-mounted rotary drum sanders compatible with 1/2 inch diameter spiral bands. Verify mandrel size and tool RPM rating before use.

Installation Notes

Installation is performed by sliding the spiral band onto a compatible mandrel and securing it per the mandrel manufacturer's instructions. Ensure the rotary tool or drill press is powered off and unplugged before mounting or removing the band. Match the tool's maximum RPM rating to the band's rated operating speed. Wear appropriate eye protection and follow all applicable shop safety practices during use.
