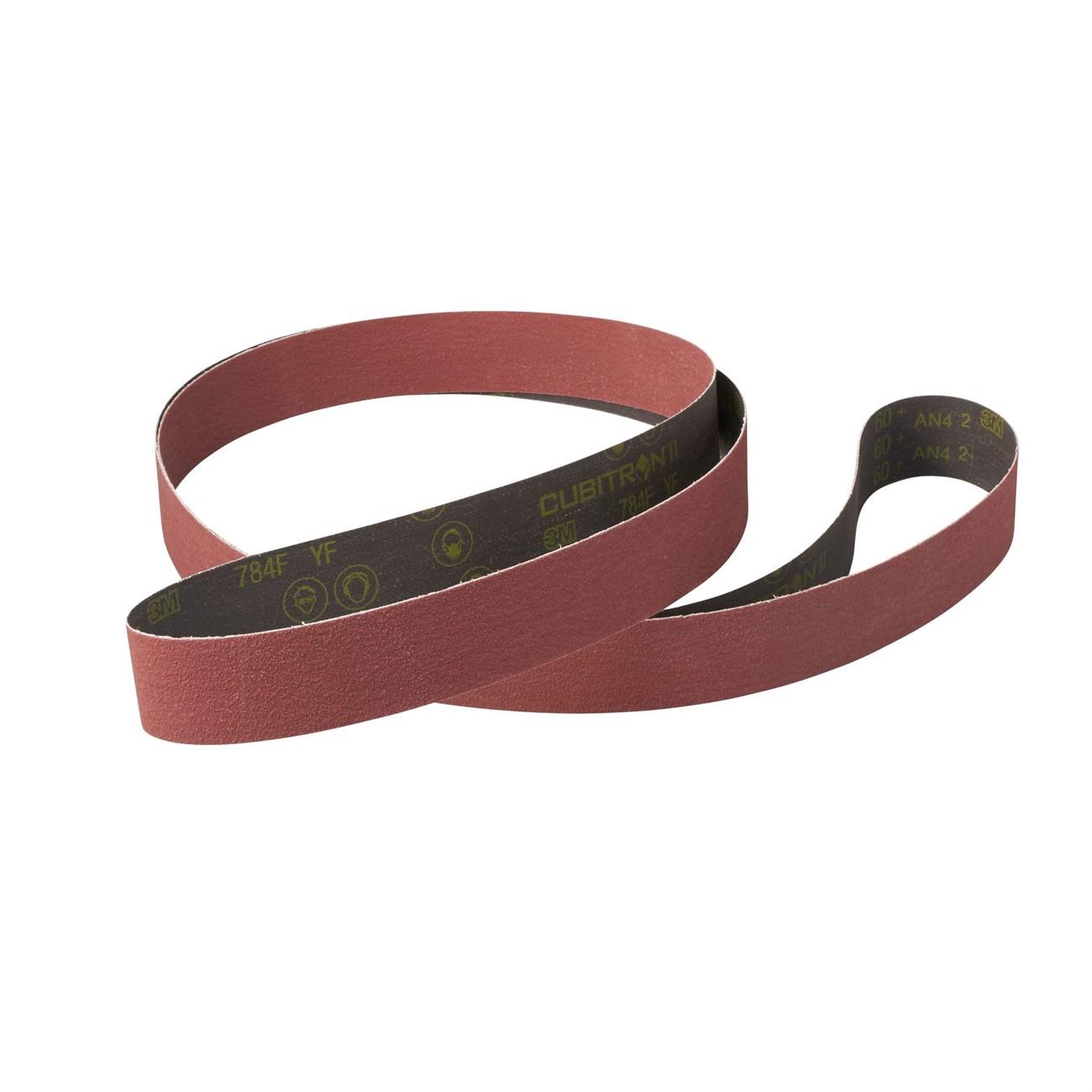

3M 7010414999 Cubitron Ii 784F Belt 18x3/4 Inch 36 Grit

Product Description

The 3M 7010414999 is a Cubitron II 784F cloth abrasive belt engineered for medium-pressure grinding and blending on metal surfaces. It measures 18 inches in length and 3/4 inch in width, running at 36 grit on a YF-weight polyester backing. The belt uses 3M Precision-Shaped Grain technology, which combines shaped ceramic mineral with premium aluminum oxide to deliver a faster, more consistent cut and significantly longer service life compared to conventional ceramic aluminum oxide belts. A durable resin bond and integrated grinding aid make it well suited for sustained production use by metal fabricators and maintenance technicians.

This belt is designed for medium-pressure grinding and blending applications on all metals, including heat-sensitive alloys. Its waterproof polyester backing supports both wet and dry operation, and the moderately flexible construction allows it to conform to straight as well as contoured workpiece surfaces. It is particularly effective in robotic and pressure-assisted grinding setups where reduced changeout frequency and consistent cut rate are priorities. Typical users include weld-finishing fabricators, aerospace maintenance shops, and job-shop metalworkers.

Key Features

• 3M Precision-Shaped Grain blend of shaped ceramic and premium aluminum oxide for faster, consistent cutting
• Longer belt life compared to conventional ceramic aluminum oxide belts, reducing changeout downtime
• YF-weight polyester backing provides moderate flexibility for conformability on straight and contoured surfaces
• Waterproof backing supports wet and dry applications on all metals
• Grinding aid cools the abrasive zone during use on heat-sensitive alloys
• Durable resin bond resists heat-related deterioration to extend belt life

Compatibility

Designed for use in medium-pressure belt grinding and blending applications on all metal types, including ferrous and non-ferrous alloys, in both robotic and pressure-assisted grinding equipment that accepts 18 inch by 3/4 inch abrasive belts.

Installation Notes

Belt installation should be performed by a qualified operator with the grinding machine powered off and locked out per applicable lockout/tagout procedures. Verify belt tracking and tension according to the equipment manufacturer guidelines before resuming operation. Inspect the belt for damage or wear before each use and replace immediately if tears, fraying, or separation are observed.

Technical Specifications

• Belt Length: 18 inches
• Belt Width: 3/4 inch
• Grit: 36
• Abrasive Type: Precision-Shaped Ceramic and Premium Aluminum Oxide Blend
• Backing Material: YF-Weight Polyester Cloth
• Bond Type: Resin
• Color: Maroon
• Application: Wet or Dry Grinding and Blending on All Metals
• Unit of Measure: Each
• Weight: 4.71 pounds
• UPC: 076308470680

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010414999
