3M 7010401052 T/R+JUG Tan/Red Performance Plus Wire Connector Jug of 750

Product Description

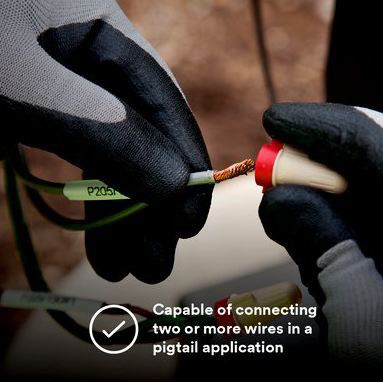

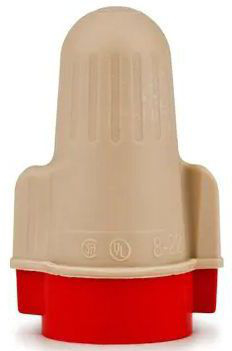

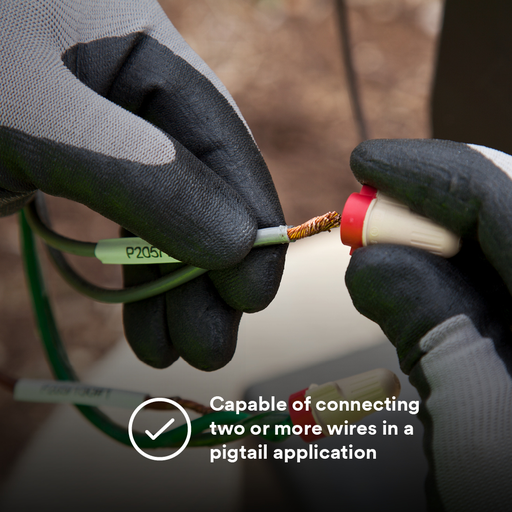

The 3M T/R+JUG Tan/Red Performance Plus Wire Connector, with MPN 7010401052, is designed for secure electrical connections. This product allows for fast and reliable wire connections in various pigtail applications.

• Compact size with a yellow miniskirt for easy handling
• Quick bite spring mechanism for efficient installation
• Rated for 600V in building wire applications and 1000V for signs, fixtures, or luminaires

Product Highlights

Ideal for residential wiring jobs and versatile applications where strong connections are needed.

Product Information

Standard Information

• Brand: 3M
• Sub Brand: Performance Plus

Technical Specifications

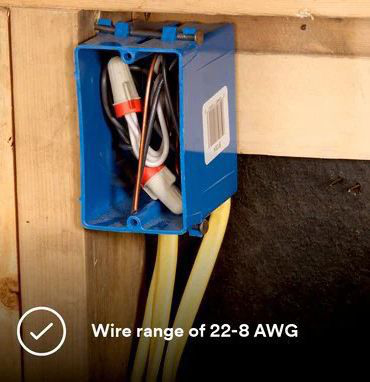

• Conductor Size: 22-8 AWG
• Connection Type: Wire
• Max Operating Temperature: 105 degrees C
• Max Voltage: 1000 V
• Material: Plastic

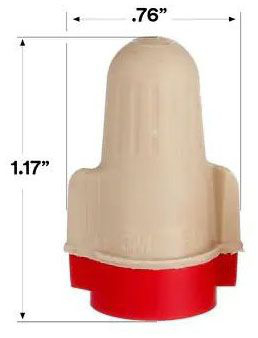

• Diameter: 0.76 Inch
• Length: 1.17 Inch
• Flame Retardant: Yes
• Country of Origin: USA
