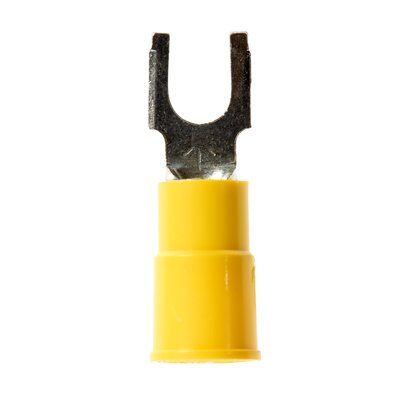

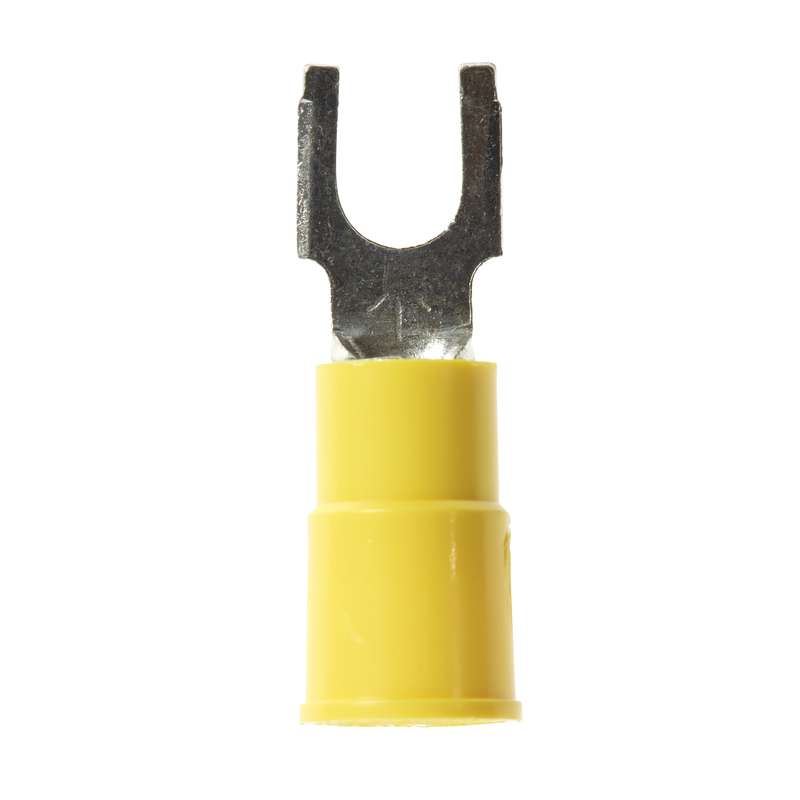

3M 7010400879 Insulated Block Fork Terminal 12 to 10 AWG

Product Description

The 3M 7010400879 is a block fork terminal designed for use with conductors ranging from twelve to ten AWG. It features a butted seam barrel and is made of electrolytic copper with a vinyl insulation. This terminal can operate at temperatures between negative forty to two hundred twenty-one degrees Fahrenheit. The secure crimp connection ensures reliability across varying applications.

• Vinyl-insulated barrel for reliable performance
• Funnel-designed sleeve aids in easy wire insertion
• Rated for six hundred VAC, with corrosion resistance

Product Highlights

This fork terminal offers an effective solution for ensuring solid electrical connections in a wide range of environments.

Product Information

Standard Information

• Brand: 3M
• Part Number: BFV10-6Q

Technical Specifications

• Conductor Size: 12 to 10 AWG
• Barrel Size: 1/4 in L
• Stud Size: #6
• Voltage Rating: 600 VAC
• Temperature Rating: -40 to 221 deg F
• Material: Electrolytic Copper/Vinyl
• Color: Yellow
• Finish: Tin Plated
