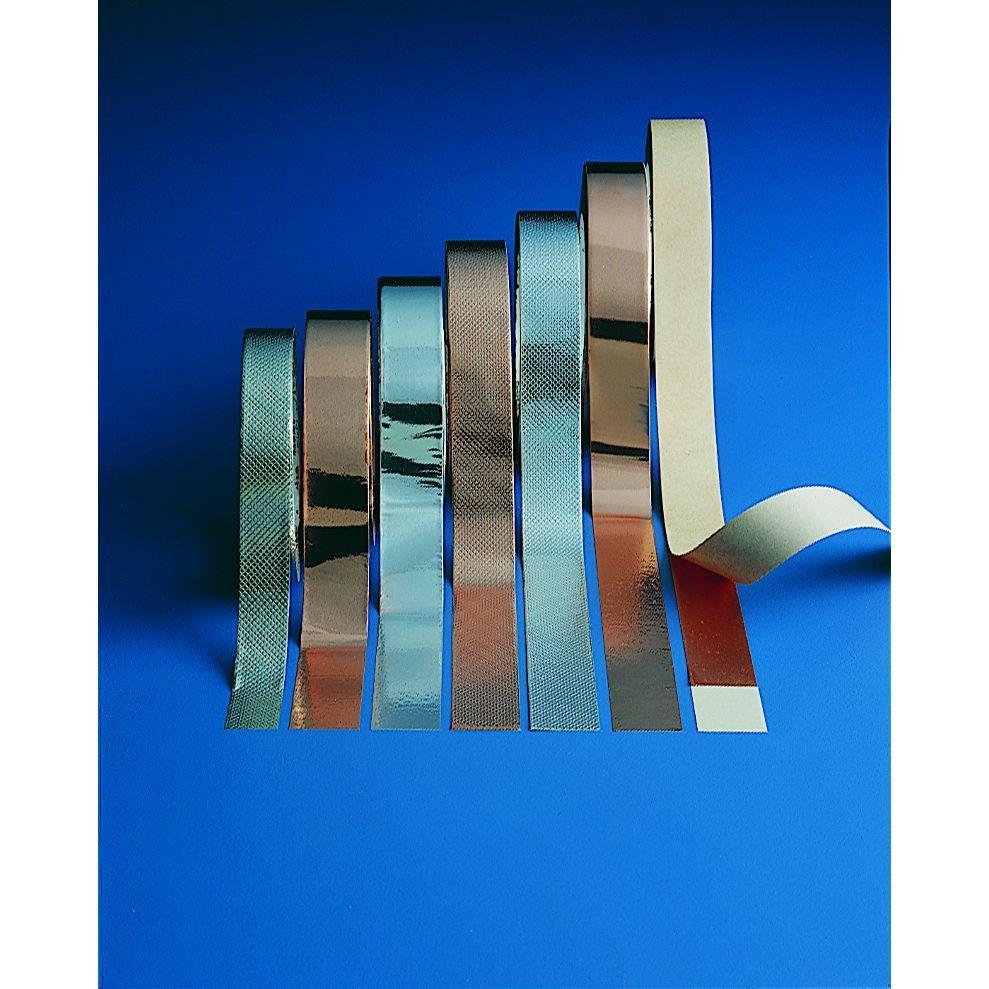

3M 7010398883 Emi Shielding Foil Tape 4 Inch 18 Yd

Product Description

The 3M 7010398883 is an aluminum foil tape with acrylic adhesive, engineered for EMI shielding, grounding, and static charge draining in electrical and electronic applications. Known as the 3M EMI Shielding Tape 1170 series, this tape delivers reliable point-to-point electrical contact through a unique adhesive system that creates secure surface contact. It is flame retardant and rated for 600-volt dry applications. The tape ships on a removable liner that simplifies die cutting and handling in production or field environments. It measures 4 inches wide and 18 yards long per roll.

This tape is suited for residential and commercial electrical installations, electronics assembly, and industrial shielding applications where consistent EMI attenuation and grounding continuity are required. Electricians, electronics technicians, and OEM assemblers use this product when applying EMI shielding to enclosures, cable bundles, and circuit board housings. Its wide operating temperature range makes it viable in environments that see significant thermal cycling, including HVAC system control panels and industrial electrical enclosures.

Key Features

• Acrylic adhesive creates secure, reliable point-to-point electrical contact
• Suitable for EMI shielding, grounding, and static charge draining
• Flame-retardant construction for safety-critical installations
• Rated for 600-volt dry applications
• Withstands temperatures from -40 to 266 degrees F (-40 to 130 degrees C)
• UL Listed and RoHS 2011/65/EU compliant
• Removable liner for easy die cutting and handling

Compatibility

Designed as an OEM-style and field-service replacement foil tape for EMI shielding, grounding, and static drain applications in electrical enclosures, control panels, and electronic assemblies requiring 600-volt dry-rated aluminum tape.

Installation Notes

Installation is typically performed by licensed electricians or electronics technicians. Power down and de-energize all circuits before applying tape to live-circuit enclosures or panels. Ensure the application surface is clean, dry, and free of oils or debris before bonding to achieve full adhesive contact. Follow applicable NEC guidelines when using tape in rated electrical enclosures.

Technical Specifications

• Width: 4 inches
• Length: 18 yards per roll
• Adhesive Type: Acrylic
• Backing Material: Aluminum foil
• Voltage Rating: 600 volts (dry)
• Temperature Range: -40 to 266 degrees F (-40 to 130 degrees C)
• Flame Rating: Flame retardant
• Certifications: UL Listed, RoHS 2011/65/EU compliant
• Unit of Measure: Roll
• Minimum Order Quantity: 3
• Weight: 4.383 pounds
• UPC: 051138501186

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010398883
