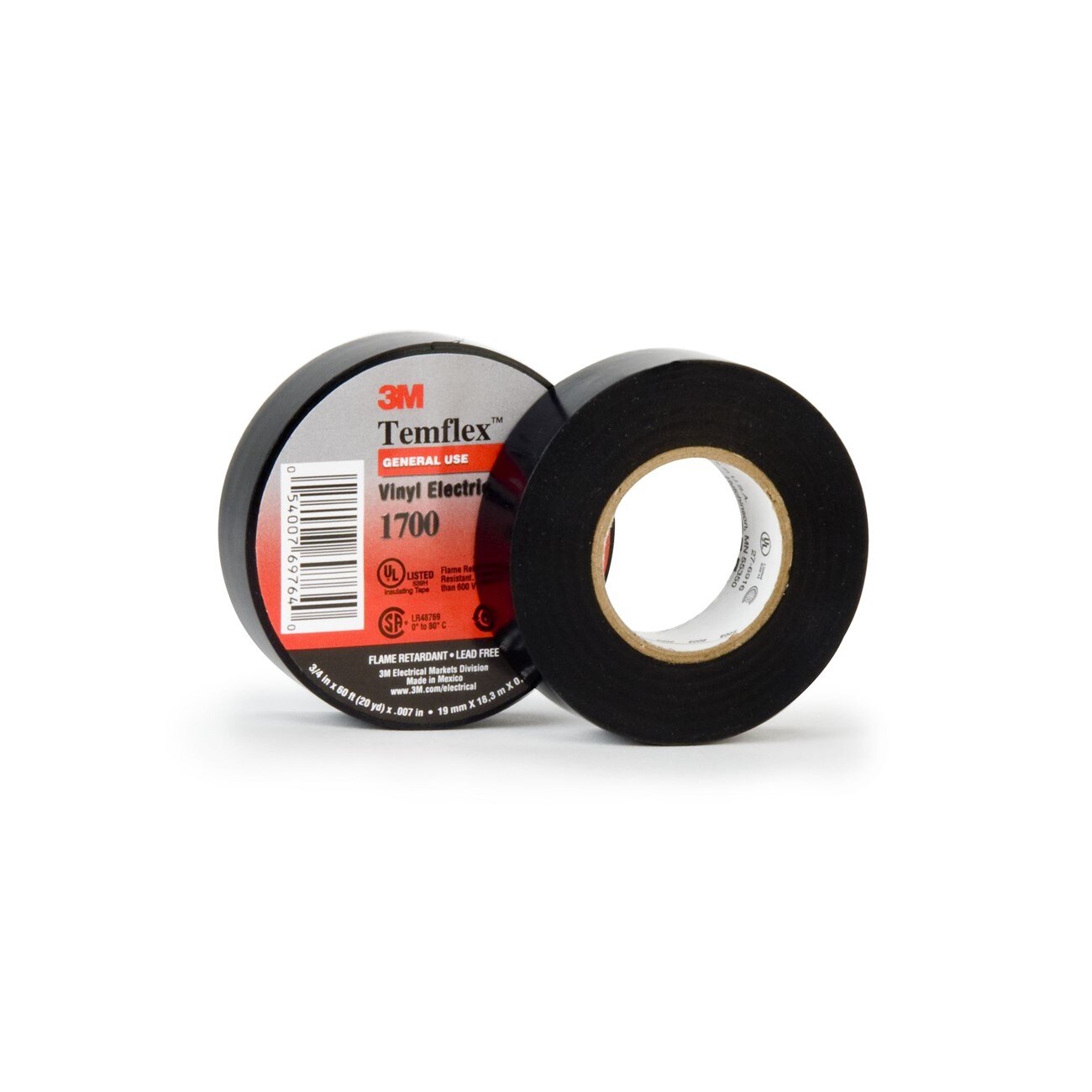

3M 7010398360 Temflex 1700 Vinyl Electrical Tape 3/4in X 36yd

Product Description

The 3M 7010398360 is the Temflex 1700 general purpose vinyl insulating tape, a flame-retardant electrical tape designed for everyday insulation, protective jacketing, and wire harnessing tasks. Built from a flexible vinyl backing with a pressure-sensitive adhesive, this tape resists abrasion, moisture, alkalies, acids, copper corrosion, and variable weather conditions. It is rated for continuous operation at 176 degrees F (80 degrees C) and carries UL Listed and CSA Certified ratings. Electricians and electrical contractors reach for this tape during standard low-voltage wiring work, color-coding, and bundling applications where a reliable, cost-effective vinyl tape is needed.

This tape is suited for residential and light commercial electrical work. Common applications include insulating splices, protective jacketing over wire bundles, and general harnessing on control wiring. The cold-resistant formulation allows use in unheated spaces and outdoor installations where temperature swings can cause lesser tapes to lose adhesion or crack. The 1.5-inch core fits standard tape dispensers used in the field. Each roll measures 0.75 inches wide by 36 yards long, making it a practical size for both service calls and panel work.

Key Features

• Flame-retardant vinyl construction rated to 176 degrees F (80 degrees C)
• UL Listed and CSA Certified for electrical insulation use
• Resistant to abrasion, moisture, alkalies, acids, and copper corrosion
• Cold-resistant formula maintains adhesion in low-temperature environments
• 1.5-inch core fits standard field dispensers
• 0.75-inch x 36-yard roll size suitable for service and panel applications

Compatibility

Designed as a general-use vinyl electrical tape for standard low-voltage insulation, splicing, jacketing, and harnessing tasks in residential and light commercial electrical installations.

Installation Notes

This tape is installed by licensed electricians in accordance with NEC requirements for insulated splices and conductors. Ensure the work area is de-energized and locked out before wrapping or insulating any conductors. Apply tape with consistent tension to prevent gaps or air pockets at splice points. Do not use as a substitute for listed wire connectors where a mechanical connection is required by code.

Technical Specifications

• Width: 0.75 inches
• Length: 36 yards
• Core Size: 1.5 inches
• Temperature Rating: 176 degrees F (80 degrees C)
• Weight: 0.33 pounds
• Flame Retardant: Yes
• Certifications: UL Listed, CSA Certified
• Unit of Measure: Roll
• UPC: 00054007497004

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010398360
