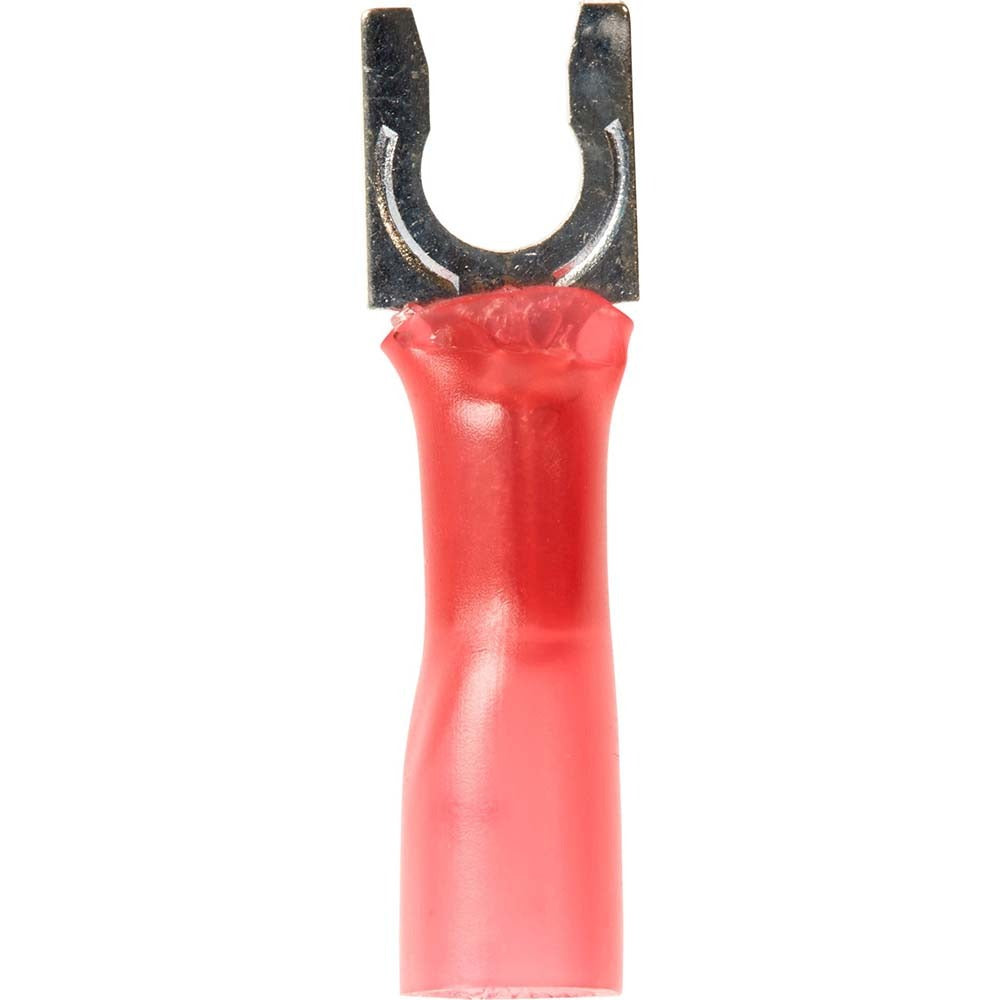

3M 7010398254 Locking Fork Terminal Red 8 Stud Crimp 25 Pack

Product Description

The 3M 7010398254 is a red, partially insulated locking fork terminal designed for secure crimp connections in electrical wiring applications. It accepts a number 8 stud and measures 1 inch overall length with a material thickness of 0.03 inches. The locking fork design prevents the terminal from backing off the stud during vibration or movement, making it well suited for panel wiring, control systems, and equipment grounding connections. Electricians and electrical contractors install this terminal using a standard ratchet crimping tool to achieve a reliable, low-resistance connection on copper wire within the red wire gauge range.

This terminal is used in residential, commercial, and light industrial electrical work wherever a semi-permanent, removable stud connection is required. The partial insulation sleeve protects the wire barrel while leaving the fork exposed for stud mounting. Packaged in quantities of 25, it is practical for service work and small panel builds alike. It carries UL Listed and CSA Certified ratings, confirming compliance with recognized North American electrical safety standards.

Key Features

• Locking fork design resists backing off under vibration
• Crimp connection style for fast, consistent termination
• Partial insulation protects wire barrel while fork remains exposed for stud mounting
• Fits number 8 stud size
• UL Listed and CSA Certified for North American electrical installations
• Packaged in 25-piece quantities to support service and installation work

Compatibility

Designed as an OEM-style replacement or standard-use crimp terminal for number 8 stud electrical connections in residential, commercial, and industrial control panel wiring applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with the NEC and applicable local codes. De-energize and lock out the circuit before terminating or removing any wiring. Use a calibrated ratchet crimping tool matched to the wire gauge and terminal series to ensure a proper crimp. Do not re-crimp or reuse a terminal that has already been crimped onto a conductor.
