3M 7010397413 Female Wire Disconnect 12-10 Awg 50 Pack

Product Description

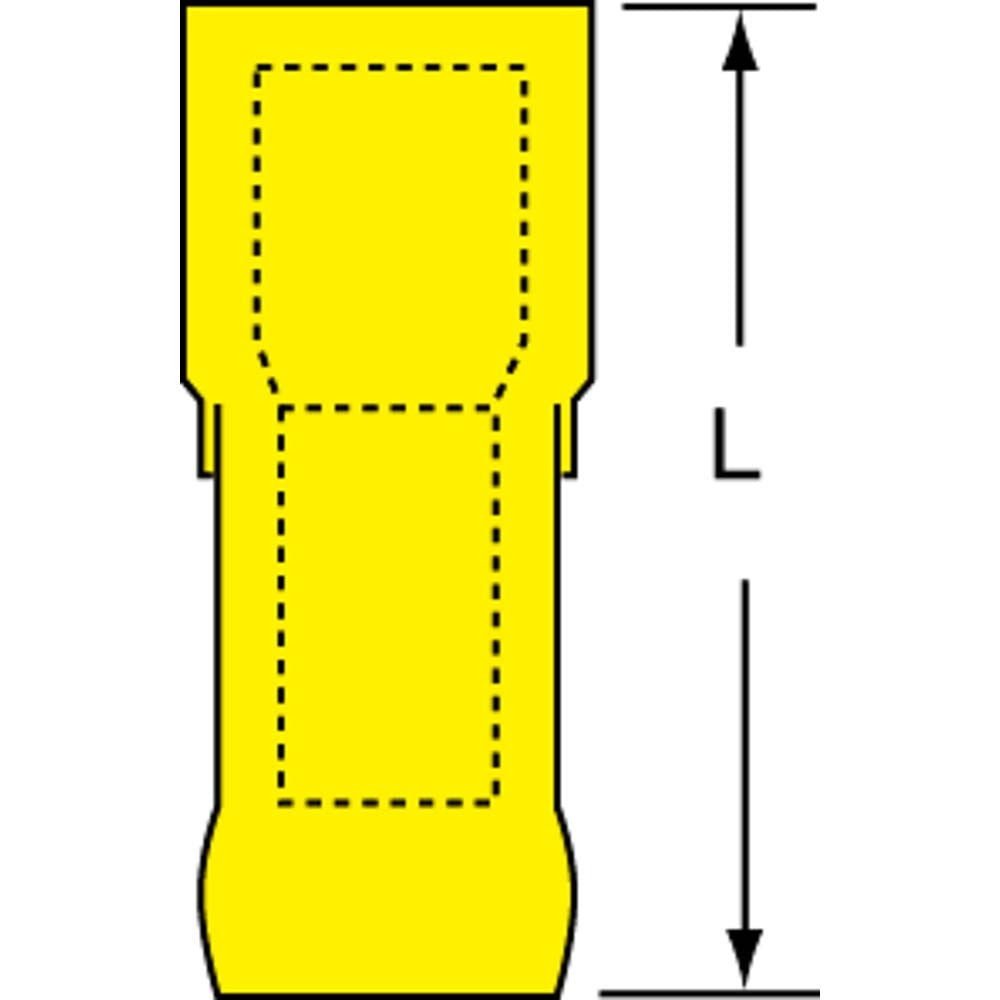

The 3M 7010397413 is a female wire disconnect terminal designed for quick-connect and disconnect wiring applications in electrical panels, HVAC controls, appliances, and automotive harnesses. The terminal accepts 12-10 AWG conductors and features a 1/4 inch tab width for standard spade-type receptacles. Vinyl insulation provides partial coverage over the crimp barrel, offering basic protection against abrasion and incidental contact. The yellow color coding indicates compatibility with 12-10 AWG wire range, consistent with industry-standard color conventions for insulated terminals. Each package contains 50 terminals. This terminal is installed by licensed electricians, HVAC technicians, and appliance service professionals.

This female disconnect terminal is suited for residential and light commercial wiring tasks where tool-free field disconnect capability is required. Common applications include connecting leads to contactors, relays, fan motors, and control boards in HVAC systems, as well as general electrical panel wiring and appliance repair. The 1/4 inch tab width fits the most widely used standard blade terminals found on switches, solenoids, and terminal blocks. The 50-piece package quantity supports service van stocking and small to mid-size job needs.

Key Features

• Female quick-disconnect design for tool-free field termination and removal
• Accepts 12-10 AWG wire range, yellow-coded for easy identification
• 1/4 inch tab width fits standard spade terminal receptacles
• Vinyl partial insulation protects the crimp barrel from abrasion and incidental contact
• RoHS 2011/65/EU compliant construction
• Sold in a 50-piece pack suited for service inventory stocking

Compatibility

Designed as an OEM-style replacement and general-use female disconnect terminal for standard 1/4 inch tab spade receptacles used in residential and light commercial electrical and HVAC wiring applications with 12-10 AWG conductors.

Installation Notes

Installation requires a calibrated ratchet or hand crimp tool rated for insulated terminals in the 12-10 AWG range. Disconnect or de-energize the circuit before terminating or removing any wire disconnect terminal, following applicable NEC guidelines. Inspect the crimp for full barrel engagement before reconnecting the circuit. Do not solder over a crimped insulated terminal, as heat can compromise the vinyl insulation.
