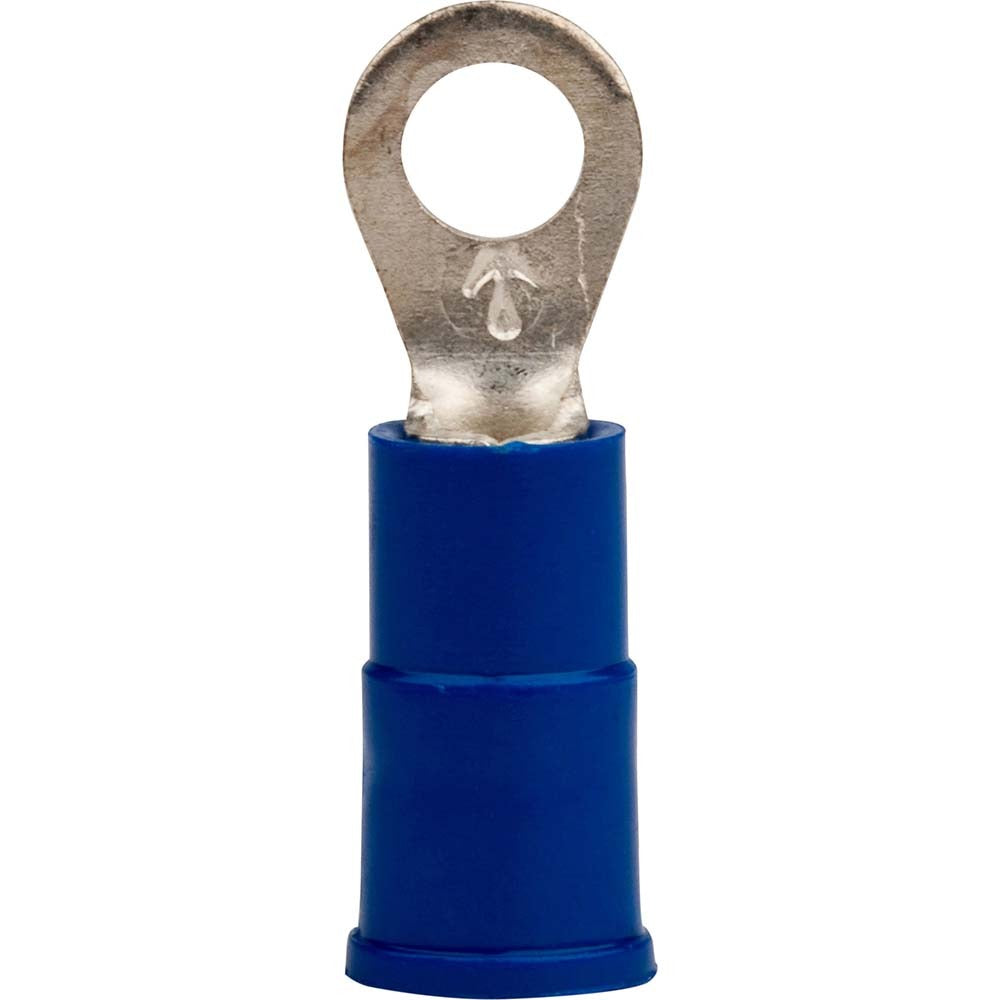

3M 7010397275 Ring Terminal 16-14 Awg Crimp Insulated 100 Pack

Product Description

The 3M 7010397275 is a partially insulated circular ring terminal designed for crimp connections on 16 to 14 AWG copper wire. The terminal features a vinyl insulation sleeve in blue and a copper contact that accepts a No. 10 stud. Overall length is 0.9 inches, ring width is 0.33 inches, and material thickness is 0.03 inches. This terminal is sold in a pack of 100 and is suited for electricians, panel builders, and maintenance technicians working on control wiring, equipment grounding, and low-voltage circuit terminations where a secure, vibration-resistant ring connection is required.

This ring terminal is appropriate for residential, commercial, and light industrial electrical work. It is commonly used in control panels, junction boxes, HVAC equipment wiring, and general electrical panel terminations where 16 to 14 AWG stranded or solid wire is being landed to a screw or stud. The blue color coding aligns with the standard industry convention for 16 to 14 AWG wire range, making it easy to identify the correct terminal size during installation. The crimp connection style is compatible with standard insulated-wire crimp tools.

Key Features

• Partially insulated vinyl sleeve in blue for visual wire-gauge identification
• Crimp connection type for fast, reliable wire termination
• Compatible wire range: 16 to 14 AWG
• Copper contact for good electrical conductivity
• No. 10 stud size for common panel and equipment hardware
• CSA Certified and UL Listed; RoHS 2011 EU Compliant

Compatibility

Designed for use with 16 to 14 AWG wire on No. 10 studs or screws in standard electrical termination applications.

Installation Notes

Installation should be performed by a qualified electrician in accordance with applicable NEC requirements. De-energize the circuit and verify zero voltage before terminating any wire. Use a ratcheting crimp tool rated for insulated ring terminals in the 16 to 14 AWG range to ensure a full, consistent crimp. Inspect each termination for pull-out resistance before reassembling the enclosure.
