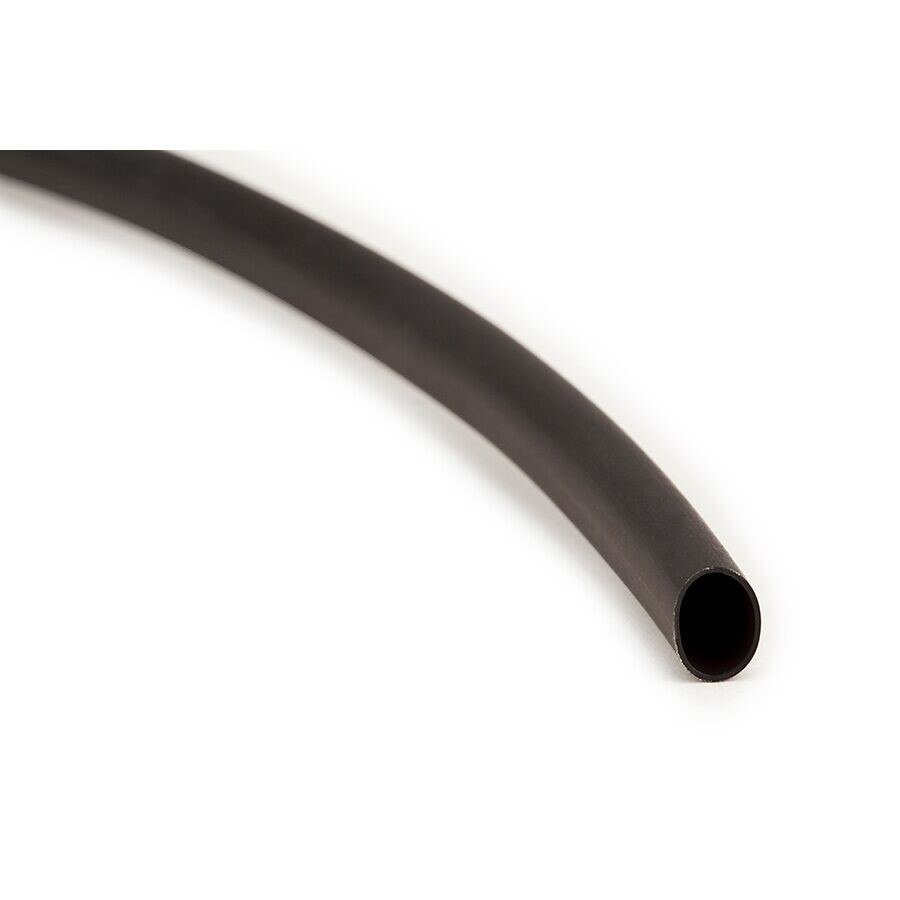

3M 7010396603 FP-301VW Heat Shrink Tubing Black 50 Ft

Product Description

The 3M 7010396603 is a flame-resistant heat shrink tubing sold in a 50-foot spool under the FP-301VW product line. It carries the same balanced electrical, physical, and chemical properties as standard FP-301 tubing while adding specially engineered flame resistance for applications where fire protection is a priority. Rated for continuous operation from -55 degrees F to 275 degrees F and capable of withstanding brief elevated exposures up to 572 degrees F, this tubing is built for demanding environments. The minimum shrink activation temperature is 212 degrees F. Electricians and panel technicians use this tubing for wire bundling, insulation, strain relief, and environmental sealing in both commercial and industrial installations.

FP-301VW heat shrink tubing is suited for electrical wiring applications that require reliable insulation and flame resistance. It is commonly installed in control panels, wire harnesses, terminal connections, and conduit entry points in commercial and industrial settings. The spool format provides 50 feet of continuous tubing, making it practical for bench work or field installation where multiple terminations are made in sequence. Licensed electricians and electrical contractors are the primary installers, though industrial maintenance technicians also use this product regularly.

Key Features

• Specially engineered for superior flame resistance compared to standard FP-301 tubing
• Continuous operating range from -55 degrees F to 275 degrees F
• Withstands brief temperature excursions up to 572 degrees F
• Minimum shrink temperature of 212 degrees F for consistent, controlled activation
• Supplied on a 50-foot spool for efficient use across multiple terminations
• Black color for standard wiring identification and UV-exposed applications

Compatibility

Designed as a direct-use flame-resistant heat shrink tubing for electrical insulation, wire bundling, and terminal protection in commercial and industrial wiring applications.

Installation Notes

Installation is performed by licensed electricians or qualified electrical technicians. De-energize and lock out all circuits before applying heat shrink tubing to any live or energized conductor. A calibrated heat gun set to the appropriate temperature is the recommended tool for shrinking; open flame sources should be avoided to prevent uneven shrink or tubing damage. Work performed in commercial or industrial panels should comply with applicable NEC requirements for insulation materials and flame ratings.

Technical Specifications

• Product Line: FP-301VW
• Color: Black
• Length: 50 feet
• Unit of Measure: Foot
• Minimum Shrink Temperature: 212 degrees F (100 degrees C)
• Continuous Operating Range: -55 degrees F to 275 degrees F (-55 degrees C to 135 degrees C)
• Maximum Short-Term Temperature: 572 degrees F (300 degrees C)
• Weight: 0.25 pounds
• UPC: 00054007569985

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010396603
