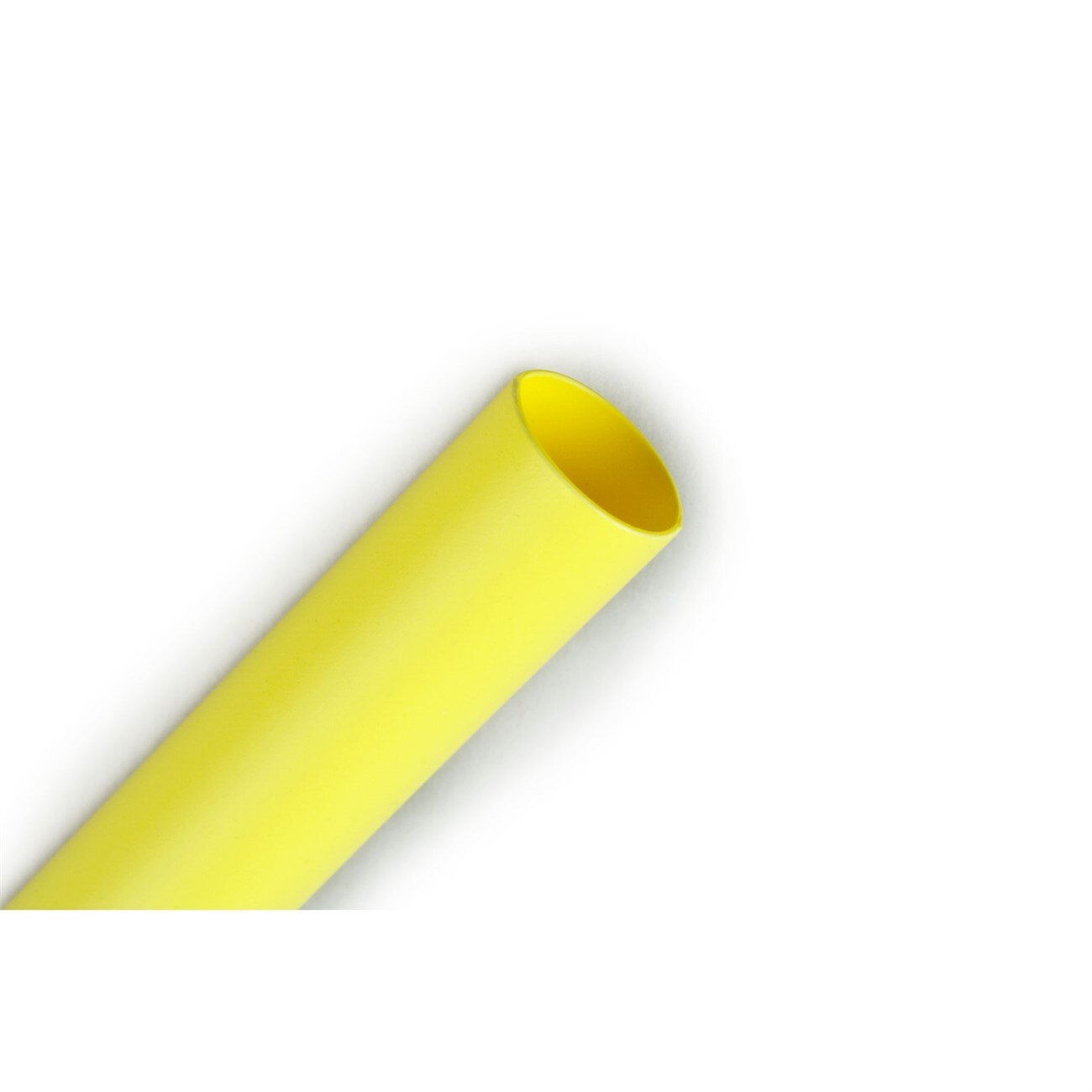

3M 7010396246 FP-301 Heat Shrink Tubing 3/64 in Yellow

Product Description

The 3M 7010396246 is a thin-wall polyolefin heat shrink tubing sold under the FP-301 series, offered here in a 1000-foot bulk spool in yellow. FP-301 tubing delivers a reliable balance of electrical insulation, physical protection, and chemical resistance, making it a go-to solution for wire bundling, harness wrapping, connector insulation, and general wire management in industrial and military-grade wiring applications. The 3/64-inch nominal size targets fine-gauge conductors and small-diameter components. Licensed electricians, wire harness assemblers, and MRO technicians are the primary installers of this product.

FP-301 thin-wall heat shrink tubing is suited for both industrial and military wiring environments where consistent shrink performance and reliable electrical isolation are required. The yellow color coding supports visual identification of circuits or wire groupings within a harness or panel. The bulk 1000-foot spool format is intended for production environments, service shops, or contractors who need continuous lengths rather than pre-cut pieces. This size and color combination is commonly used in low-voltage signal wiring, avionics adjacent applications, and control panel wire dressing.

Key Features

• Thin-wall FP-301 polyolefin construction provides electrical insulation and physical abrasion protection
• 3/64-inch nominal diameter suited for fine-gauge conductors and small connector bodies
• Yellow color enables circuit identification and color-coded wire management
• 1000-foot bulk spool reduces material handling and supports high-volume production use
• Balanced electrical, physical, and chemical resistance properties for industrial and military applications

Compatibility

Designed as a general-purpose thin-wall heat shrink sleeve for fine-gauge conductors in industrial wiring, military wiring assemblies, and control panel applications where a 3/64-inch nominal tubing diameter is specified.

Installation Notes

Heat shrink tubing is typically installed by electricians, wire harness technicians, or instrumentation specialists using a calibrated heat gun set to the appropriate shrink temperature for FP-301 polyolefin material. De-energize and lock out all circuits before applying tubing to any live wiring assembly. Slide tubing over the conductor or splice before terminating the end, as tubing cannot be applied over completed connectors in most configurations. Follow applicable NEC guidelines and any project-specific wiring specifications for insulation material selection.

Technical Specifications

• Series: FP-301
• Wall Type: Thin-Wall
• Nominal Diameter: 3/64 inch
• Color: Yellow
• Spool Length: 1000 feet
• Unit of Measure: Foot
• Weight: 0.01 pounds
• UPC: 00054007087274

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010396246
