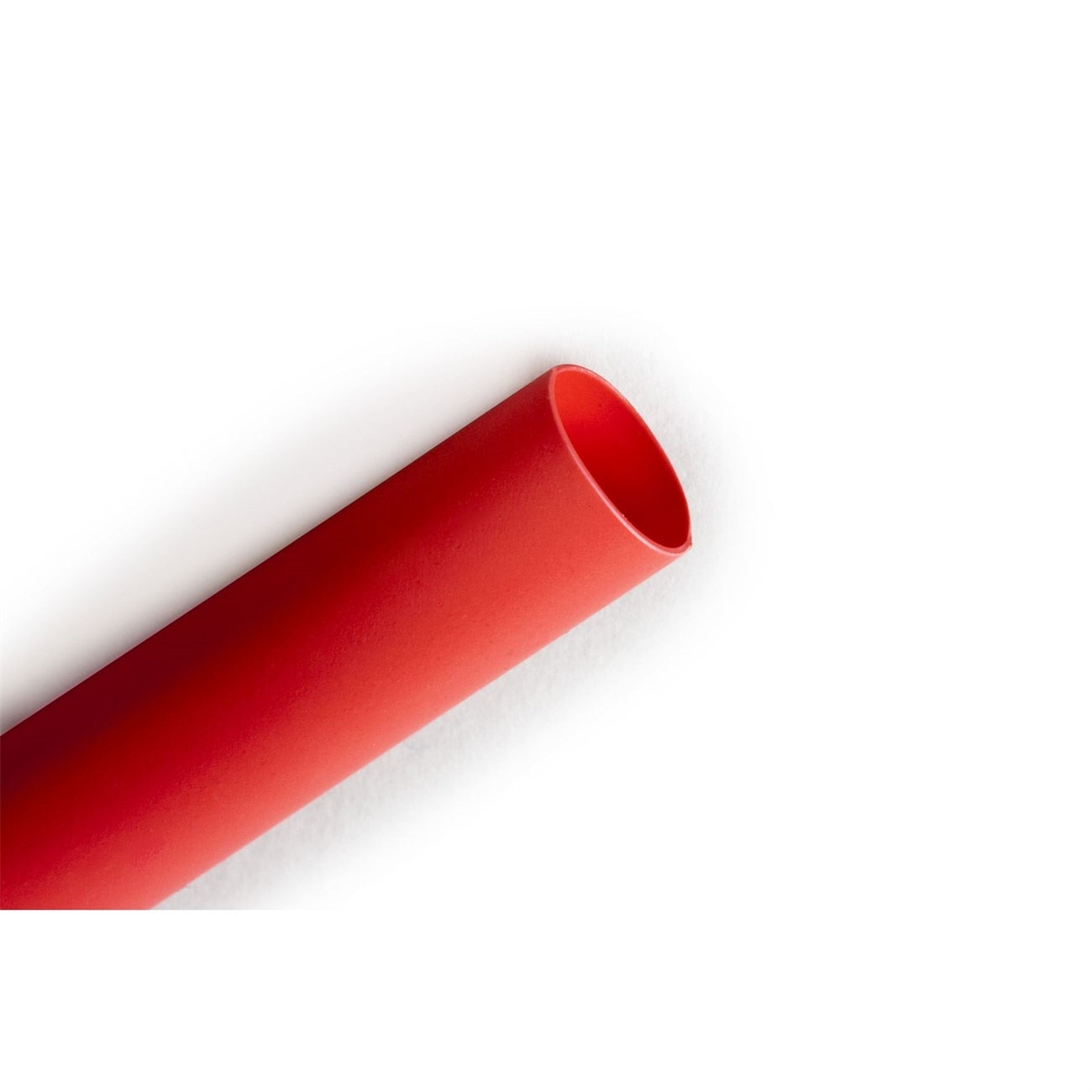

3M 7010396209 FP-301 Heat Shrink Tubing 3/32 in Red 500 Ft

Product Description

The 3M 7010396209 is a thin-wall heat shrink tubing supplied on a 500-foot bulk spool, sold by the foot with a minimum order quantity of 1,500 feet. Part of the FP-301 product line, this tubing is engineered to deliver a reliable balance of electrical insulation, physical protection, and chemical resistance. The red color coding supports quick visual identification during installation and inspection. It is sized at 3/32 inch recovered diameter, making it suited for small-gauge wire terminations, splices, and connector backshells across industrial and military-grade wiring applications. Licensed electricians and MRO technicians are the primary installers.

FP-301 thin-wall heat shrink tubing is used in a wide range of industrial and military wiring applications where consistent insulation performance and environmental protection are required. The 3/32 inch diameter targets small conductors and component leads. The red color designation supports color-coded wire management schemes common in multi-conductor harness assembly, panel wiring, and field repair work. The bulk spool format is suited to production environments and service shops that work through high volumes of terminated connections.

Key Features

• Thin-wall FP-301 construction balances electrical insulation with a low recovered wall thickness for tight clearance applications
• 3/32 inch recovered diameter targets small-gauge conductors and component leads
• Red color coding supports visual identification and color-coded harness organization
• 500-foot bulk spool format reduces handling time in production and high-volume service settings
• Rated for industrial and military wiring applications requiring consistent physical and chemical resistance

Compatibility

Designed as a general-purpose thin-wall heat shrink sleeve for industrial and military electrical wiring applications involving small-gauge conductors requiring insulation, strain relief, or environmental protection at terminations and splices.

Installation Notes

Installation is typically performed by licensed electricians or trained harness assembly technicians. Confirm the conductor or termination diameter is within the tubing's expanded inner diameter before cutting to length. Apply heat evenly using a heat gun, working from the center outward to avoid trapping air. Ensure the circuit or assembly is de-energized and fully cooled before applying heat shrink tubing near existing insulation or components.

Technical Specifications

• Part Series: FP-301
• Wall Type: Thin-Wall
• Color: Red
• Recovered Diameter: 3/32 inch
• Spool Length: 500 feet
• Unit of Measure: Foot
• Minimum Order Quantity: 1,500 feet
• Weight: 0.01 pounds per foot
• UPC: 00054007084693

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010396209
