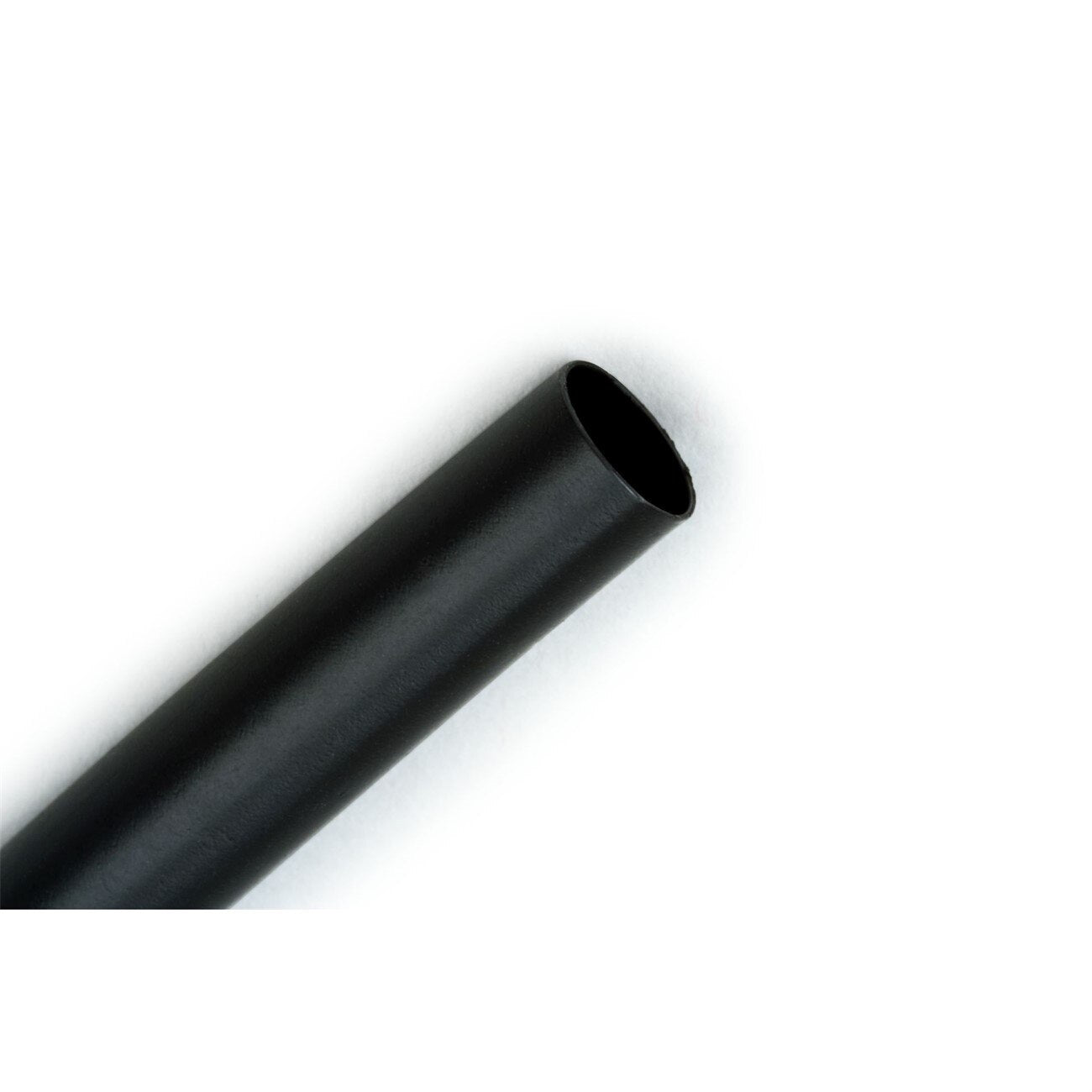

3M 7010396208 FP-301VW Heat Shrink Tubing 3/32 in Black 500 Ft

Product Description

The 3M 7010396208 is a flame-resistant heat shrink tubing sold on a 500-foot spool, designed for electrical insulation, bundling, and environmental sealing in demanding applications. Rated for continuous operation from -55 degrees C (-67 degrees F) to 135 degrees C (275 degrees F), it also withstands brief exposure to elevated temperatures up to 300 degrees C (572 degrees F). The minimum shrink temperature is 100 degrees C (212 degrees F). Built on the same proven electrical, physical, and chemical performance platform as standard FP-301 tubing, the FP-301VW adds superior flame resistance for installations where fire safety is a critical concern. Licensed electricians and industrial maintenance technicians are the primary installers.

This tubing is suited for residential, commercial, and industrial electrical work where flame resistance is required in addition to standard insulation and strain relief. Common applications include wire harness protection, terminal insulation, connector sealing, and cable bundling in control panels, switchgear, and exposed wiring runs. The 3/32-inch size accommodates small-gauge conductors and tight connector geometries. The 500-foot spool length supports high-volume production or service work. The black color is appropriate for general wiring applications where color coding is not required.

Key Features

• Flame-resistant formulation exceeds the performance of standard FP-301 tubing for fire-sensitive installations
• Wide continuous operating range: -55 degrees C to 135 degrees C (-67 degrees F to 275 degrees F)
• Withstands brief peak temperatures up to 300 degrees C (572 degrees F)
• Minimum shrink temperature of 100 degrees C (212 degrees F) allows controlled, predictable installation
• 3/32-inch diameter fits small-gauge wire and connector terminations
• 500-foot spool format reduces handling time on high-volume jobs

Compatibility

Designed as an OEM-style replacement and general-use heat shrink tubing for electrical insulation applications requiring flame resistance on small-diameter conductors.

Installation Notes

Heat shrink tubing of this type is installed by licensed electricians or qualified maintenance technicians in accordance with NEC requirements for the application. De-energize all circuits before applying tubing to any conductor or termination. Use a calibrated heat gun to apply uniform heat at or above the 100 degrees C minimum shrink temperature, keeping the heat source moving to avoid scorching the tubing or damaging adjacent components. Do not use an open flame as the heat source.

Technical Specifications

• Tubing Series: FP-301VW
• Inside Diameter: 3/32 inches
• Color: Black
• Spool Length: 500 feet
• Continuous Operating Temperature: -55 degrees C to 135 degrees C (-67 degrees F to 275 degrees F)
• Peak Temperature (Brief Exposure): 300 degrees C (572 degrees F)
• Minimum Shrink Temperature: 100 degrees C (212 degrees F)
• Unit of Measure: Foot
• UPC: 00054007084679

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010396208
