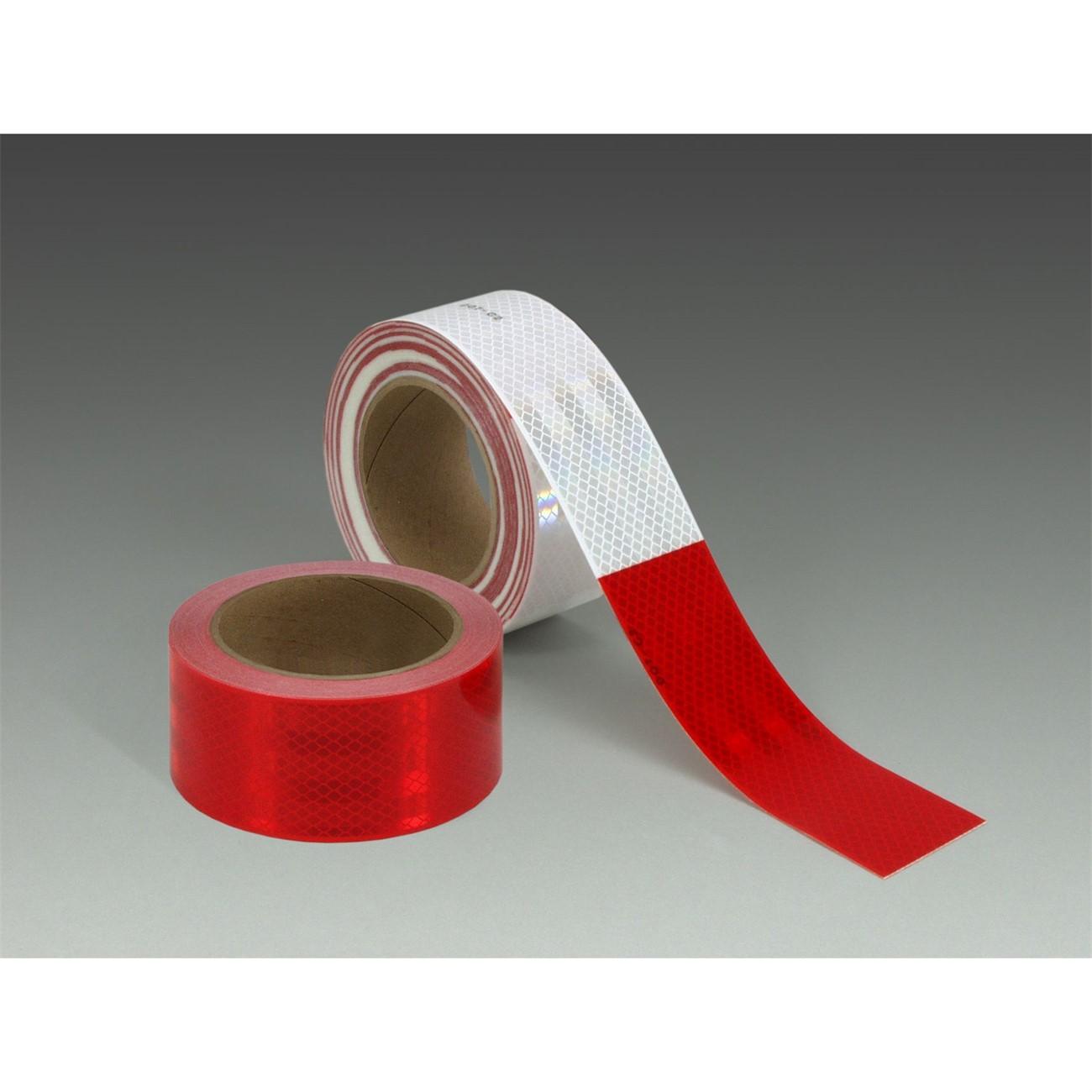

3M 7010388908 Diamond Grade Conspicuity Marking Kit 53ft

Product Description

The 3M 7010388908 is the Diamond Grade Conspicuity Marking Kit 983-K2, a complete reflective marking solution designed to meet federal conspicuity requirements for large commercial trailers up to 53 feet in length. The kit provides high-visibility red and white retroreflective sheeting that helps other drivers detect the trailer outline in low-light and nighttime conditions. Each kit includes enough material to mark one full trailer and ships with a squeegee and installation instructions. This product is installed by fleet maintenance technicians, commercial vehicle inspectors, and DOT compliance personnel.

This kit is intended for use on semi-trailers and dry van trailers up to 53 feet long. It is commonly applied during new trailer build-out, DOT compliance retrofits, or conspicuity strip replacement on aging fleet equipment. The included strip sizes and quantities cover the rear and side perimeter marking layout required under FMCSA conspicuity standards for commercial motor vehicles.

Key Features

• Complete one-trailer kit with all required strip sizes and quantities
• Includes 36 strips of 983-32 red and white marking at 2 inches x 18 inches each
• Includes 4 strips of 983-10 white marking at 2 inches x 12 inches each
• Includes 1 strip of 983-32 red and white marking at 2 inches x 90 inches
• Includes 1 strip of 983-32 red and white marking at 1.5 inches x 90 inches
• Squeegee and installation instructions included in each kit

Compatibility

Designed for application on semi-trailers and commercial dry van trailers up to 53 feet in length requiring retroreflective conspicuity marking per FMCSA regulations.

Installation Notes

Installation is performed by fleet maintenance technicians or DOT compliance personnel. Clean and degrease all mounting surfaces thoroughly before applying sheeting to ensure proper adhesion. Follow the included instructions and refer to FMCSA 49 CFR Part 393 for required placement locations. Do not apply strips over rivets, fasteners, or uneven surfaces that would prevent full contact adhesion.

Technical Specifications

• Weight: 1.7 pounds
• Unit of Measure: Kit
• Minimum Order Quantity: 1
• UPC: 00051138299705
• Trailer Coverage: Up to 53 feet
• Strip Count (983-32 Red and White 2 in x 18 in): 36 strips
• Strip Count (983-10 White 2 in x 12 in): 4 strips
• Strip Count (983-32 Red and White 2 in x 90 in): 1 strip
• Strip Count (983-32 Red and White 1.5 in x 90 in): 1 strip

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010388908
