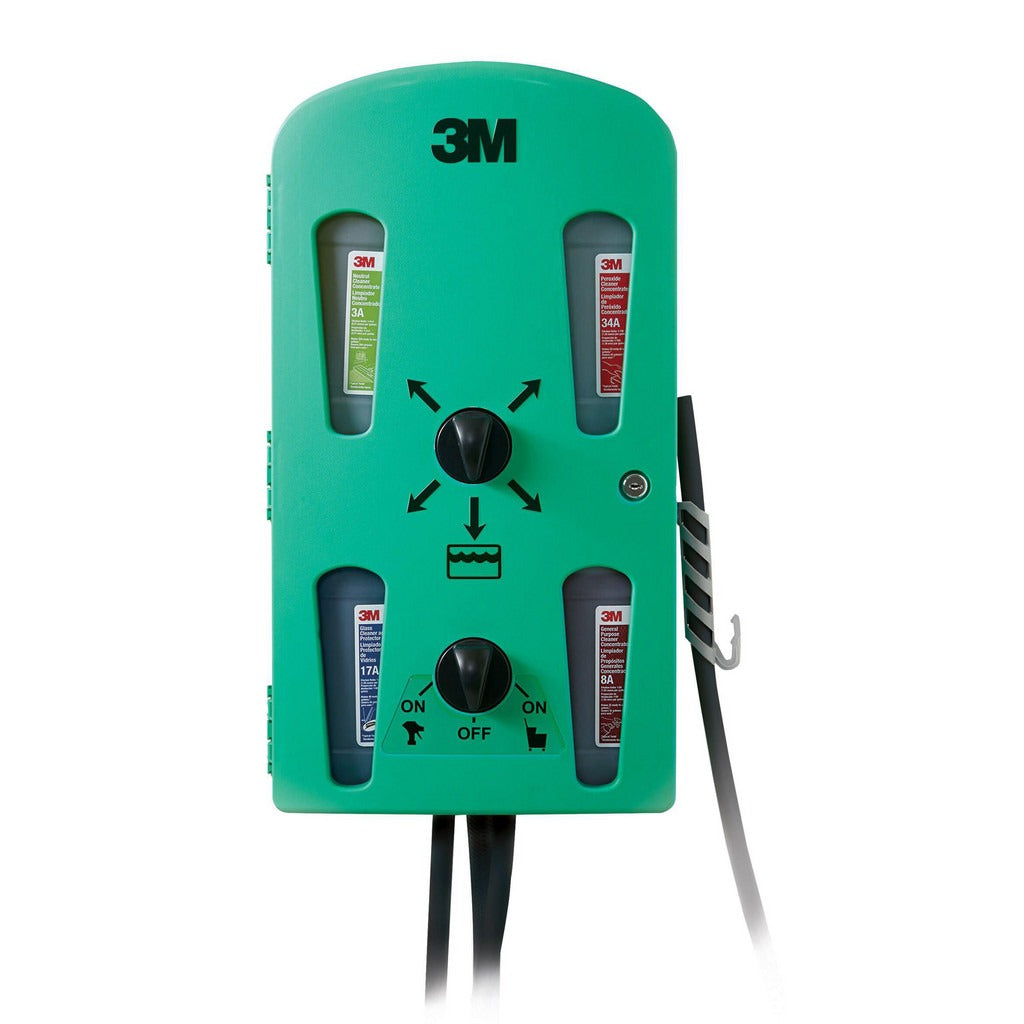

3M 7010385976 Wall Mount Chemical Proportioner 4 Product

Product Description

The 3M 7010385976 is a wall-mount chemical proportioner designed for accurate dilution of cleaning and chemical concentrates in commercial and institutional facilities. Part of the 3M Flow Control System (FCS) series, this unit accommodates up to four separate products and delivers a flow rate of 2 GPM at inlet pressures between 20 and 90 psi. The push-button adjustment mechanism allows service technicians and facility staff to select dilution ratios quickly without tools. The body is constructed of ABS plastic, and connections use NPT push-to-connect inlet fittings with threaded outlet connections. Tested under laboratory conditions, the FCS platform is engineered to deliver consistent concentrate-to-water ratios across the full operating pressure range.

This proportioner is intended for use with 3M Flow Control Concentrates in commercial cleaning applications such as janitorial, food service, and institutional maintenance programs. The wall-mount configuration keeps product off the floor and organizes up to four concentrates at a single dispense station. Each unit ships with the dispenser, instructions, hose attachments, a wall mount template, and attachment screws, so installation does not require sourcing additional hardware. It is suited for use wherever a centralized, high-accuracy chemical dispensing station is needed.

Key Features

• Accommodates up to 4 chemical concentrate products at one station
• 2 GPM flow rate with operating pressure range of 20 to 90 psi
• Push-button dilution adjustment requires no tools
• NPT push-to-connect inlet and threaded outlet connections
• ABS body construction for chemical resistance and durability
• Meets ASSE 1055 standard for performance and backflow protection
• Ships complete with hose attachments, wall mount template, and screws

Compatibility

Designed for use with 3M Flow Control Concentrates. Compatible with bottle-style containers. Confirm concentrate line compatibility with the 3M Flow Control System series before installation.

Installation Notes

Installation is typically performed by a facilities technician or qualified service professional. Shut off the water supply before making inlet connections and verify that line pressure falls within the 20 to 90 psi operating range before startup. NPT fittings should be sealed with appropriate thread tape or compound per local plumbing codes. Mount to a structurally sound wall surface using the included template and attachment screws, ensuring the unit is level and accessible for concentrate bottle changes.
