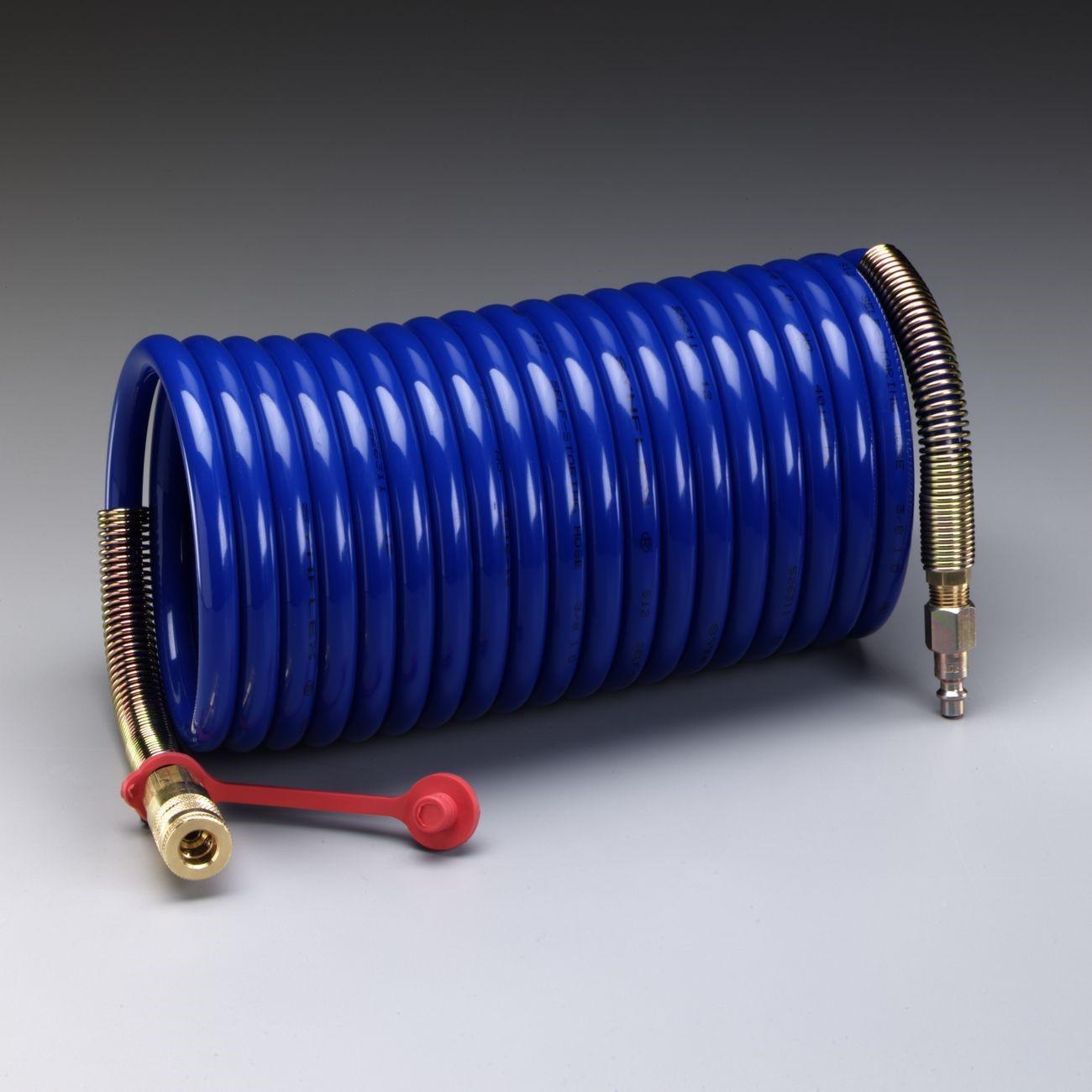

3M 7010385738 Supplied Air Hose 100 Ft 3/8 Inch Id

Product Description

The 3M 7010385738 is a 100-foot supplied air hose designed for use with high pressure compressed air systems in industrial and occupational safety applications. The hose features a 3/8-inch inner diameter and comes fitted with 1/4-inch FPT Schrader fittings at a 1/4-inch body size, allowing direct connection to compatible supplied air respirator systems. Weighing 5.8 pounds, it is sized for single-length deployment in the field. Industrial hygienists, safety officers, and trained technicians typically source and install this hose as part of a compliant supplied air breathing system.

This hose is intended for use with high pressure compressed air delivery systems where workers require a continuous, breathable air supply at distance from a compressor or air source. It is suited for industrial environments including confined space entry, painting operations, abrasive blasting, and hazardous atmosphere work. The coiled design allows for organized storage and deployment, but the hose must be used in single lengths only and cannot be joined or combined with additional hose sections.

Key Features

• 100-foot length provides extended reach from the air source to the work zone
• 3/8-inch inner diameter supports adequate airflow volume for supplied air respirator use
• Includes 1/4-inch FPT Schrader fittings at 1/4-inch body size for secure connection
• Compatible with 3M High Pressure Compressed Air Systems
• Coiled hose format supports organized storage and deployment
• Single-length use only — hose sections cannot be combined or daisy-chained

Compatibility

Designed for use with 3M High Pressure Compressed Air Systems. Coiled hoses must be used in single length only and cannot be combined with additional hose sections.

Installation Notes

Installation and connection of supplied air hose systems should be performed by qualified personnel familiar with OSHA respiratory protection requirements and applicable safety standards. Shut off and depressurize the compressed air supply before attaching or removing hose fittings. Inspect the hose and fittings for damage, kinks, or wear before each use. Do not exceed the pressure rating of the connected system, and never attempt to join this hose with other hose sections.

Technical Specifications

• Hose Length: 100 feet
• Inner Diameter: 3/8 inches
• Fitting Type: Schrader (1/4-inch FPT, 1/4-inch body size)
• Weight: 5.8 pounds
• UPC: 00051131499430

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010385738
