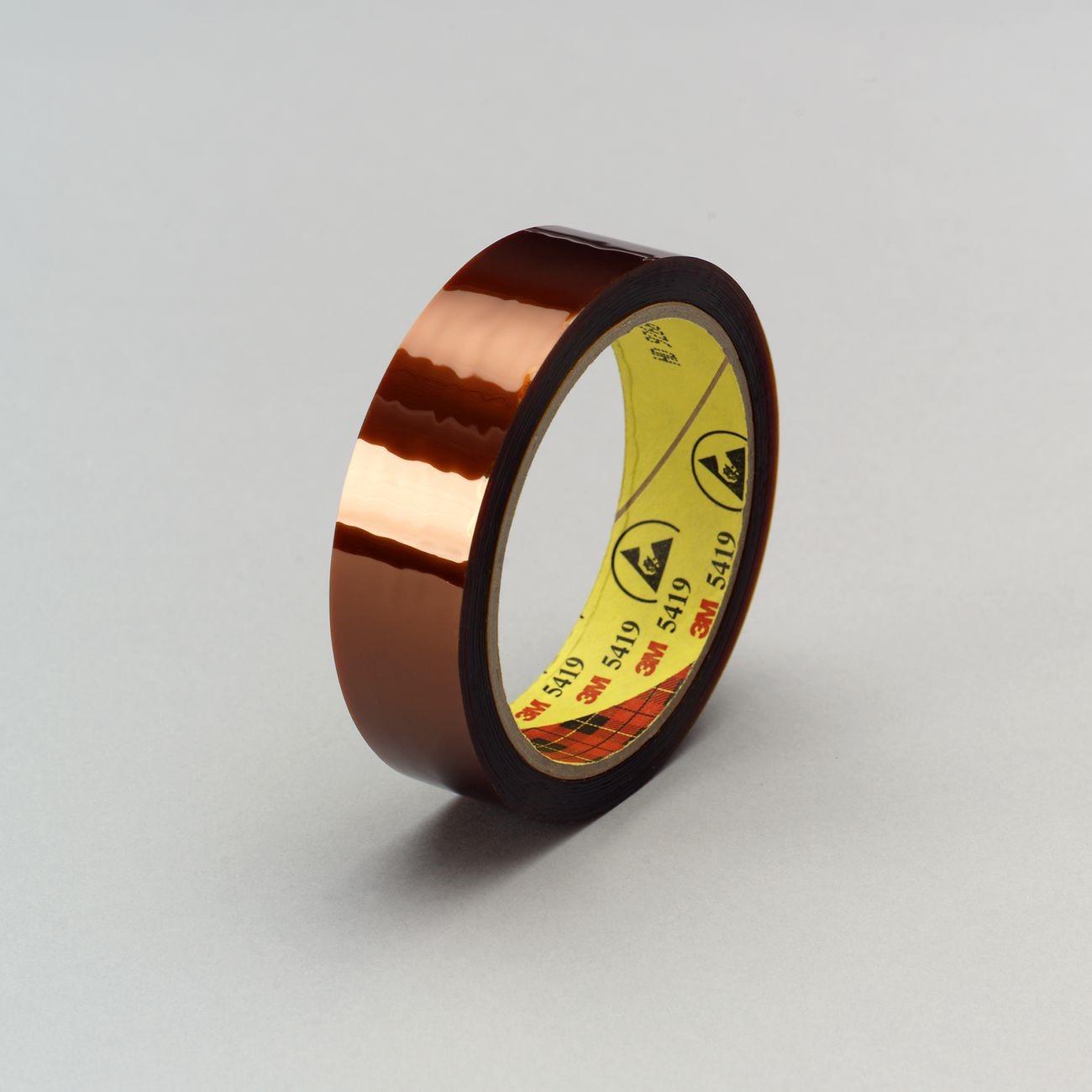

3M 7010380281 Polyimide Film Tape 5419 Gold 7/8 in X 36 Yd

Product Description

The 3M 7010380281 is a low static polyimide film tape sold under the 3M Tape 5419 product line. It features a translucent polyimide film backing coated with a silicone adhesive system engineered for extremely low electrostatic discharge. The tape measures 0.875 inches wide by 36 yards long with a total thickness of 2.7 mil. These properties make it well suited for precision masking applications where static charge buildup could damage sensitive electronic components. Licensed electricians, electronics assembly technicians, and PCB fabrication specialists are the primary installers and users of this tape.

This tape is designed for use in electronics manufacturing and PCB assembly environments. It performs reliably as a masking tape during wave solder and solder dip processes, protecting circuit board areas that must remain free of solder. The tape also serves as a release surface in the fabrication of parts cured at elevated temperatures, making it applicable in composite and specialty manufacturing workflows where high-heat resistance and clean removal are required.

Key Features

• Extremely low electrostatic discharge properties protect static-sensitive electronic components
• Polyimide film backing withstands elevated cure temperatures without adhesive failure
• Silicone adhesive system provides clean removal without leaving residue on PCB surfaces
• 2.7 mil total thickness delivers conformability on board contours while maintaining mask integrity
• Translucent film allows visual inspection of masked areas during assembly
• Packaged as a single roll: 0.875 inches wide by 36 yards long

Compatibility

Designed for use as a masking tape on printed circuit boards during wave solder and solder dip processes, and as a release surface in elevated-temperature part fabrication applications.

Installation Notes

Apply this tape in a clean, static-controlled environment to avoid contaminating PCB surfaces before soldering. Ensure the board surface is free of flux residue, oils, and moisture before application to promote proper adhesion and a clean mask edge. Remove the tape promptly after the solder or cure process is complete and the assembly has cooled to a safe handling temperature. Follow applicable IPC assembly standards and facility ESD protocols when working with static-sensitive boards.

Technical Specifications

• Width: 0.875 inches
• Length: 36 yards
• Thickness: 2.7 mil
• Backing Material: Polyimide film
• Adhesive Type: Silicone
• Color: Gold
• Unit of Measure: Roll
• Weight: 0.68 pounds
• UPC: 00021200301773

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010380281
