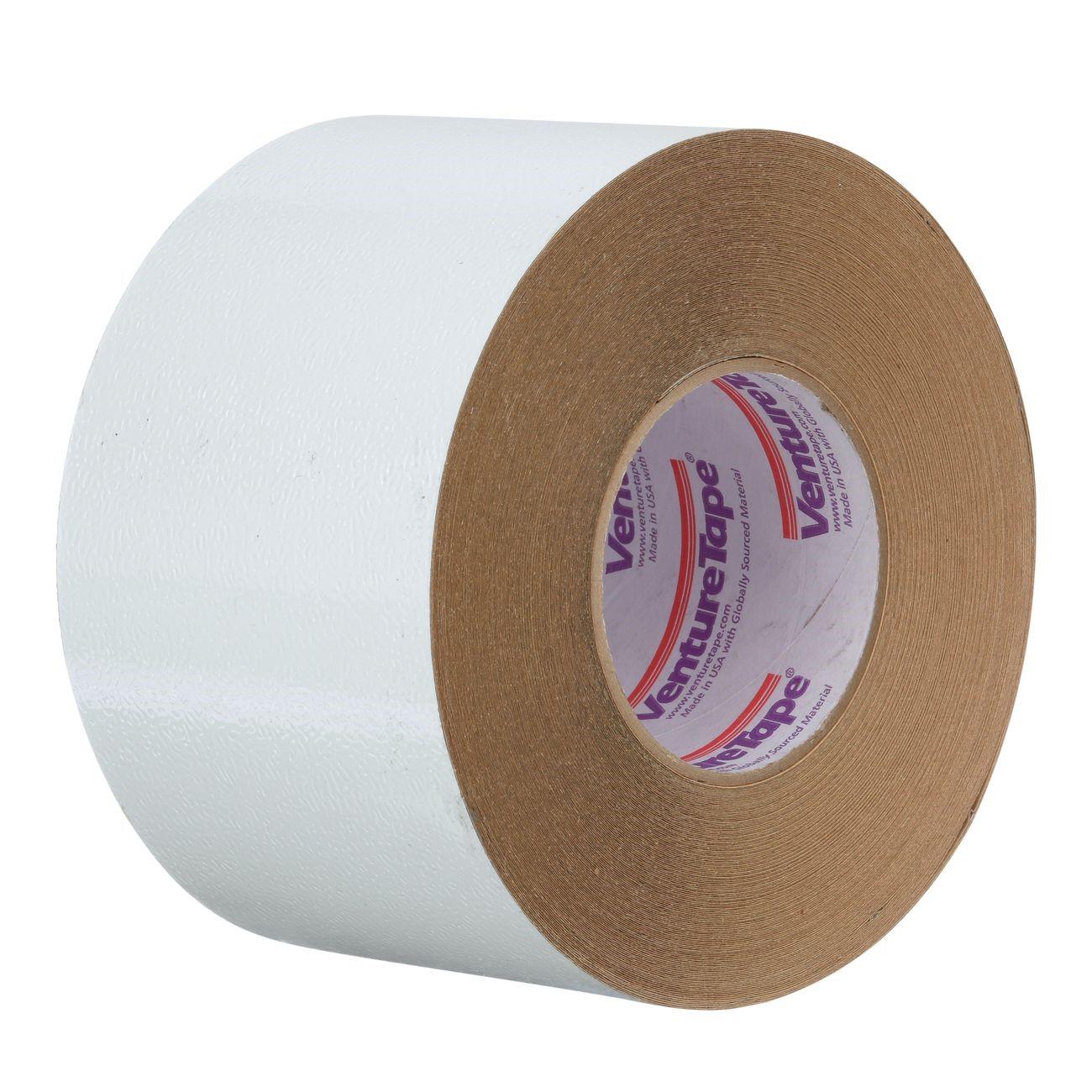

3M 7010376416 Ventureclad 1577CW-WME Foil Tape 4 in 45.72 Yd

Product Description

The 3M 7010376416 is the VentureClad 1577CW-WME Insulation Jacketing Foil Tape, an embossed white aluminum multi-layered laminate tape engineered for all-weather jacketing applications. It delivers zero permeability, functioning as an absolute vapor barrier, and resists weathering, mold, UV exposure, and extreme environmental conditions. The cold-weather acrylic adhesive remains workable at temperatures as low as -10 degrees F, making it suitable for cold-climate installations. Licensed HVAC and mechanical insulation contractors install this tape on pipe and duct insulation jacketing systems where a durable, long-term vapor seal is required.

This tape is suited for residential and commercial mechanical insulation work, including pipe insulation jacketing on HVAC, plumbing, and refrigeration systems. The flexible backing conforms to irregular and curved surfaces, which is useful on fittings and transitions where flat tape would bridge or lift. It meets FDA compositional requirements for indirect food contact, expanding its suitability to food processing and cold-storage facility applications. The 4-inch width and 45.72-yard roll length make it practical for larger jacketing runs.

Key Features

• Zero permeability provides an absolute vapor barrier for sealing and jacketing applications
• Cold-weather acrylic adhesive applies at temperatures as low as -10 degrees F / -23 degrees C
• High puncture and tear resistance for durability in harsh environmental conditions
• Flexible backing conforms to curved and irregular surfaces without bridging
• Meets FDA compositional requirements for indirect food contact
• Qualifies for LEED compliance credit
• 10-year 3M warranty when applied per 3M installation guidelines

Compatibility

Designed for use in insulation jacketing applications on HVAC, plumbing, and refrigeration pipe and duct insulation systems, including installations in food processing and cold-storage environments.

Installation Notes

Installation is typically performed by licensed mechanical insulation or HVAC contractors. Surface should be clean, dry, and free of dust or oil before tape application. Apply per 3M installation guidelines to qualify for the 10-year warranty. No special tools or application equipment are required for on-site cutting and installation.

Technical Specifications

• Color: White
• Width: 4 inches
• Length: 45.72 yards
• Unit of Measure: Roll
• Minimum Order Quantity: 4
• Weight: 19.32 pounds
• Package Dimensions: 13.88 x 13.88 x 4.75 inches
• Adhesive Type: Cold-weather acrylic
• Backing Material: Embossed aluminum multi-layered laminate
• Minimum Application Temperature: -10 degrees F / -23 degrees C
• Warranty: 10 years (when applied per 3M installation guidelines)
• UPC: 076308982824

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010376416
