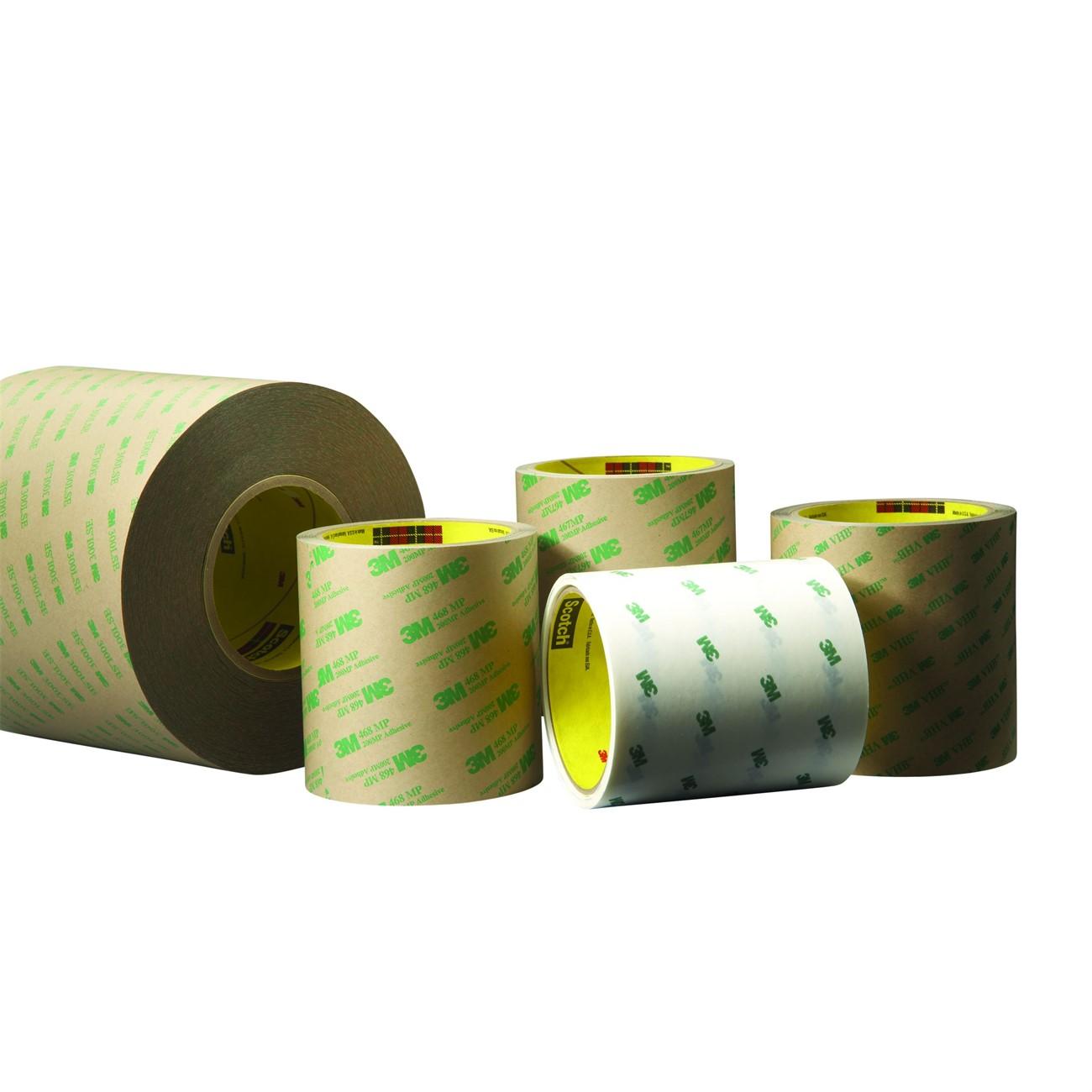

3M 7010374598 Ultra High Temp Adhesive Transfer Tape 2 Mil

Product Description

The 3M 7010374598 is an ultra high temperature adhesive transfer tape designed for demanding bonding applications where heat resistance and bond integrity are critical. At 2 mil (0.05 mm) thick, this transparent, double-sided acrylic tape delivers higher peel strength than most standard acrylic formulations and exceptional shear strength at elevated temperatures. The low outgassing adhesive system maintains performance through short-term exposure up to 540 degrees F (280 degrees C), making it well suited for lead-free solder reflow and similar high-heat processes. It is installed by electronics assemblers, automotive technicians, and industrial maintenance professionals.

This tape is used in electronics manufacturing, automotive assembly, and industrial fabrication where thin-profile, high-strength bonding is required in thermally demanding environments. The transparent film keeps the bond line nearly invisible, which benefits optical, display, and trim applications. The 55 densified kraft white paper release liner is printed for easy identification and clean removal prior to bonding. Its outstanding UV and chemical resistance supports long service life in harsh operating conditions.

Key Features

• Ultra high temperature acrylic adhesive withstands short-term exposure up to 540 degrees F (280 degrees C)
• 2 mil (0.05 mm) thin profile for low-profile, precise bonding applications
• Low outgassing properties suitable for electronics and automotive manufacturing environments
• High peel and shear strength maintains bond integrity under extreme thermal and mechanical stress
• Outstanding UV and chemical resistance for extended service life
• Transparent construction keeps bond lines visually unobtrusive

Compatibility

Designed as an OEM-style adhesive transfer tape for high-temperature bonding applications in electronics, automotive, and industrial assembly environments.

Installation Notes

Surface preparation is critical before applying this tape — clean bonding surfaces thoroughly to remove oils, dust, and contaminants for maximum adhesion. Apply firm, even pressure across the tape surface after positioning to ensure full contact with both substrates. Power down or de-energize any assembly before tape application in live electronic systems. Consult applicable industry standards and safety guidelines when working in high-temperature or soldering environments.

Technical Specifications

• Thickness: 2 mil (0.05 mm)
• Maximum Short-Term Temperature: 540 degrees F (280 degrees C)
• Construction: Transparent, double-sided adhesive transfer tape
• Release Liner: 55 densified kraft white paper with printed logo
• Unit of Measure: Roll
• Package Dimensions: 8.3 x 8.3 x 10.6 inches
• Weight: 0.31 pounds
• UPC: 00048011581491

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010374598
