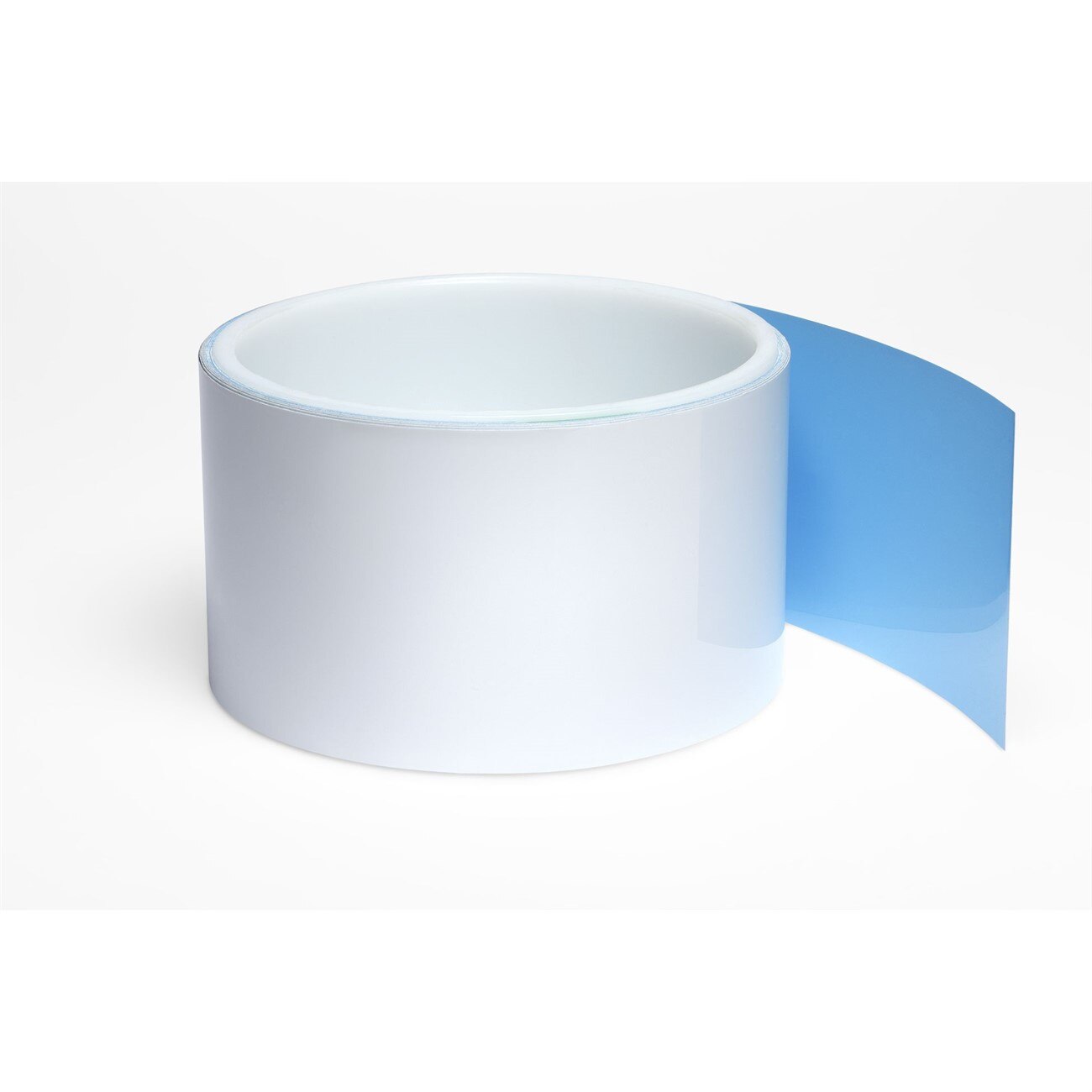

3M 7010374052 Thermally Conductive Adhesive Transfer Tape

Product Description

The 3M 7010374052 is a pressure-sensitive adhesive transfer tape loaded with thermally conductive ceramic fillers, engineered to create a reliable thermal interface between heat-generating components and cooling devices. No heat cure cycle is required — bond formation relies entirely on applied pressure, making installation straightforward. The tape is modestly soft and conformable, allowing it to wet to non-flat and irregular surfaces while maintaining high adhesion strength. It provides both good thermal conductivity and electrical insulation properties, making it suitable for applications where electrical isolation between mating surfaces is required. Installed by electronics technicians, thermal management engineers, and HVAC or industrial equipment assemblers.

This tape is designed for use in thermal management assemblies where a preferential heat-transfer path is needed between heat-generating components such as power electronics, circuit boards, or processors and their associated heat sinks, heat spreaders, fans, or heat pipes. The conformable adhesive matrix allows it to bridge minor surface irregularities, improving contact area and overall thermal interface performance. It is supplied as a roll measuring 14 inches wide by 36 yards long, suited to production or field-service applications requiring a consistent thermal bonding layer.

Key Features

• Pressure-sensitive bond formation — no heat cure cycle required
• Thermally conductive ceramic fillers provide a defined heat-transfer path
• Electrically insulating construction isolates mating surfaces
• Conformable, soft adhesive wets to non-flat and irregular substrates
• Suitable for bonding heat sinks, heat spreaders, fans, and heat pipes to heat-generating components
• Roll format at 14 inches x 36 yards supports both production runs and service applications

Compatibility

Designed as a pressure-sensitive thermally conductive adhesive transfer tape for use with heat-generating components and cooling devices across industrial, electronics, and HVAC thermal management assemblies.

Installation Notes

De-energize and allow all heat-generating components to cool completely before applying the tape. Clean mating surfaces to remove oils, dust, and contaminants prior to application to ensure full adhesive contact. Apply firm, even pressure across the bonded area to activate the adhesive and establish the thermal interface. Follow applicable facility safety and equipment manufacturer procedures when working with powered electronics or thermal management systems.

Technical Specifications

• Size: 14 inches x 36 yards
• Form Factor: Roll
• Bond Method: Pressure-sensitive, no heat cure required
• Thermal Interface: Ceramic-filled conductive adhesive
• Electrical Property: Electrically insulating
• Weight: 20 pounds
• Minimum Order Quantity: 1
• UPC: 00021200561443

Standard Information

• Brand: 3M
• Manufacturer Part Number: 7010374052
